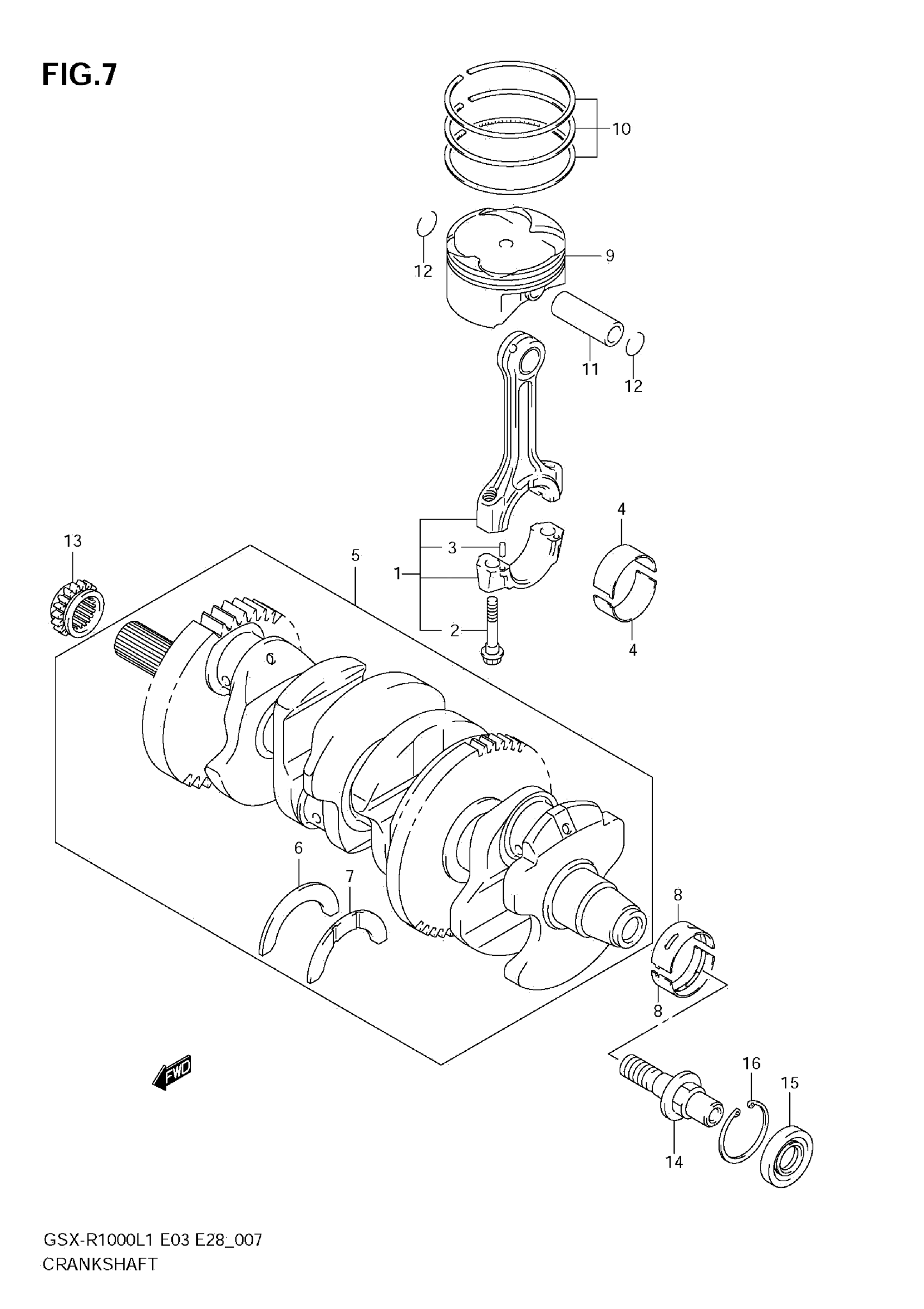

Suzuki GSX-R1000L1 (2011) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING

12160-47H00

$269.83

2

.BOLT,CONNECTING ROD

12163-24F10

$16.45

3

PIN, CONNROD

12165-27A50

$1.54

4

BEARING, CRANK PIN This part replaces 12164-47H00-0A0.

12164-47H10-0A0

$12.00

4

BEARING, CRANK PIN This part replaces 12164-47H00-0B0.

12164-47H10-0B0

$12.00

4

BEARING, CRANK PIN This part replaces 12164-47H00-0C0.

12164-47H10-0C0

$12.00

4

BEARING, CRANK PIN This part replaces 12164-47H00-0D0.

12164-47H10-0D0

$12.44

5

CRANKSHAFT SET

12000-47850

$1,948.82

6

BEARING, THRUST RH (GREEN)

12228-48B00-0E0

$9.34

7

BEARING, THRUST LH (BROWN)

12228-48B00-0B0

$11.57

7

BEARING, THRUST LH (RED)

12228-48B00-0C0

$11.35

7

BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

$11.78

7

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$9.34

7

BEARING, THRUST LH (BLUE)

12228-48B00-0F0

$11.78

7

BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

$11.78

7

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.66

8

BEARING, CRANKSHAFT (GREEN)

12229-47H10-0A0

$21.83

8

BEARING, CRANKSHAFT (BLACK)

12229-47H10-0B0

$21.83

8

BEARING, CRANKSHAFT (BROWN)

12229-47H10-0C0

$21.42

8

BEARING, CRANKSHAFT (YELLOW)

12229-47H10-0D0

$18.90

8

BEARING, CRANKSHAFT (BLUE)

12229-47H10-0E0

$22.23

9

PISTON

12111-47H10-0F0

$235.75

10

RING SET, PISTON

12140-47H00

$116.65

11

PIN,PISTON

12151-41G00

$14.90

12

CIRCLIP

09381-15001

$1.49

13

SPROCKET, CAM CHAIN

12731-47H00

$114.97

14

BOLT, GENERATOR ROTOR

12224-47H00

$60.77

15

OIL SEAL (14X30X8)

09282-14007

$45.33

16

CIRCLIP This part replaces 08331-4132A.

08331-41329

$2.42
