Description

Price

1

WASHER (25X54X2.4)

09160-25073

$14.50

2

BEARING (35X40X26.8)

09263-35015

$27.95

3

GEAR ASSY, PRIMARY DRIVEN

21200-47810

$523.65

4

SPACER, OIL PUMP DRIVE

21253-01H10

$41.45

5

BEARING (35X40X12)

09263-35045

$22.75

6

HUB, CLUTCH SLEEVE

21410-41G40

$233.37

7

SPRING, CLUTCH

21413-47H00

$9.90

8

WASHER, CLUTCH SPRING

21414-29F00

$6.25

9

PLATE, CLUTCH DRIVE NO.1

21441-42F20

$28.07

10

PLATE, CLUTCH DRIVE NO.2

21442-42F10

$33.17

11

PLATE, CLUTCH DRIVEN NO.1

21451-47H00

$17.28

12

PLATE, CLUTCH DRIVEN NO.2

21451-47H10

$16.10

13

PLATE, CLUTCH DRIVEN NO.3

21451-47H20

$17.28

14

DISC, CLUTCH PRESSURE

21462-41G10

$79.68

15

SEAT,WAVE WASHER

21471-02F20

$17.37

16

WASHER,CLUTCH PLATE WAVE

21472-02F20

$24.95

17

BOLT, CLUTCH SPRING

21482-41G10

$3.26

18

CAM,CLUTCH DRIVE

21611-41G20

$141.12

19

CAM,CLUTCH DRIVEN

21612-41G20

$119.18

20

WASHER,CAM REACTION WAVE

21621-41G00

$14.82

21

WASHER, CAM REACTION SEAT

21624-41G20

$15.53

22

LIFTER, CLUTCH PRESSURE DISK

21622-41G10

$11.97

23

NUT, CL PRESS DISC LIFT LOCK

21623-41G00

$2.61

24

SHIM (8.8X14X1)

09181-08139

$1.91

25

NUT

09159-24010

$13.22

26

.WASHER (25X50X2.5)

09160-25056

$11.61

27

WASHER (25X41X2.5)

09160-25077

$10.48

28

WASHER

09164-24008

$4.60

29

ROD, CLUTCH

23110-27A00

$21.09

30

ROD, CLUTCH PUSH, L

23111-47H00

$19.38

31

PIECE, CLUTCH PUSH

23121-41G20

Unavailable

32

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$56.90

33

CAP, CLUTCH PUSH ROD

23123-41G00

$10.93

34

SPRING, CLUTCH RELEASE RETURN

23125-41G00

$3.25

35

ARM, CLUTCH RELEASE

23271-41G31

$57.07

36

BOLT (6X20)

09103-06223

$2.47

37

SCREW (6X73)

09134-06015

$6.88

38

WASHER (10.5X24X1)

09160-10020

$2.05

39

WASHER (15.5X28X1)

09160-15045

$3.89

40

BEARING (15X28X2)

09263-15003

$8.29

41

BEARING (10X14X10)

09263-10014

$13.52

42

BEARING (12X18X12)

09263-12027

$7.31

43

OIL SEAL (10X20X6)

09282-10012

$7.98

44

OIL SEAL (6X34X10.5)

09283-06010

$16.80

45

OIL SEAL (10X17X5)

09285-10004

$3.37

46

NUT

08310-0006A

$1.84

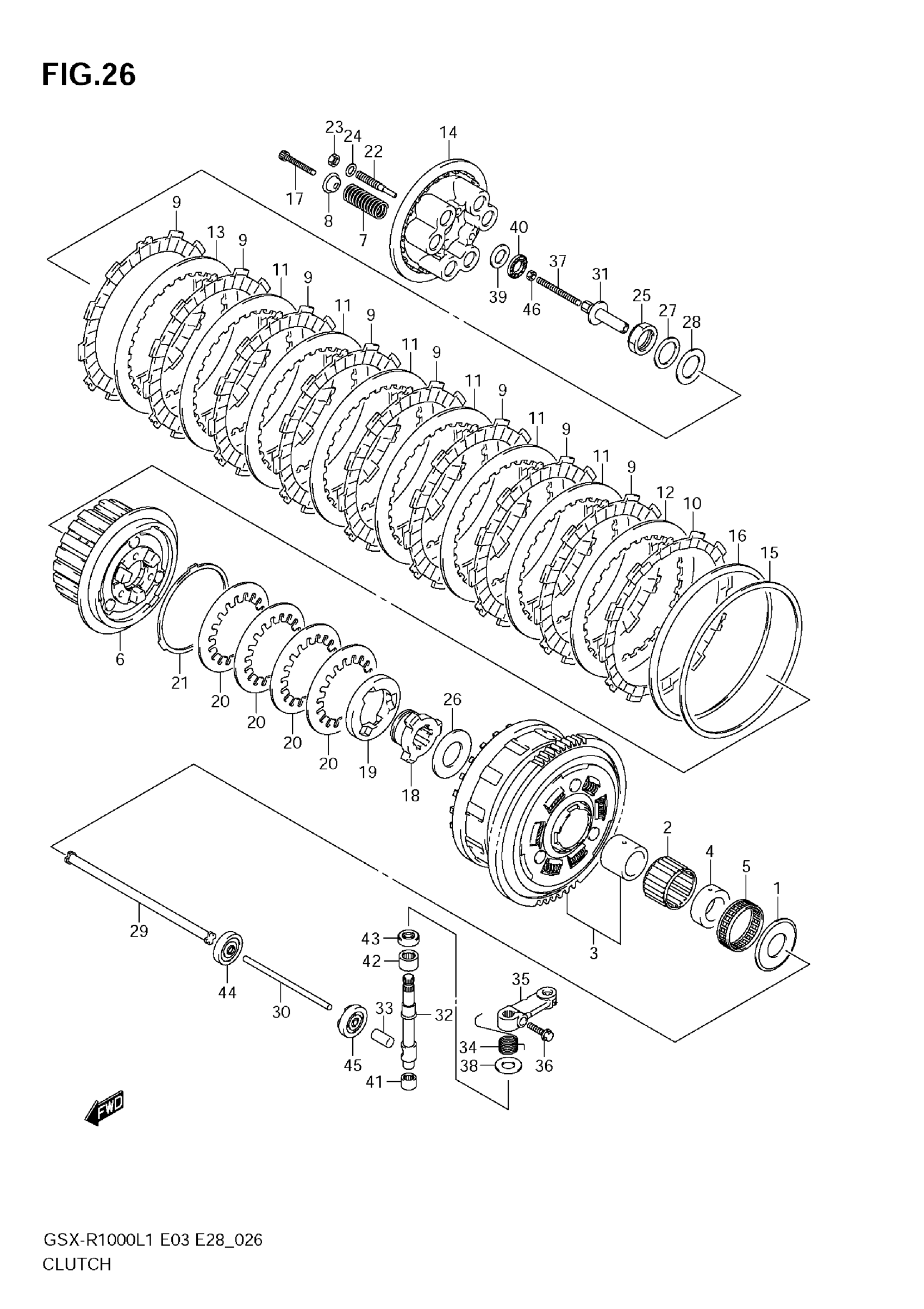

Suzuki GSX-R1000L1 (2011) CLUTCH Diagram
