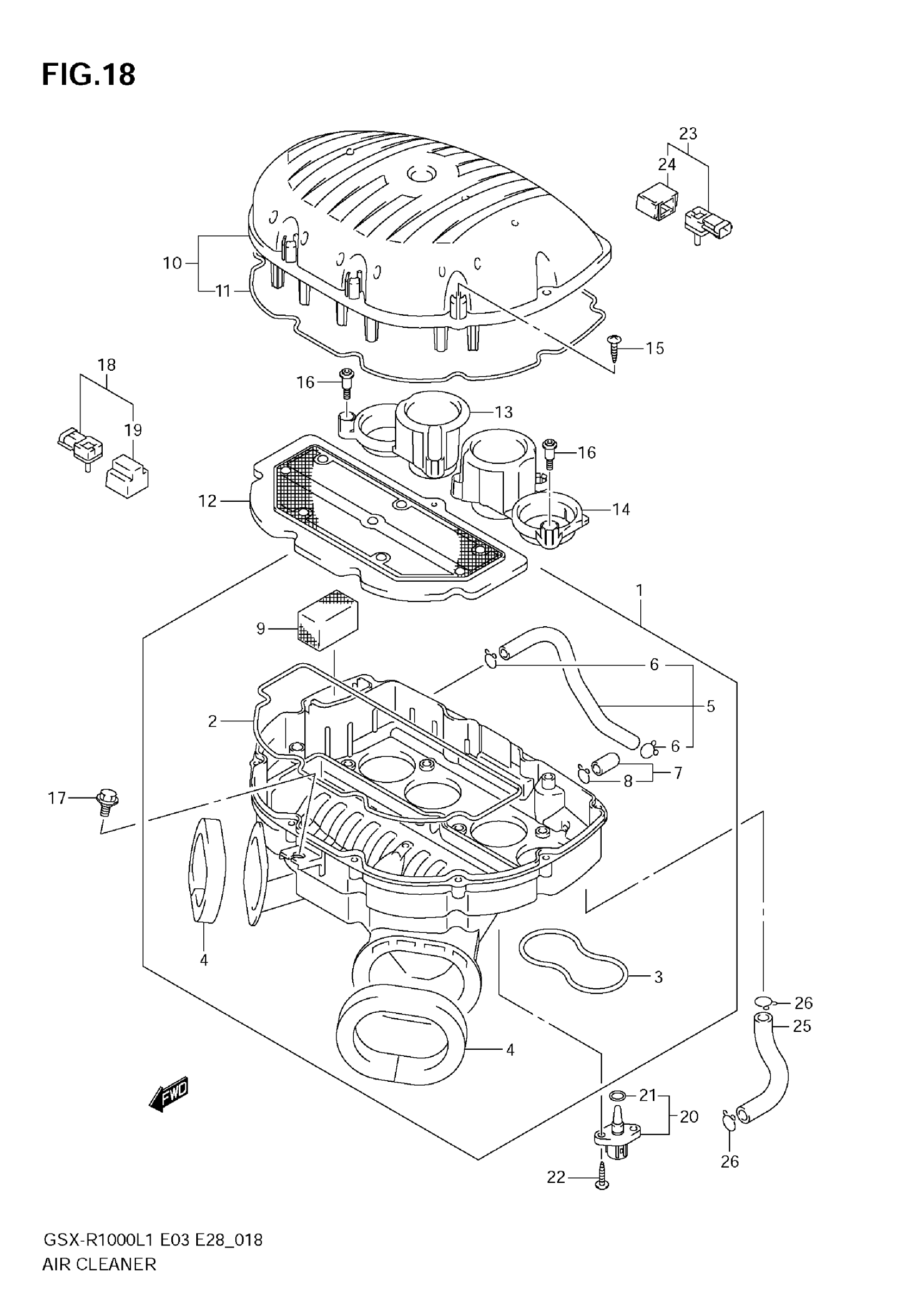

Suzuki GSX-R1000L1 (2011) AIR CLEANER Diagram

#

Description
Price

1

CASE,AIR CLEANE This part replaces 13720-47H00.

13720-47H02

$149.70

2

GASKET, CASE

13756-47H00

$6.05

3

GASKET, CASE

13757-47H00

$4.27

4

CUSHION, DUCT

13736-01H00

$9.78

5

TUBE,BREATHER This part replaces 13850-47H00.

13850-47H01

$23.40

6

CLIP

09401-14101

$2.34

7

PLUG ASSY, DRAIN

13856-19B03

$10.95

8

CLIP

09401-14101

$2.34

9

FILTER, BREATHER

13788-47H00

$5.64

10

CAP, AIR CLEANER

13740-47H00

Unavailable

11

GASKET, CAP

13746-47H00

$8.12

12

FILTER ASSY

13780-47H00

$51.28

13

FUNNEL, OUTLET RH

13881-47H00

Unavailable

14

FUNNEL, OUTLET LH

13882-47H00

Unavailable

15

SCREW

03541-0525B

$2.32

16

BOLT

13831-47H00

$8.44

17

BOLT (6X16)

09111-06089

$2.62

18

SENSOR, BOOST

15630-29G20

$283.88

19

COVER

15625-29G10

Unavailable

20

SENSOR, AIR TEMP This part replaces 13650-14G11.

13650-14G10

$52.06

21

O RING

13655-14G10

$9.90

22

BOLT

03511-0516A

$1.86

23

SENSOR, AIR PRESSURE

15630-29G10

$273.45

24

COVER

15625-29G00

$12.40

25

HOSE, ISC VALVE

13697-47H00

Unavailable

26

CLIP

09401-15101

$2.26
