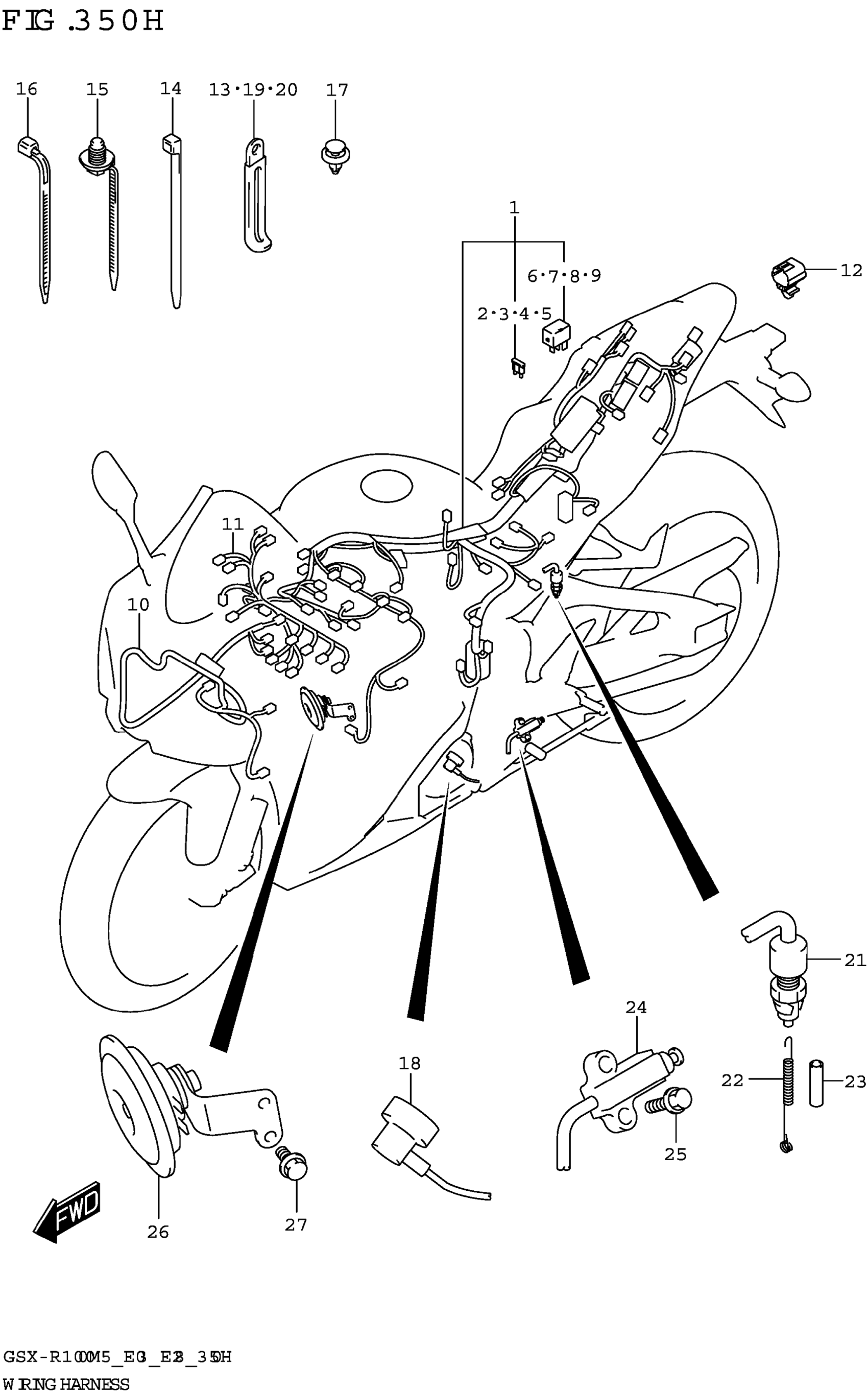

Suzuki GSX-R1000AM5 (2025) WIRING HARNESS (GSX-R1000A:E33) Diagram

#

Description
Price

1

HARNESS,WIRING NO.1

36610-17KH0

$898.20

2

.FUSE (7.5A)

09481-07504

$1.28

3

.FUSE (10A)

09481-10504

$2.04

4

.FUSE (15A)

09481-15504

$2.57

5

.FUSE (30A)

09481-30504

$1.99

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$31.02

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$31.02

8

.RELAY ASSY | SIDE STAND

38860-76F01

$31.02

9

.RELAY ASSY | HEADLAMP

38860-76F01

$31.02

10

HARNESS,WIRING NO.2

36620-17K20

$265.62

11

HARNESS,WIRING NO.3

36630-17K11

$182.72

12

CAP,TS

36654-06J31

$16.40

13

CLAMP (L:45)

09404-06429

$1.82

14

CLAMP (L:145)

09407-14407

$2.80

15

CLAMP (L:170)

09407-17403

$4.63

16

CLAMP (L:125)

09407-14403

$2.24

17

CLIP

09409-06328

$2.92

18

WIRE,OIL PRESSURE SWITCH LEAD

36851-17K00

Unavailable

19

CLAMP (L:45)

09404-06429

$1.82

20

CLAMP (L:80)

09404-06030

Unavailable

21

SWITCH ASSY,STOP LAMP

37740-17K00

$28.63

22

SPRING

43232-17K00

$3.82

23

HOSE (5X8.2X60)

09352-50005-060

Unavailable

24

SWITCH ASSY,SIDE STAND

37840-35F02

$45.34

25

BOLT (6X20)

01550-0620A

$1.97

26

HORN ASSY

38500-17K00

$75.55

27

BOLT

01550-0612A

$1.97
