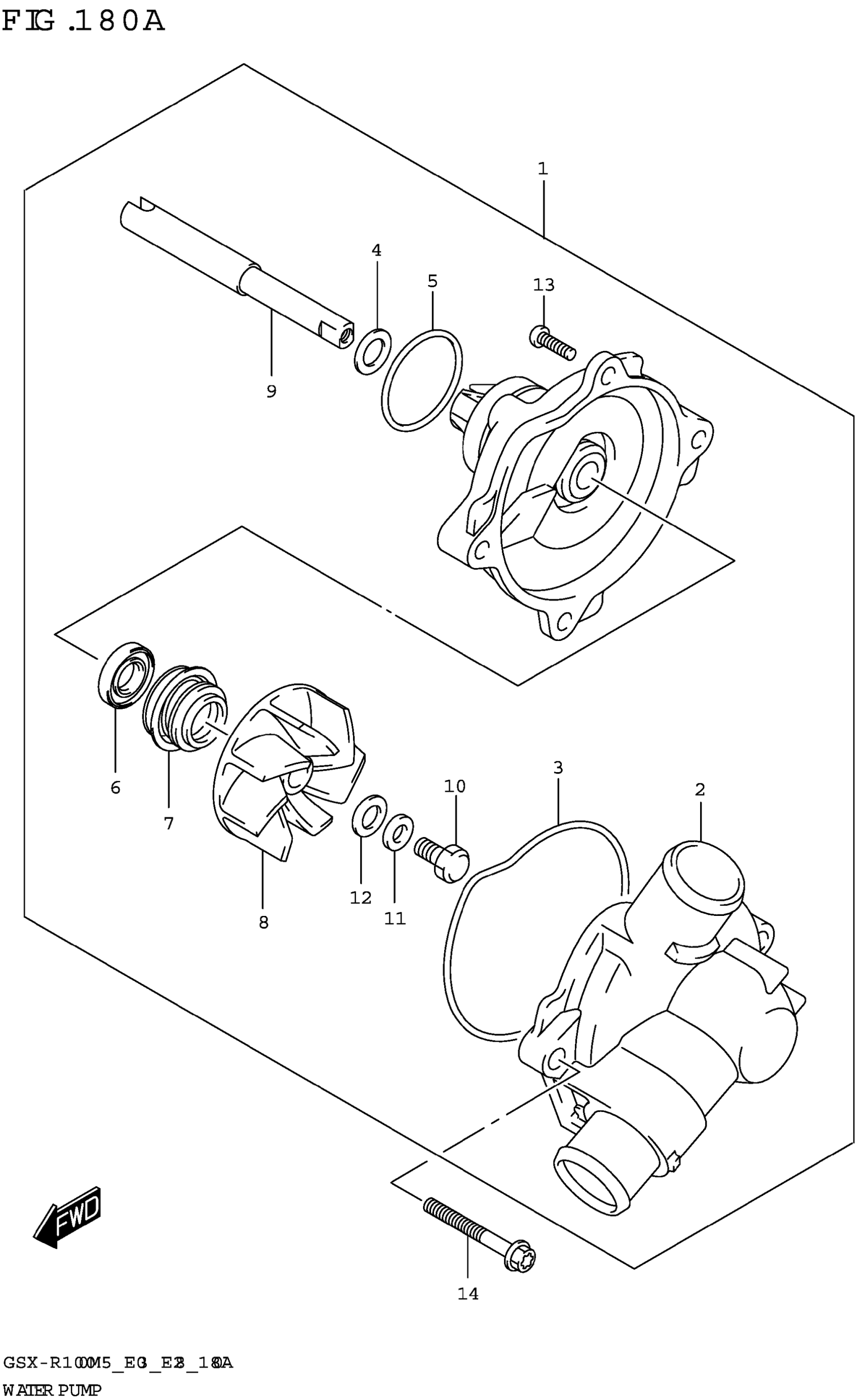

Suzuki GSX-R1000AM5 (2025) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER

17400-17K01

$302.52

2

.CASE

17410-17K00

$188.60

3

.O-RING

17418-33401

$4.28

4

.WASHER

17432-07G00

$2.74

5

.O-RING

17435-33400

$14.63

6

.SEAL,OIL

17461-01H00

$16.83

7

.SEAL,MECHANICAL

17470-02F11

$27.96

8

.IMPELLER

17491-17K00

$38.27

9

.SHAFT

17511-47H00

$56.82

10

.BOLT (6X13)

09100-06099

$2.08

11

.WASHER

09164-06006

$2.66

12

.GASKET (6X15X2.2)

09168-06025

$2.80

13

.SCREW

02112-0616A

$1.46

14

BOLT (L:35)

09103-06530

$1.68
