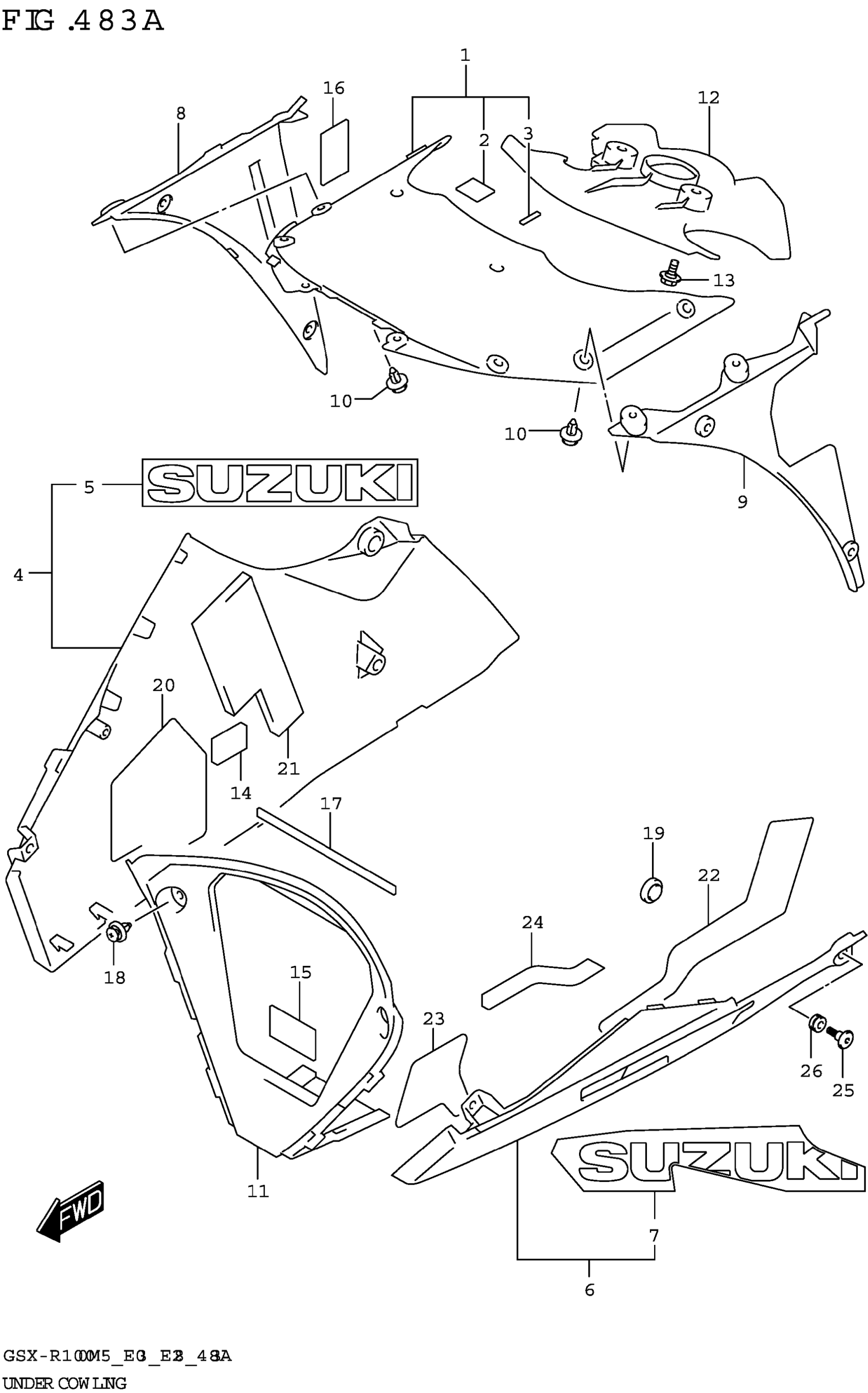

Suzuki GSX-R1000AM5 (2025) UNDER COWLING (GSX-R1000A) Diagram

#

Description
Price

1

COVER,BODY COWL

94620-17K00

$32.63

2

.COVER (30X45X2)

36930-60A10

$2.80

3

TAPE (6X25X0.13)

94443-06G00

$2.97

4-1

COWLING,UNDER,R (SILVER) | BODY COLOR:QKA

94400-17K00-QKA

$113.92

4-2

COWLING,UNDER,R (BLACK) | BODY COLOR:AV4

94400-17K00-ARX

$131.40

5-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:QKA

68181-47HA1-019

$36.50

5-2

.EMBLEM,"SUZUKI" (GRAY) | BODY COLOR:AV4

68181-47HA1-QEB

Unavailable

6-1

COWLING,UNDER,L (SILVER) | BODY COLOR:QKA

94500-17K00-QKA

$113.92

6-2

COWLING,UNDER,L (BLACK) | BODY COLOR:AV4

94500-17K00-ARX

$131.40

7-1

.EMBLEM,"SUZUKI" | BODY COLOR:QKA

68191-17K00-C34

Unavailable

7-2

.EMBLEM,"SUZUKI" (GRAY,BLACK) | BODY COLOR:AV4

68191-17K00-BD7

Unavailable

8

COWLING,UNDER INNER,R

94461-17K00

$17.57

9

COWLING,UNDER INNER,L

94462-17K00

$17.57

10

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

11

COWLING,UNDER CTR

94491-17K00

$26.79

12

COVER,LWR BRACKET

94458-17K00

$15.63

13

BOLT (6X12)

09111-06107

$2.66

14

PROTECTOR,BATTERY (30X40X1.0)

33652-13G00

$4.05

15

PROTECTOR (20X50X8)

33652-35400

Unavailable

16

.COVER (30X45X2)

36930-60A10

$2.80

17

CUSHION,FRAME COVER (L:130)

47121-31J00

$3.10

18

CLIP

94479-35F00

$5.14

19

CUSHION

09321-10018

$4.19

20

SHIELD,UNDER COWL HEAT,R

94476-17K00

$5.05

21

CUSHION,SIDE REAR,R NO.2

94477-17K10

$4.63

22

SHIELD,UNDER COWL HEAT,L

94486-17K00

$3.77

23

SHIELD,UNDER COWL HEAT,L NO.2

94486-17K10

$2.80

24

CUSHION,SIDE REAR,L NO.2

94487-17K10

$2.95

25

SCREW (6X20)

09139-06206

$2.99

26

CUSHION (9X18X9.5)

09320-09016

$1.97
