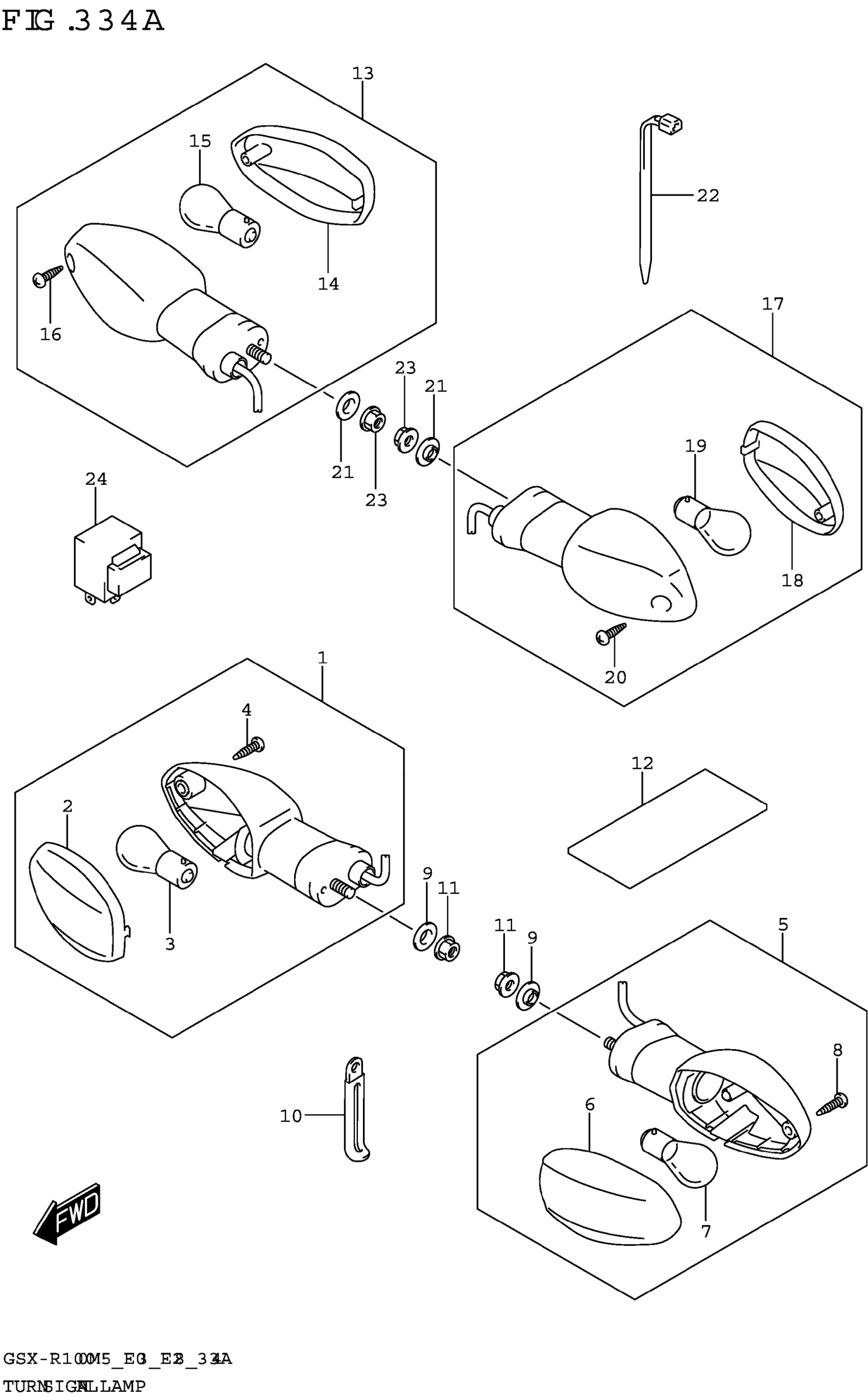

Suzuki GSX-R1000AM5 (2025) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL RH

35601-17K00

$115.80

2

.LENS

35612-17K00

$27.45

3

.BULB (12V21W)

09471-12045

$3.27

4

.SCREW

03211-0416B

Unavailable

5

LAMP ASSY,FRONT TURNSIGNAL LH

35602-17K00

$115.80

6

.LENS

35632-17K00

$27.45

7

.BULB (12V21W)

09471-12045

$3.27

8

.SCREW

03211-0416B

Unavailable

9

WASHER

09169-06076

$3.05

10

CLAMP (L:45)

09404-06429

$1.83

11

NUT (6X12)

08316-1006A

$2.19

12

CUSHION (45X100X3)

33652-17K10

$3.88

13

LAMP ASSY,REAR TURNSIGNAL RH

35603-17K00

$120.23

14

.LENS

35612-17K00

$27.45

15

.BULB (12V21W)

09471-12045

$3.27

16

.SCREW

03211-0416B

Unavailable

17

LAMP ASSY,REAR TURNSIGNAL LH

35604-17K00

$115.80

18

.LENS

35632-17K00

$27.45

19

.BULB (12V21W)

09471-12045

$3.27

20

.SCREW

03211-0416B

Unavailable

21

WASHER

09169-06076

$3.05

22

CLAMP (L:125)

09407-14403

$2.26

23

NUT (6X12)

08316-1006A

$2.19

24

RELAY ASSY,TURNSIGNAL LAMP

38610-06F01

$82.18
