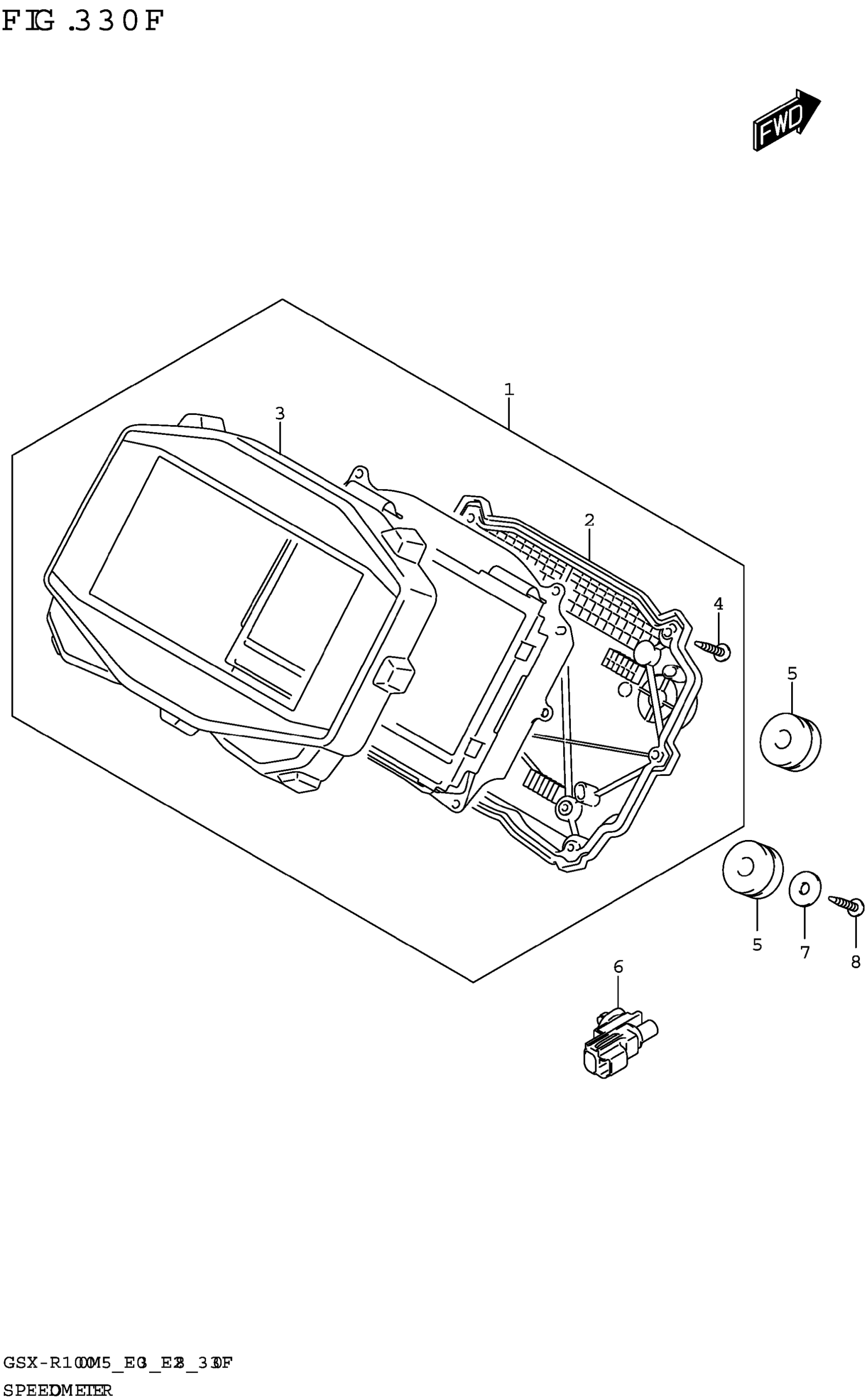

Suzuki GSX-R1000AM5 (2025) SPEEDOMETER ((GSX-R1000RA,GSX-R1000RZA):E28) Diagram

#

Description

Price

1

SPEEDOMETER ASSY

34100-17KB2-999

Unavailable

2

.CASE ASSY,LOWER

34111-17K00

$77.55

3

.CASE ASSY,UPPER

34150-17K10-999

$97.64

4

SCREW

34183-10C00

$2.19

5

CUSHION,SPEEDOMETER

34189-08J01

$3.38

6

SENSOR,AIR TEMP

95643-58J00

$57.00

7

WASHER (4.5X16X1.2)

09160-04026

$1.86

8

SCREW

03541-0416A

$1.43
