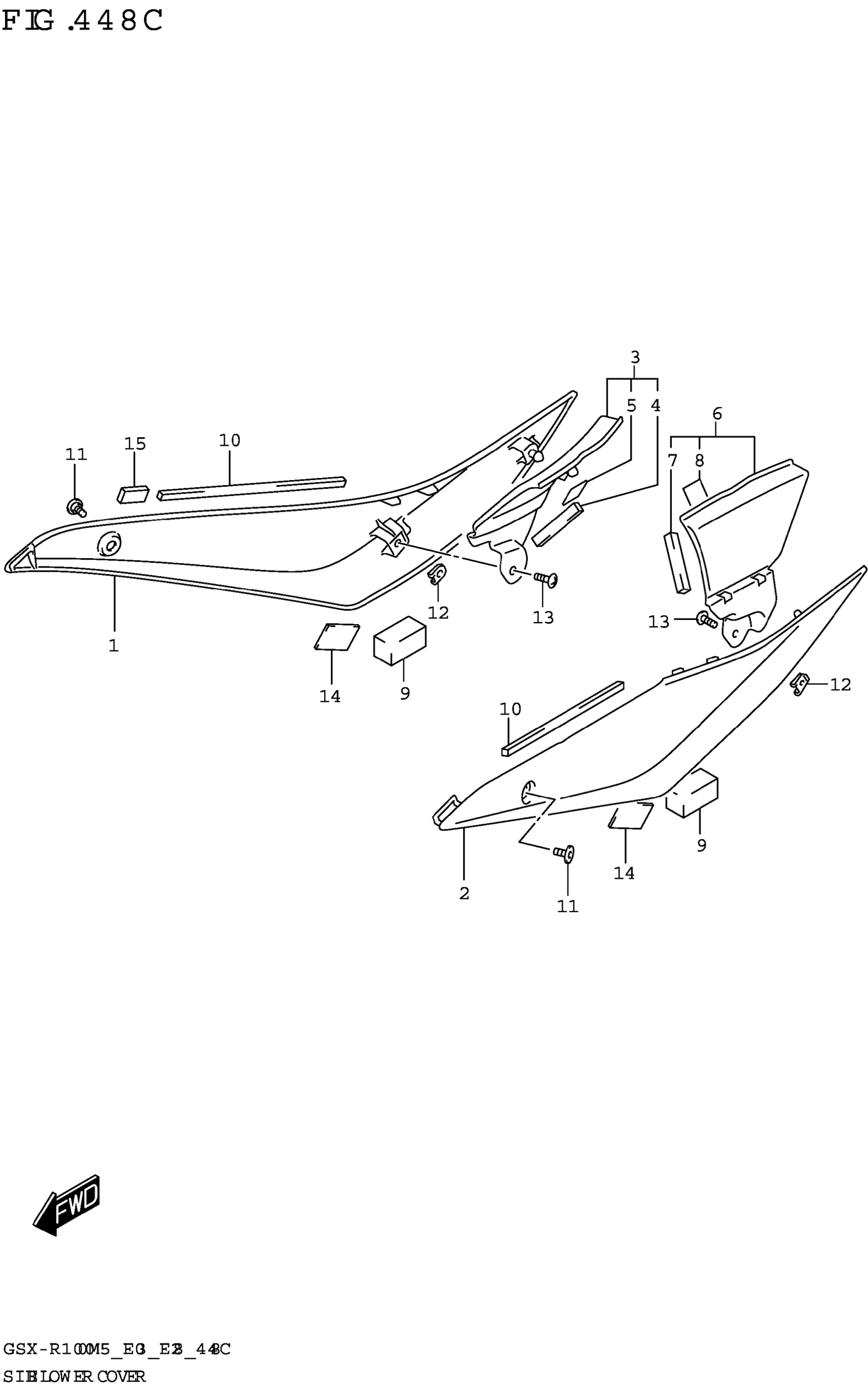

Suzuki GSX-R1000AM5 (2025) SIDE LOWER COVER (GSX-R1000RZA) Diagram

#

Description

Price

1

COVER,FRAME FRONT,R

47511-17K01

$44.08

2

COVER,FRAME FRONT,L

47611-17K01

$45.77

3

COVER,FRAME FR NO.2,R (BLUE)

47710-17K00-YSF

$90.32

4

CUSHION (8X50X8)

47122-17K00

$2.00

5

.CUSHION (20X20X1)

47123-17K00

$3.92

6

COVER,FRAME FR NO.2,L (BLUE)

47810-17K00-YSF

$49.68

7

CUSHION (8X50X8)

47122-17K00

$2.00

8

.CUSHION (20X20X1)

47123-17K00

$3.92

9

CUSHION,RR COMB (20X40X20)

33652-38F20

$2.71

10

CUSHION,FRAME COVER UPPER (L: | 70)

47121-17K00

$2.80

11

SCREW (5X13)

09139-05092

$2.22

12

NUT (M5)

09148-05045

$2.51

13

SCREW

03541-0516A

$1.37

14

FASTENER (33X25X2.6)

44572-13G00

$10.13

15

CUSHION (10X30X6)

33652-47F00

$3.38
