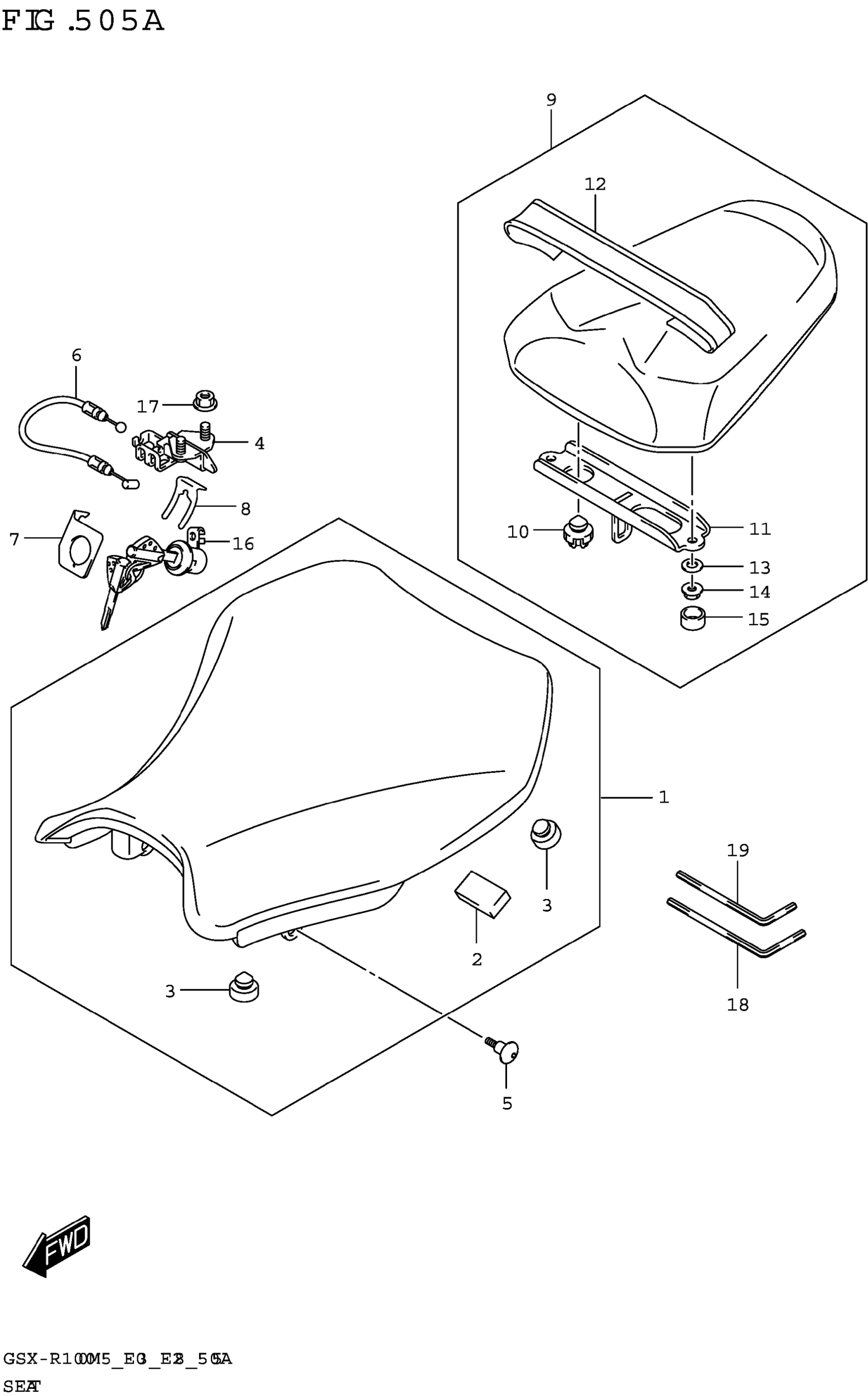

Suzuki GSX-R1000AM5 (2025) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-17K03-W05

$327.85

2

.CUSHION

45149-37H00

$7.77

3

.CUSHION (11.5X22X20)

09321-10002

$2.02

4

BRACKET,STRIKER SUPPORT

45220-04K20

$35.98

5

BOLT,SEAT (6X20)

45241-17K00

$3.07

6

CABLE,SEAT LOCK

45280-17K00

$17.33

7

GUIDE,SEAT LOCK CABLE

45288-14F30

$7.20

8

PLATE,SEAT LOCK ASSY

45289-11F00

$5.67

9

SEAT ASSY,PILLION (BLACK)

45300-17K02-W05

$243.23

10

.CUSHION

45148-20G90

$6.28

11

.STRIKER,SEAT LOCK

45290-17K00

$43.82

12

.BAND,PILLION SEAT GRIP (BLAC | )

45380-17K01-W05

$20.17

13

WASHER (6.5X14X2.0)

09160-06126

$1.92

14

NUT (6X12)

08316-1006A

$2.19

15

CAP (OD:13.6)

09251-09008

$4.48

16

LOCK SET,SEAT

95700-14810

$98.21

17

NUT (6X12)

08316-1006A

$2.19

18

SPANNER,HEXAGON (5)

96514-17K00

$5.38

19

SPANNER,HEXAGON (4)

96514-17K10

$3.72
