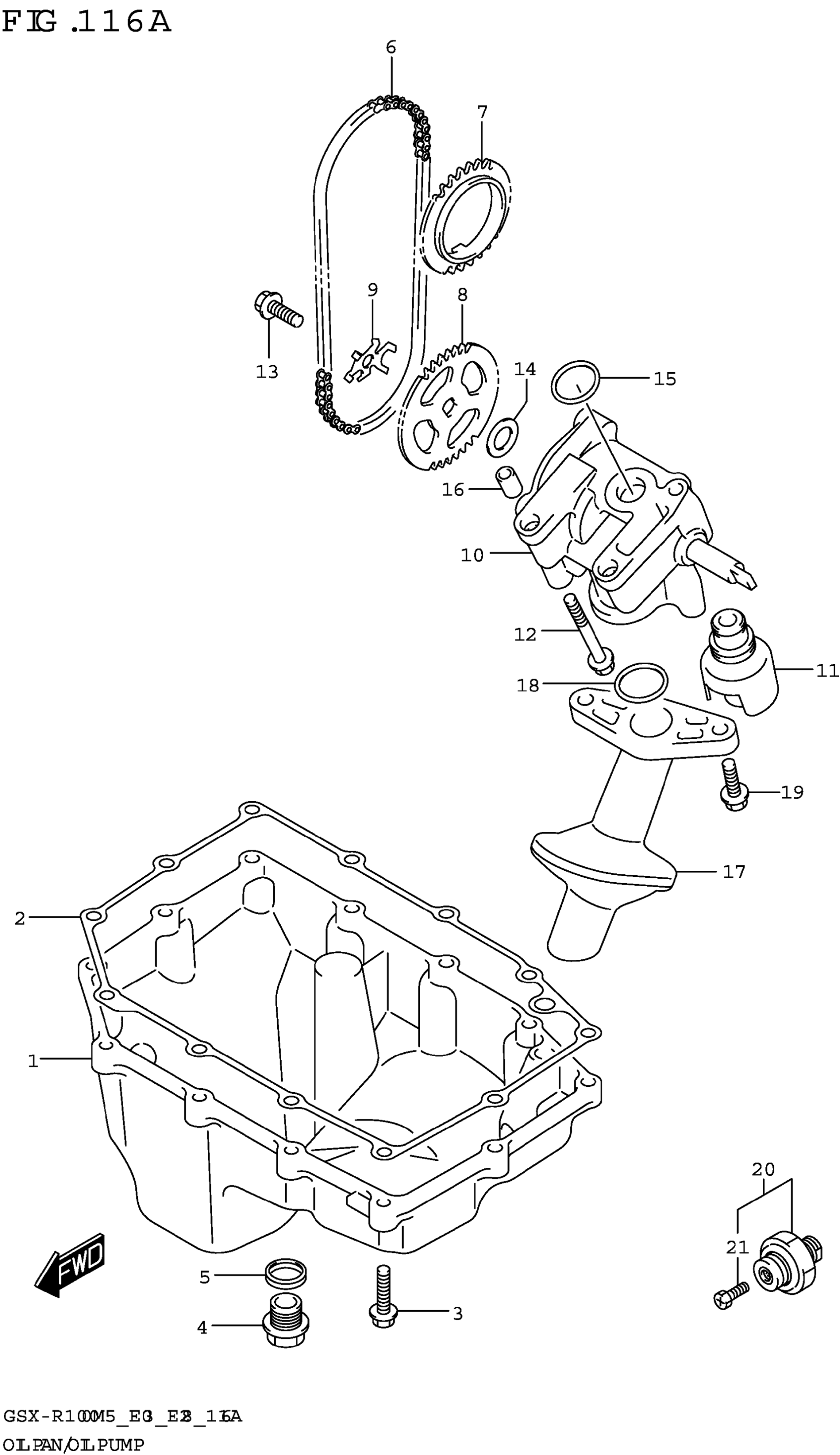

Suzuki GSX-R1000AM5 (2025) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN,OIL

11511-17K00

$212.93

2

.GASKET,OIL PAN

11489-17K00

$13.96

3

BOLT

01547-0625A

$2.01

4

PLUG,OIL DRAIN (14X20) | OIL DRAIN

11512-17K00

$14.54

5

GASKET (13.8X18.8X4.8) | OIL DRAIN

09168-14002

$2.83

6

CHAIN,OIL PUMP DRIVE

16310-47H00

$41.08

7

SPROCKET,OIL PUMP DRIVE (NT:2 | )

16321-01H00

$86.77

8

SPROCKET,OIL PUMP DRIVEN (NT: | 0)

16331-17K00

Unavailable

9

RETAINER,OIL PUMP SPRKT BOLT

16332-17K00

Unavailable

10

PUMP ASSY,ENG OIL

16400-17K00

$164.46

11

VALVE ASSY,OIL RELIEF

16440-17K00

$84.13

12

BOLT (6X50)

09103-06206

$5.17

13

BOLT

09103-06523

$5.50

14

SHIM (12X20X0.5)

09181-12158

$2.24

15

O-RING (D:2.4,ID:15.8)

09280-15007

$1.71

16

PIN (8.5X18X2.3)

04211-09149

$1.64

17

STRAINER,ENG OIL

16520-17K00

$33.55

18

O-RING (D:2.62,ID:20.3)

09280-19008

$4.97

19

BOLT (6X20)

01550-0620A

$1.97

20

SWITCH ASSY,OIL PRESSURE

37820-33D11

$27.58

21

.BOLT,OIL PRESSURE SWITCH

37822-33D00

$4.92
