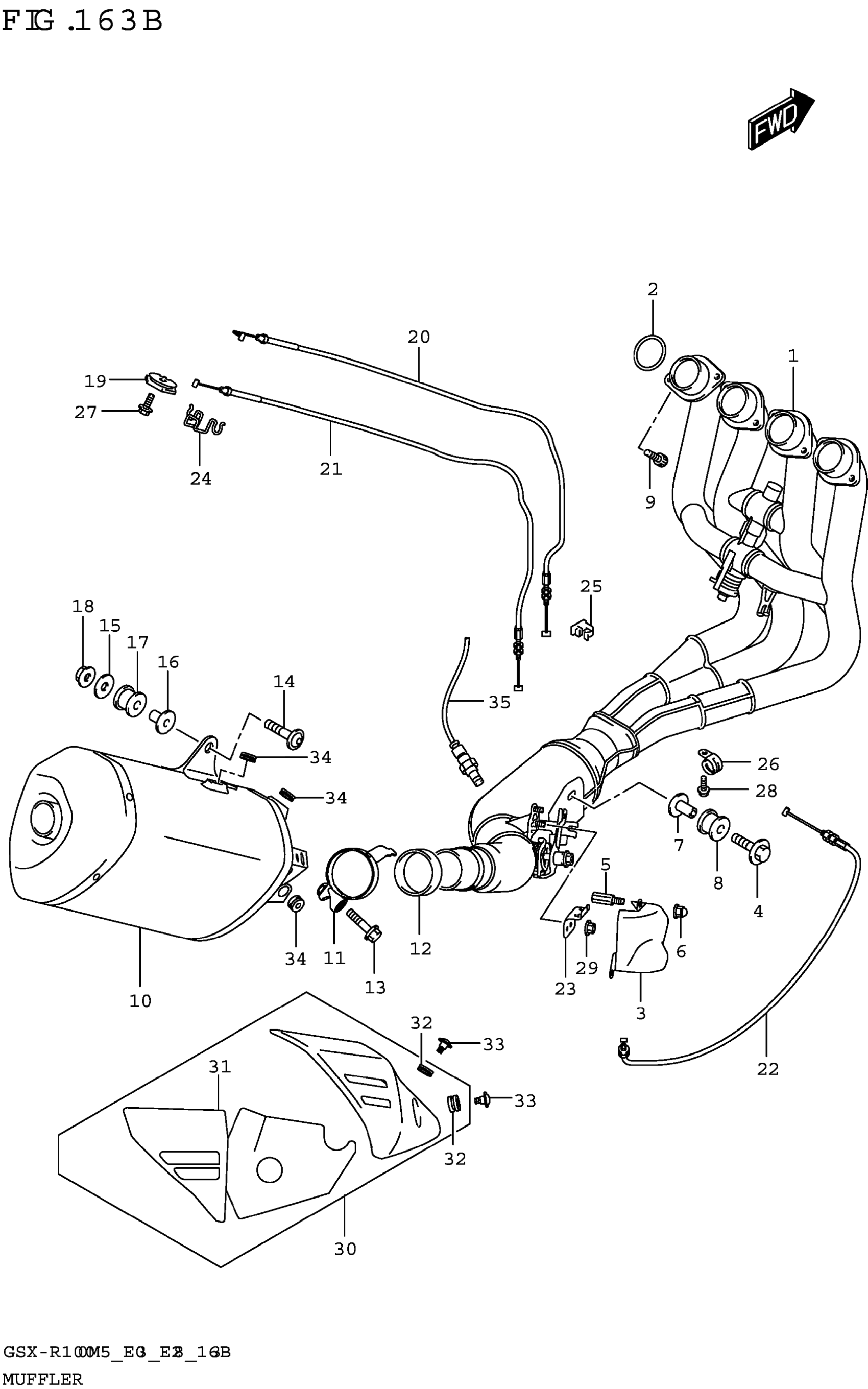

Suzuki GSX-R1000AM5 (2025) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-17K02

$1,435.05

2

.GASKET,EXHAUST PIPE

14181-04K00

$8.29

3

COVER,EXH VALVE

14280-17K00

$32.33

4

BOLT (8X45)

09118-08152-A05

$5.24

5

BOLT

09119-06105

$5.98

6

NUT (M6)

09159-06100

$2.81

7

SPACER (8.6X12X24.2)

09180-08152

$5.83

8

CUSHION (12X30X24)

09320-12077

$11.78

9

BOLT

07130-0825A

$3.04

10

BODY,MUFFLER

14310-17KE0-H01

$2,277.53

11

CLAMP,MUF CONN

14459-17K10

$28.93

12

CONNECTOR,MUFFLER

14771-24F01

$31.05

13

BOLT (8X40)

09106-08162

$4.77

14

BOLT (8X45)

09106-08195

$6.17

15

WASHER (8.5X28X1.6)

09160-08157

$2.95

16

SPACER (8.6X12X24.2)

09180-08152

$5.83

17

CUSHION (12X30X24)

09320-12048

$5.11

18

NUT

08361-2508B

$2.47

19

PULLEY,CONTROLLER

11269-18G01

$28.78

20

CABLE,EXH VALVE NO.1

11276-17K00

$48.22

21

CABLE,EXH VALVE NO.2

11277-17K00

$56.65

22

CABLE,EXH VALVE NO.3

11278-17K02

$35.80

23

BRACKET,EXHAUST VALVE CABLE

14250-21H00

$9.90

24

GUIDE,EXHAUST VALVE CABLE

14252-14J00

$7.37

25

CLAMP

09403-06414

$3.33

26

CLAMP (L:45)

09404-06429

$1.83

27

BOLT

01547-0516A

$1.55

28

BOLT

01547-0612A

$2.03

29

NUT (6X12)

08316-1006A

$2.19

30

COVER,MUFFLER

14780-17K20

$259.27

31

.SHIELD,MUF COVER HEAT

14784-17K00

$11.02

32

CUSHION (8.4X18X6)

09320-08066

$8.24

33

SCREW (6X12)

09139-06124

$4.52

34

CUSHION (8.4X18X6)

09320-08066

$8.24

35

SENSOR,OXYGEN

18213-17K00

$297.73
