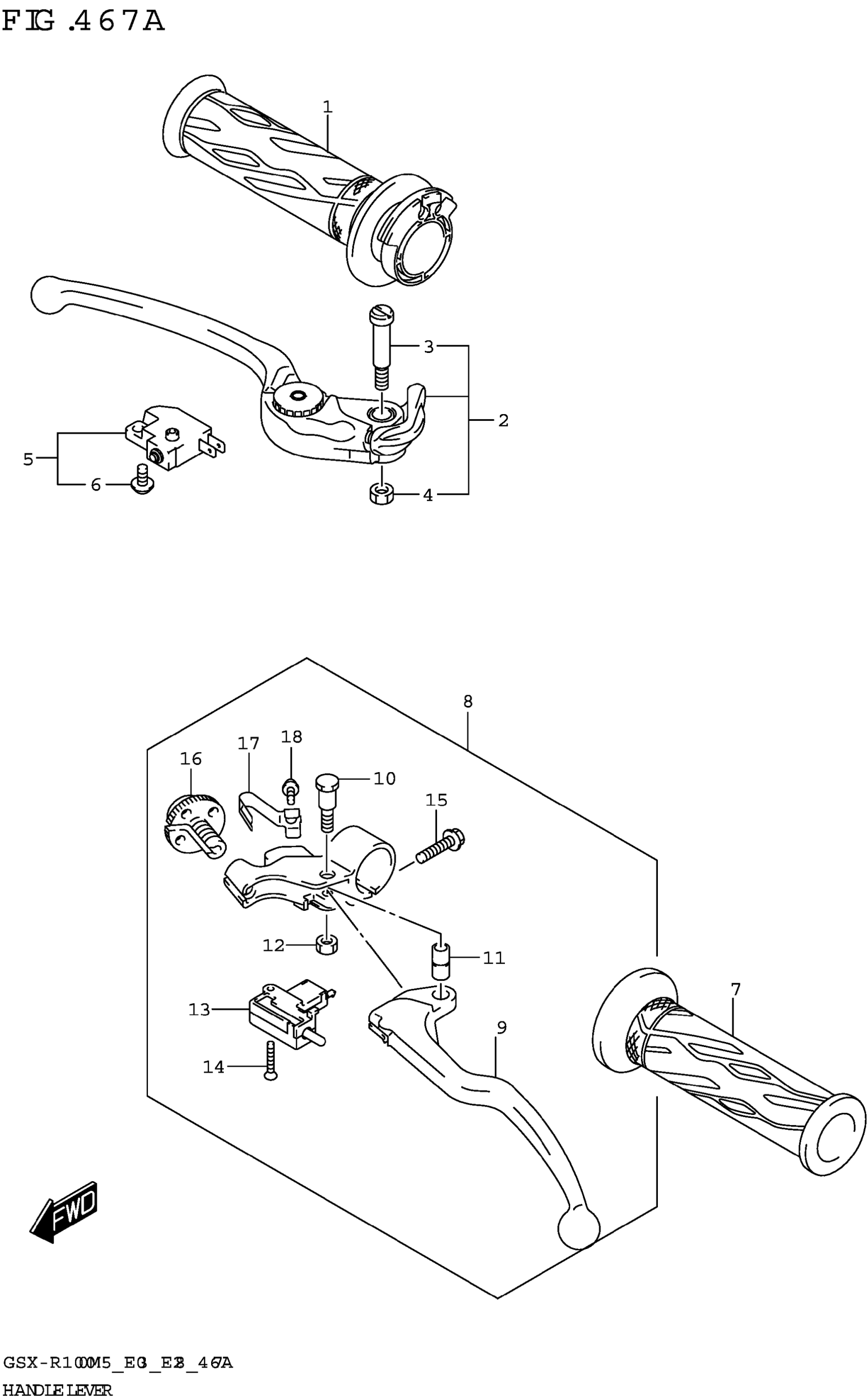

Suzuki GSX-R1000AM5 (2025) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$20.33

2

LEVER ASSY,BRAKE

57300-17K00

$73.87

3

.BOLT,LEVER PIVOT

57431-29G00

$9.31

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

SWITCH ASSY,FR BRAKE

57460-14J02

$38.46

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.19

7

GRIP,L

57211-21H01

$11.13

8

LEVER ASSY,CLUTCH

57500-41G70

$100.95

9

.LEVER,CLUTCH

57621-41G10

$35.19

10

.BOLT,LEVER PIVOT

57431-41G60

$10.43

11

.COLLAR

57532-41G00

$19.74

12

NUT

08319-3106B

$2.45

13

.SWITCH,CLUTCH

57560-41G20

$22.86

14

.SCREW,CLUTCH SWITCH

57562-41G21

$8.11

15

..BOLT

01547-0620B

$2.45

16

.NUT,ADJUSTER

57641-33E21

$35.94

17

.SPRING,ADJUST

57644-33E10

Unavailable

18

.SCREW,ADJUST

57642-33E10

Unavailable
