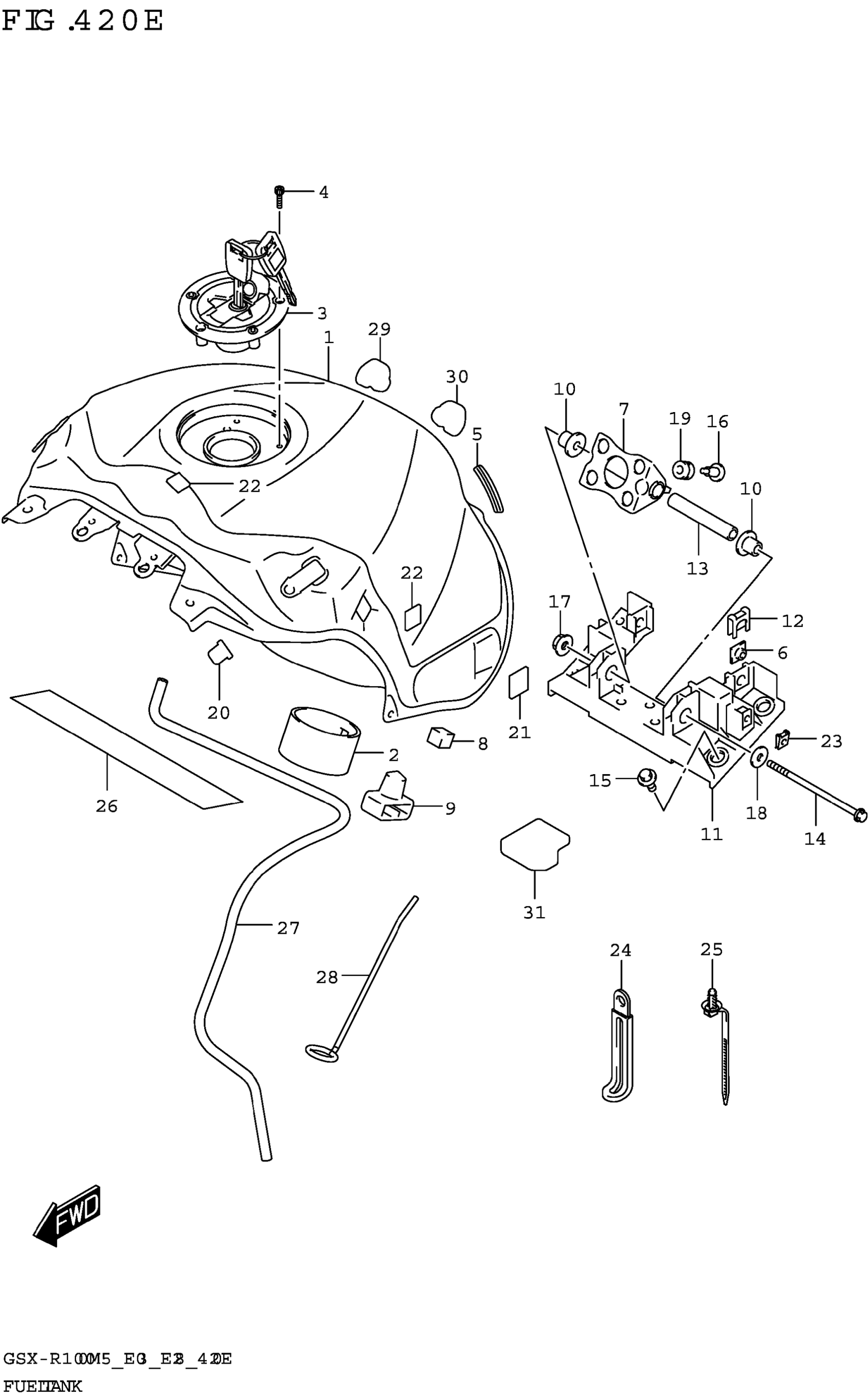

Suzuki GSX-R1000AM5 (2025) FUEL TANK ((GSX-R1000A,GSX-R1000RA):(E33)) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (SILVER) | BODY COLOR:QKA

44100-17K00-QKA

$800.00

1-2

TANK ASSY,FUEL (RED) | BODY COLOR:AV4

44100-17K00-YYG

$800.00

2

VESSEL,FUEL TANK INNER

44121-17K01

$16.35

3

CAP SET,FUEL TANK FILLER

44200-17850

$145.35

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

MOLDING (L:50)

44552-24B10

$11.18

6

NUT (M6)

44523-47H00

$10.02

7

BRACKET,FUEL TANK NO.1

44530-17K00

$28.83

8

CUSHION,FUEL TANK SIDE

44541-17K00

$5.13

9

CUSHION,FUEL TANK REAR

44542-17K00

$11.33

10

SPACER,FUEL TANK REAR BRKT

44544-17K00

$7.75

11

BRACKET,FUEL TANK REAR

44551-17K00

$62.72

12

CLIP,NUT

44552-17K00

$5.22

13

SPACER,FUEL TANK RR

44561-18G00

$16.96

14

BOLT (6X125) This part replaces 09103-06031.

09103-06033

$3.91

15

BOLT (6X18)

09111-06081

$4.09

16

SCREW (6X22)

09139-06191

$4.03

17

NUT (M6)

09159-06086

$2.04

18

WASHER This part replaces 09160-06012.

09160-06054

$1.62

19

CUSHION (8X18X14)

09320-08071

$3.25

20

CUSHION,FUEL TANK COVER

44543-17K00

$3.50

21

FASTENER (33X25X2.6)

44572-13G00

$11.07

22

FASTENER (20X15X2.6)

44572-44G00

$10.18

23

NUT (M5)

09148-05052

$3.37

24

CLAMP (L:80)

09404-06030

Unavailable

25

CLAMP (L:170)

09407-17403

$4.91

26

PROTECTOR,FUEL TANK

44283-17K00

$13.08

27

HOSE,FUEL TANK WATER DRAIN

44423-17K02

$17.28

28

STAY,FUEL TANK

44574-17K00

$35.02

29

PROTECTOR,FUEL TANK NO.2,R

44285-17K00

$9.83

30

PROTECTOR,FUEL TANK NO.2,L

44286-17K00

$9.83

31

PROTECTOR,FUEL TANK

44284-17K00

$5.02
