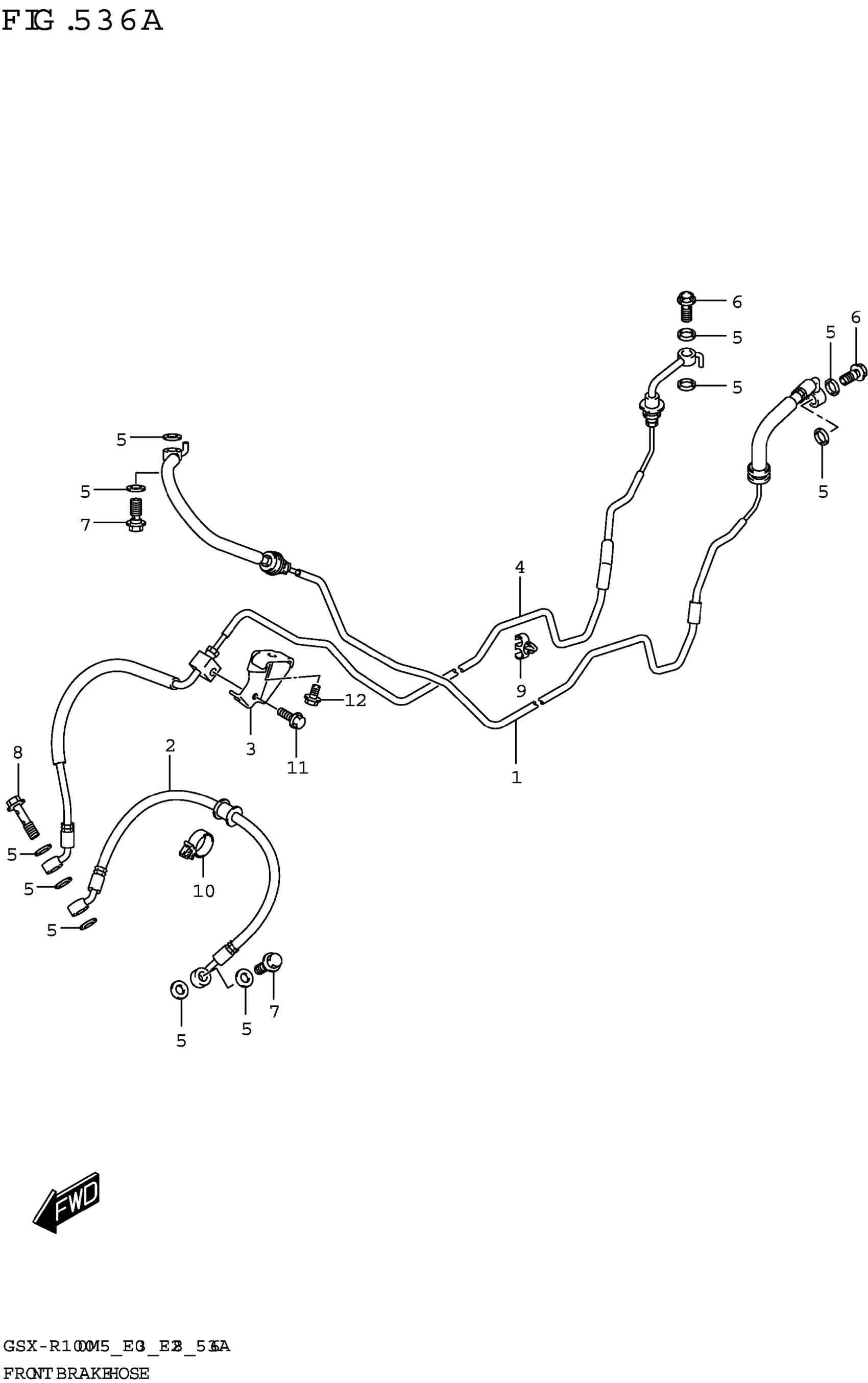

Suzuki GSX-R1000AM5 (2025) FRONT BRAKE HOSE (GSX-R1000A) Diagram

#

Description
Price

1

HOSE

59200-17K21

$149.80

2

HOSE,CLPR R TO CLPR L

59240-17K20

Unavailable

3

CLAMP,FRONT BRAKE HOSE

59270-17K00

$23.25

4

HOSE

59400-17K41

$155.57

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

UNION (10X1.25X22)

09360-10062

$6.43

7

UNION This part replaces 09360-10042.

09360-10062

$6.43

8

UNION

09360-10069

$6.20

9

CLAMP

09403-07409

Unavailable

10

CLAMP

09403-16412

$3.37

11

BOLT

01547-0612A

$2.03

12

BOLT

01550-0612A

$1.97
