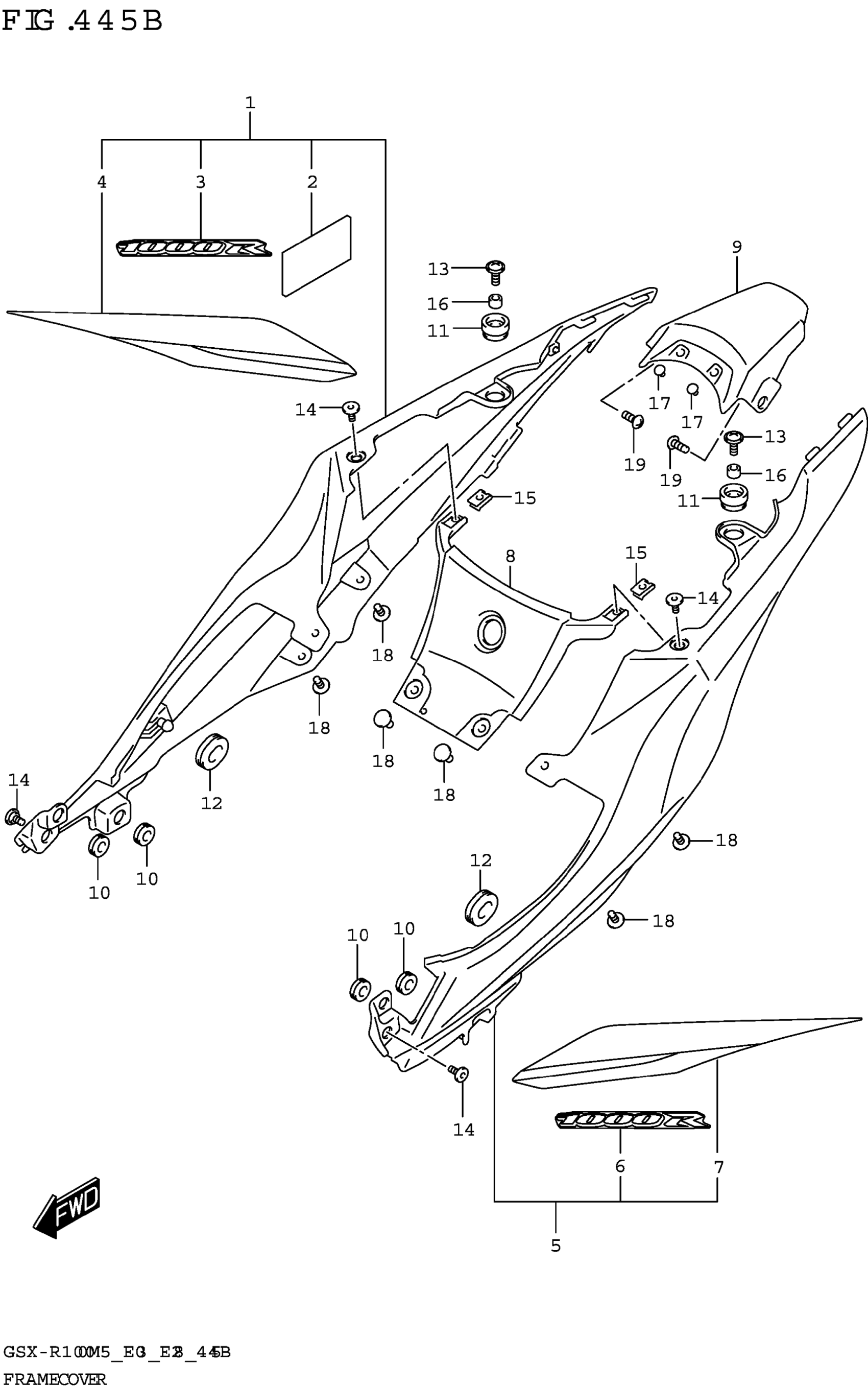

Suzuki GSX-R1000AM5 (2025) FRAME COVER (GSX-R1000RA) Diagram

#

Description
Price

1-1

COVER,FRAME,R (BLACK) | BODY COLOR:QKA

47110-17KD0-YVB

$142.18

1-2

COVER,FRAME,R (BLACK) | BODY COLOR:AV4

47110-17KD0-6UX

$142.18

2

CUSHION (45X100X3)

33652-17K10

$4.38

3

.EMBLEM,FRAME COVER

68131-17K00-C3N

$14.77

4-1

.TAPE,FRAME COVER,R | BODY COLOR:QKA

68135-17K80-C29

Unavailable

4-2

.TAPE,FRAME COVER,R (RED,BLAC | ,GRAY) BODY COLOR:AV4

68135-17K80-B4S

Unavailable

5-1

COVER,FRAME,L (BLACK) | BODY COLOR:QKA

47210-17KD0-YVB

$142.18

5-2

COVER,FRAME,L (BLACK) | BODY COLOR:AV4

47210-17KD0-6UX

$142.18

6

.EMBLEM,FRAME COVER

68131-17K00-C3N

$14.77

7-1

.TAPE,FRAME COVER,L | BODY COLOR:QKA

68145-17K80-C29

Unavailable

7-2

.TAPE,FRAME COVER,L (RED,BLAC | ,GRAY) BODY COLOR:AV4

68145-17K80-B4S

Unavailable

8

COVER,FRAME CENTER FRONT

47311-17K00

$34.62

9

COVER,FRAME CTR RR (BLACK)

47411-17K00-YVB

$79.00

10

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$3.92

11

CUSHION (10X24X13)

47312-37H10

$2.80

12

CUSHION

94478-14J00

$5.42

13

SCREW (6X16)

09139-06139

$2.92

14

SCREW (5X13)

09139-05092

$2.22

15

NUT (M5)

09148-05052

$3.04

16

SPACER (6.5X10X7)

09180-06283

$1.89

17

PLUG (OD:10)

09250-06017

$2.74

18

CLIP

09409-06328

$2.92

19

SCREW

03541-0516A

$1.37
