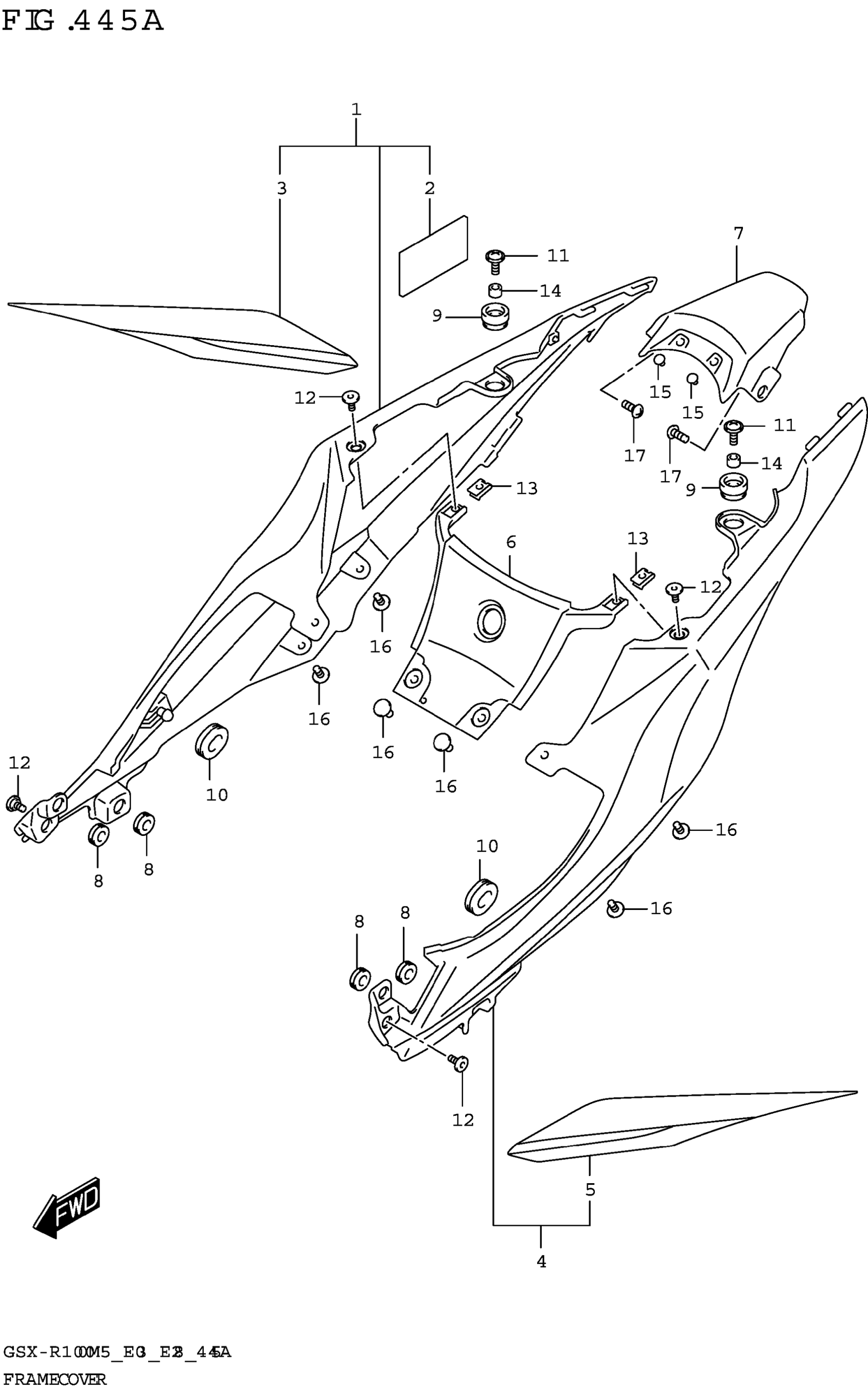

Suzuki GSX-R1000AM5 (2025) FRAME COVER (GSX-R1000A) Diagram

#

Description
Price

1-1

COVER,FRAME,R (BLACK) | BODY COLOR:QKA

47110-17KF0-YVB

$123.98

1-2

COVER,FRAME,R (BLACK) | BODY COLOR:AV4

47110-17KF0-6UX

$123.98

2

CUSHION (45X100X3)

33652-17K10

$3.88

3-1

.TAPE,FRAME COVER,R | BODY COLOR:QKA

68135-17K80-C29

Unavailable

3-2

.TAPE,FRAME COVER,R (RED,BLAC | ,GRAY) BODY COLOR:AV4

68135-17K80-B4S

Unavailable

4-1

COVER,FRAME,L (BLACK) | BODY COLOR:QKA

47210-17KF0-YVB

$123.98

4-2

COVER,FRAME,L (BLACK) | BODY COLOR:AV4

47210-17KF0-6UX

$123.98

5-1

.TAPE,FRAME COVER,L | BODY COLOR:QKA

68145-17K80-C29

Unavailable

5-2

.TAPE,FRAME COVER,L (RED,BLAC | ,GRAY) BODY COLOR:AV4

68145-17K80-B4S

Unavailable

6

COVER,FRAME CENTER FRONT

47311-17K00

$30.67

7

COVER,FRAME CTR RR (BLACK)

47411-17K00-YVB

$70.33

8

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$4.16

9

CUSHION (10X24X13)

47312-37H10

$2.91

10

CUSHION

94478-14J00

$5.92

11

SCREW (6X16)

09139-06139

$3.23

12

SCREW (5X13)

09139-05092

$2.25

13

NUT (M5)

09148-05052

$3.37

14

SPACER (6.5X10X7)

09180-06283

$1.91

15

PLUG (OD:10)

09250-06017

$2.71

16

CLIP

09409-06328

$3.23

17

SCREW

03541-0516A

$1.49
