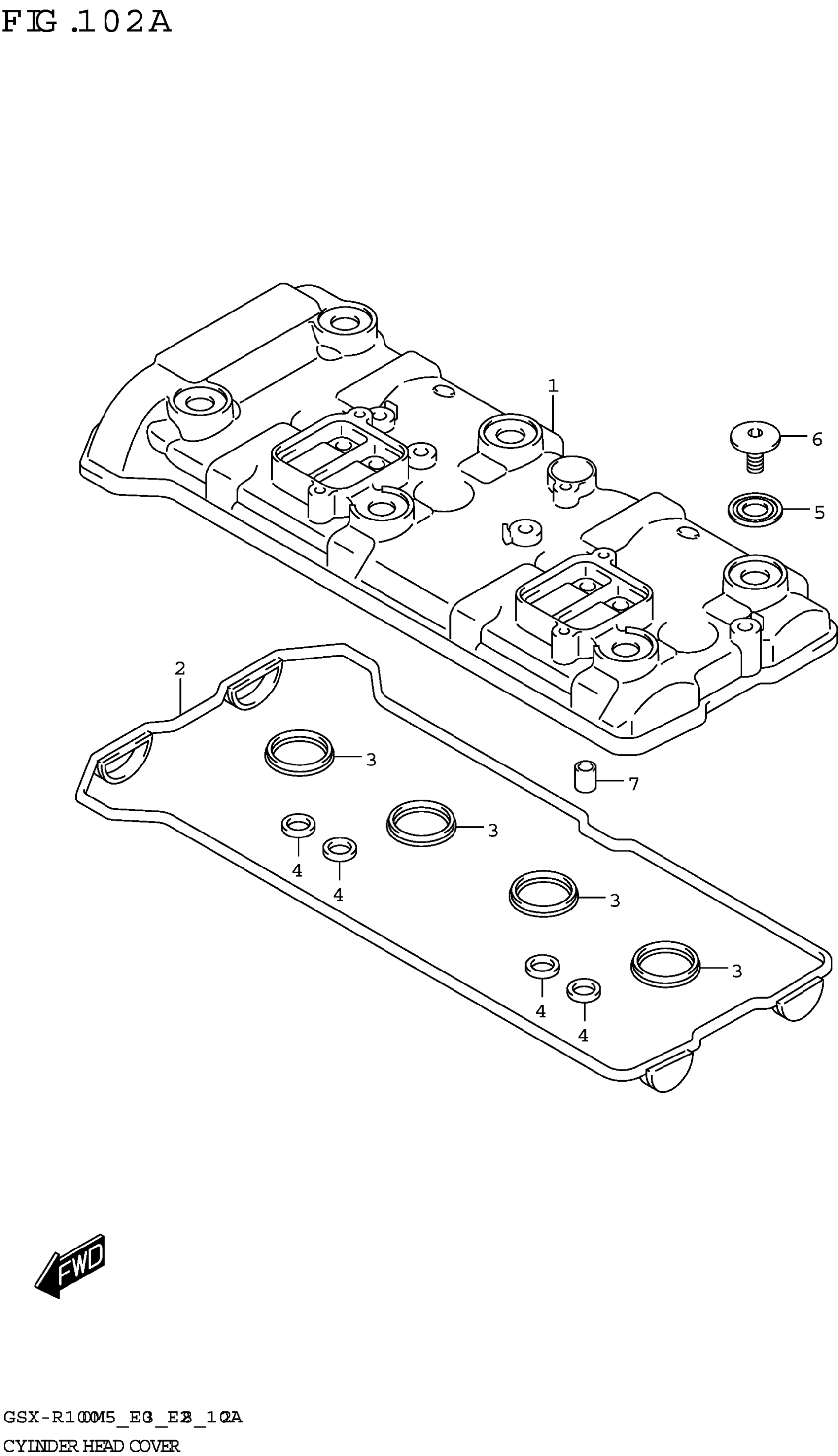

Suzuki GSX-R1000AM5 (2025) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER,CYLINDER HEAD

11171-17K00

$375.05

2

.GASKET,CYLINDER HEAD COVER

11173-17K00

$38.02

3

.GASKET,CYL HEAD COVER NO.2

11178-33E00

$6.20

4

.GASKET,2ND AIR PASSAGE

11182-35F10

$4.72

5

WASHER,CYL HEAD COVER (10.6X2 | .5X1.6)

11191-27E00

$4.27

6

BOLT (7X17.5)

09106-07021

$4.50

7

PIN (8.2X10X13)

09206-10016

$8.04
