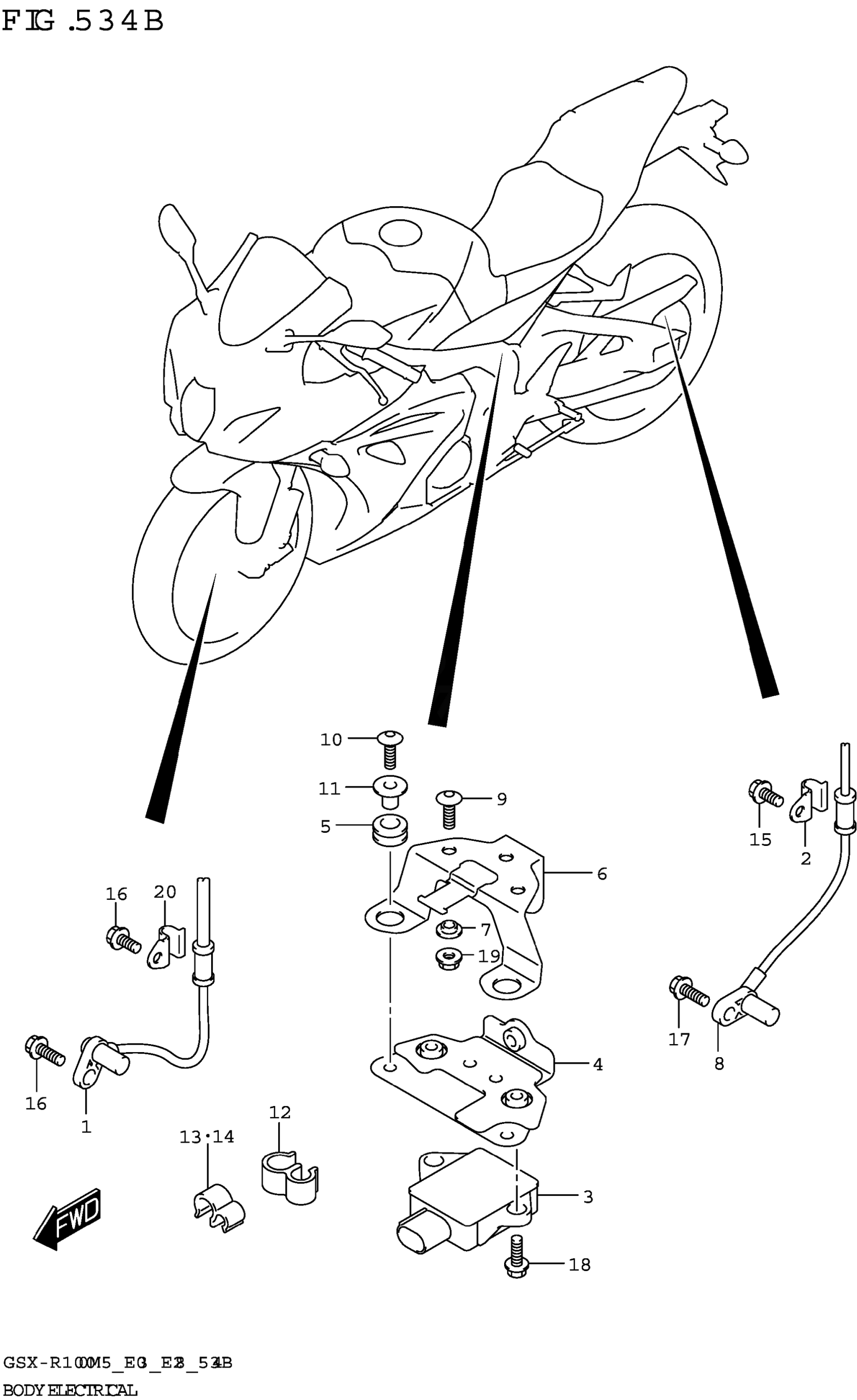

Suzuki GSX-R1000AM5 (2025) BODY ELECTRICAL (GSX-R1000RA,GSX-R1000RZA) Diagram

#

Description
Price

1

SENSOR,FR WHEEL SPEED

55710-17K20

$203.63

2

CLAMP,ABS SENSOR FR

55731-15H00

$4.83

3

SENSOR,INERTIAL

55750-17K20

$1,202.47

4

HOLDER,INERTIAL SENSOR

55760-17K10

$30.02

5

RUBBER,INERTIAL SENSOR MTG

55763-17K00

$4.77

6

BRACKET,SENSOR HOLDER

55770-17K00

$45.33

7

SPACER,SENSOR HOLDER BRKT

55772-17K00

$11.33

8

SENSOR,RR WHEEL SPEED

65710-17K00

$65.94

9

SCREW (6X16)

09139-06139

$3.23

10

BOLT

09139-06208

$3.25

11

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

12

CLIP

09408-00101

$3.13

13

CLAMP

09408-00266

$2.51

14

CLAMP

09408-00266

$2.51

15

BOLT

01547-0612B

$1.49

16

BOLT

01547-0616B

$2.45

17

BOLT

01547-0616B

$2.45

18

BOLT

07120-0616A

$2.53

19

NUT (6X12)

08316-1006A

$2.19

20

CLAMP,SENSOR LEAD

55731-17K00

$9.87
