2024 Suzuki GSX-R1000AM4 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2024 Suzuki GSX-R1000AM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

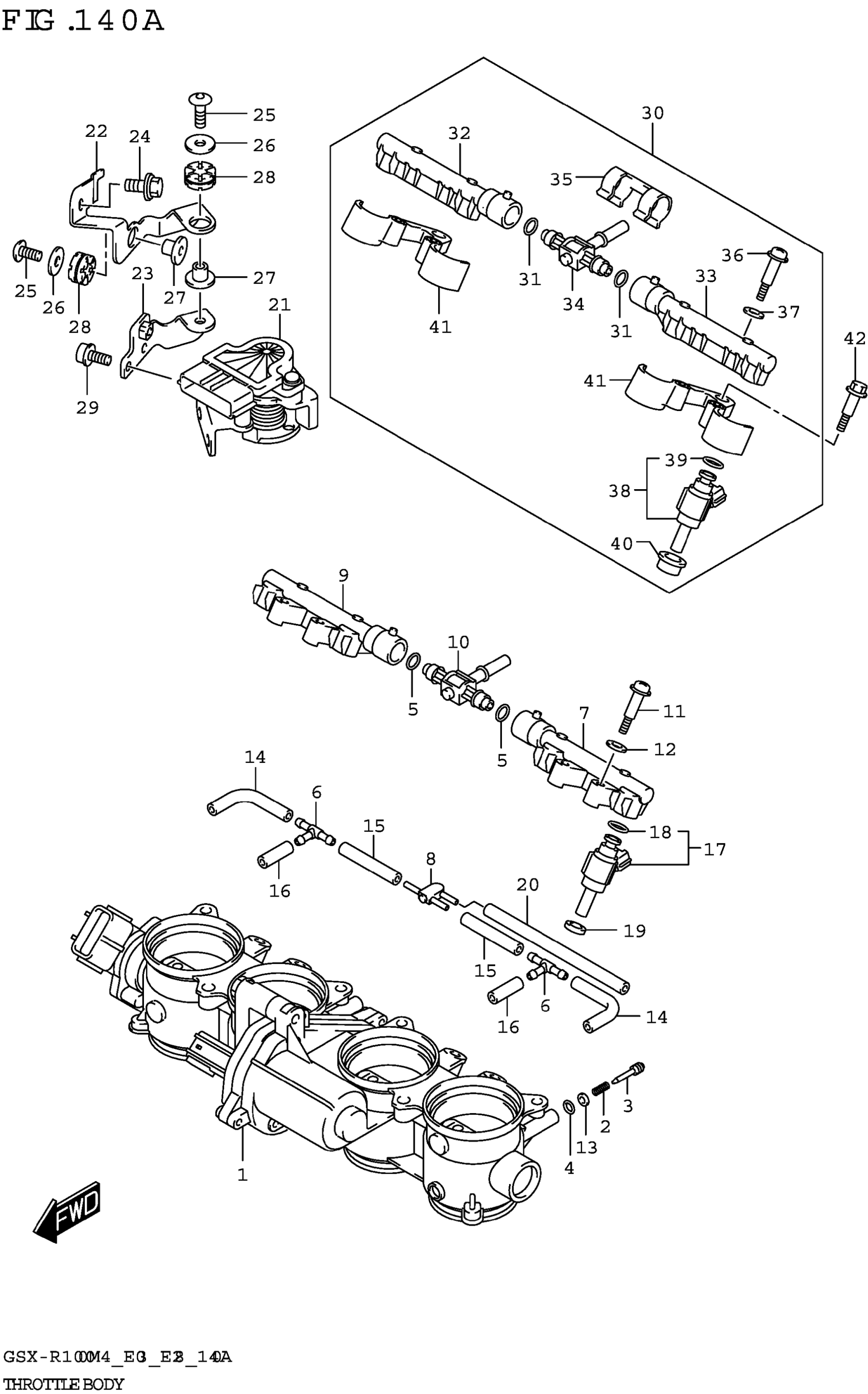

2024 Suzuki GSX-R1000AM4 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROTTLE

13405-17K02

1
Out of stock

2

SPRING,THROTTLE SCREW

13268-48700

4
Out of stock

3

SCREW

13269-33E00

4
Out of stock

4

O-RING

13295-29901

4
Out of stock

5

O-RING

13374-32G00

2
Out of stock

6

3WAY,VACUUM HOSE

13685-02FA0

2
Out of stock

7

DELIVERY PIPE

13471-17K00

1
Out of stock

8

JOINT

13471-18H00

1
Out of stock

9

DELIVERY PIPE

13472-17K00

1
Out of stock

10

NIPPLE ASSY

13473-17K00

1
Out of stock

11

SCREW

13601-29G00

4
Out of stock

12

PACKING

13602-29G01

4
Out of stock

13

WASHER

13606-47A00

4
Out of stock

14

HOSE (3.2X7.4X60)

13681-39F01-060

2
Out of stock

15

HOSE (L:425)

13683-10F61

2
Out of stock

16

HOSE (L:425)

13683-10F61

2
Out of stock

17

INJECTOR ASSY

15710-04K00

4
Out of stock

18

.O-RING

15717-58B00

4
Out of stock

19

SEAL

15722-14J00

4
Out of stock

20

.HOSE (3X7X600)

09355-30001-600

1
Out of stock

21

BODY ASSY,ACCELERATOR

13500-17K00

1
Out of stock

22

BRACKET,ACCEL SENSOR NO.1

13571-17K00

1
Out of stock

23

BRACKET,ACCEL SENSOR NO.2

13572-17K00

1
Out of stock

24

BOLT (6X12)

09116-06197

1
Out of stock

25

BOLT

09139-06208

2
Out of stock

26

.WASHER (6.5X20X1.6)

09160-06088

2
Out of stock

27

SPACER (6.5X10X11.6)

09180-06319

2
Out of stock

28

CUSHION

09320-10055

2
Out of stock

29

BOLT

07120-0612B

2
Out of stock

30

BODY ASSY,2ND INJECTOR

15900-17K00

1
Out of stock

31

O-RING

13374-32G00

2
Out of stock

32

DELIVERY PIPE

13471-17K00

1
Out of stock

33

DELIVERY PIPE

13472-17K00

1
Out of stock

34

NIPPLE ASSY

13473-17K00

1
Out of stock

35

.CLIP

13474-17K00

1
Out of stock

36

SCREW

13601-29G00

4
Out of stock

37

PACKING

13602-29G01

4
Out of stock

38

.INJECTOR ASSY

15710-17K10

4
Out of stock

39

.O-RING

15717-58B00

4
Out of stock

40

.INSULATOR

15722-17K00

4
Out of stock

41

.BRACKET,2ND INJECTOR

15910-17K00

4
Out of stock

42

BOLT

09111-06250

2
Out of stock
