2024 Suzuki GSX-R1000AM4 Evap System Diagram

← All diagrams

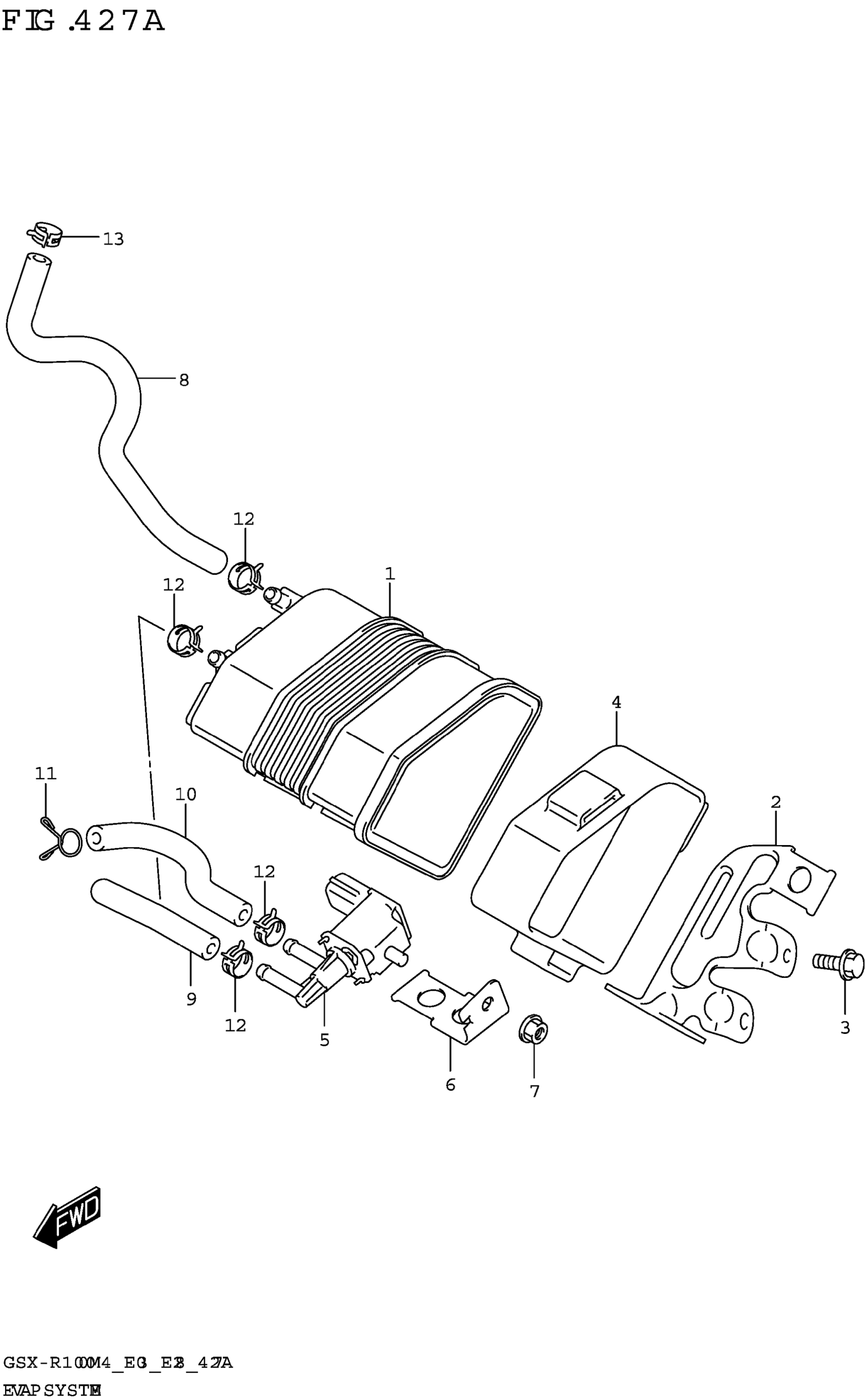

Find the part on the Evap System diagram for your 2024 Suzuki GSX-R1000AM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki GSX-R1000AM4 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CANISTER ASSY,CHARCOAL

18560-04K01

1
Out of stock

2

BRACKET,CANISTER

18571-17K00

1
Out of stock

3

BOLT

01550-0616A

2
Out of stock

4

CUSHION,CANISTER

18572-17K00

1
Out of stock

5

VALVE,CANISTER PURGE

18117-52G10

1
Out of stock

6

BRACKET,PURGE VALVE

18573-17K00

1
Out of stock

7

NUT (6X12)

08316-1006A

1
Out of stock

8

HOSE,SURGE

18561-17K00

1
Out of stock

9

HOSE,PURGE NO.1

18562-17K00

1
Out of stock

10

HOSE,PURGE NO.2

18563-17K00

1
Out of stock

11

CLIP

09401-10201-XC0

1
Out of stock

12

CLIP (ID:10.5,H:8)

09401-10409

4
Out of stock

13

CLIP (ID:11,H:8)

09401-11413

1
Out of stock
