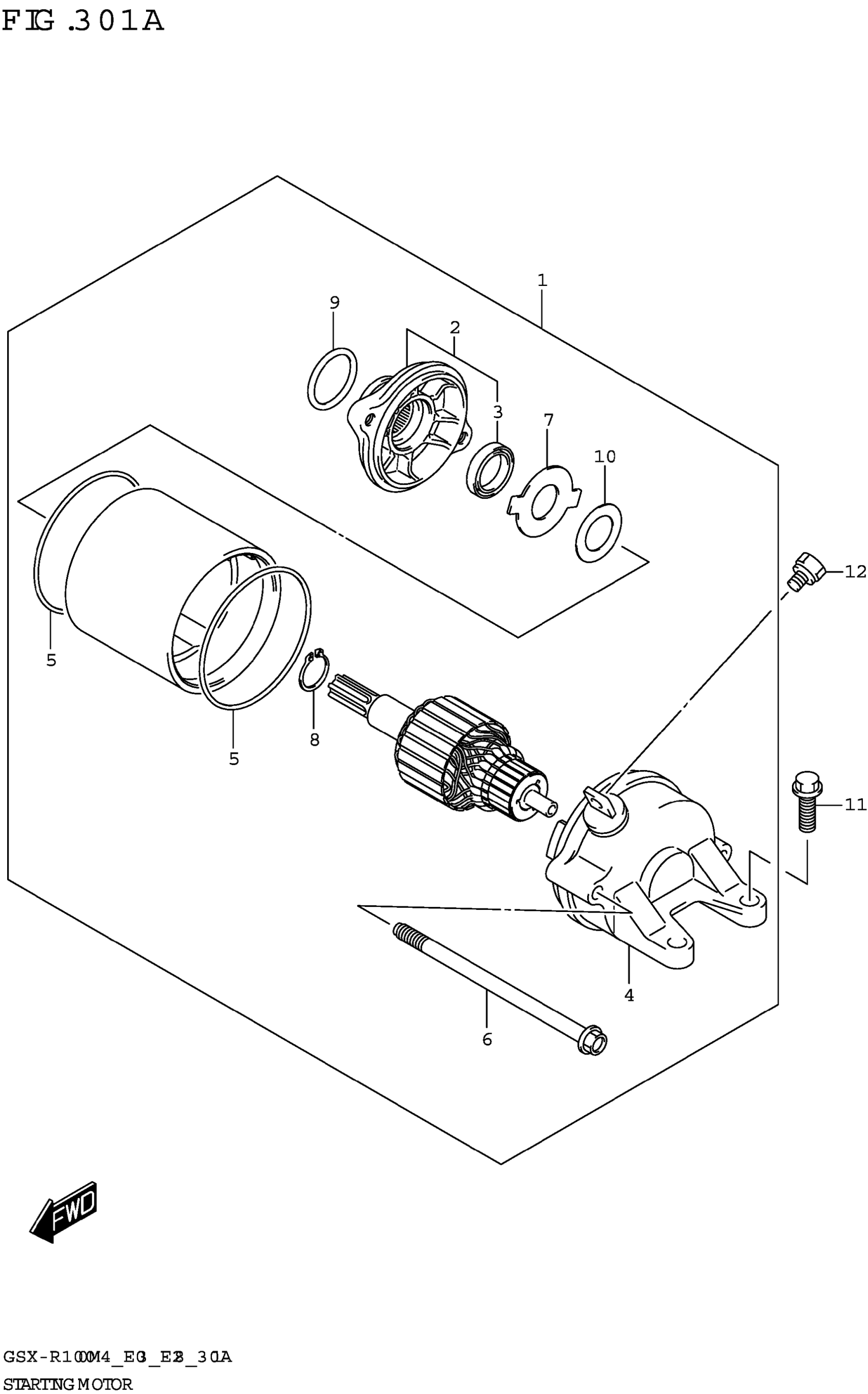

Suzuki GSX-R1000AM4 (2024) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING

31100-17K00

$756.30

2

.HOUSING ASSY

31150-40F01

Unavailable

3

..SEAL,OIL

31153-49210

$27.32

4

.FRAME ASSY

31175-40F01

$169.70

5

.O-RING

31264-32C10

$16.03

6

.BOLT

31281-40F00

Unavailable

7

.PLATE,LOCK

31361-17K00

$8.23

8

.RING,SNAP

31361-10200

Unavailable

9

.SHIM

31361-38300

Unavailable

10

.O-RING (D:3.1,ID:24.5)

31156-40F01

$13.82

11

BOLT

01547-0620A

$2.01

12

SCREW (5X8)

09137-05004

$2.50
