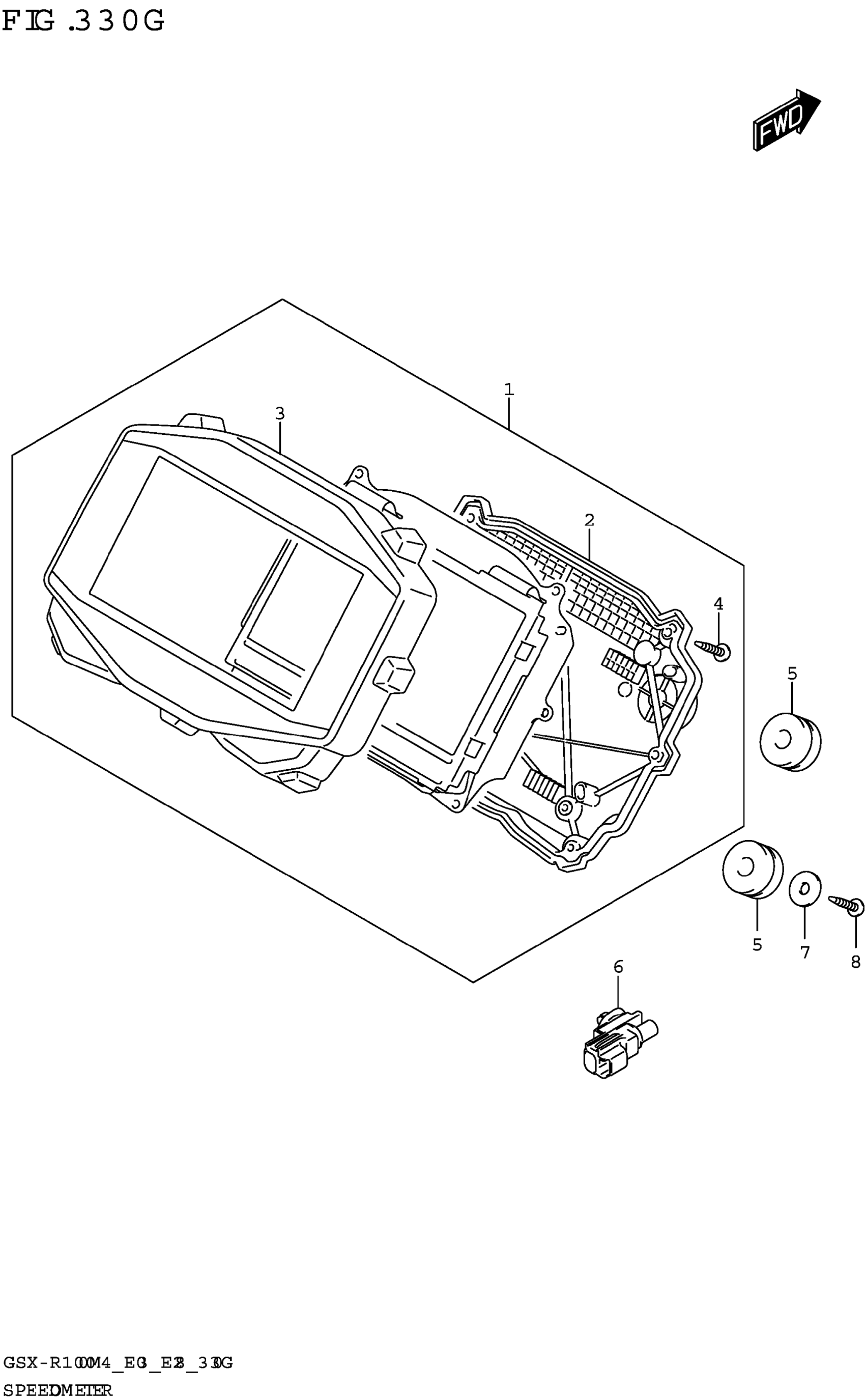

Suzuki GSX-R1000AM4 (2024) SPEEDOMETER ((GSX-R1000RA,GSX-R1000RZA):E28) Diagram

#

Description

Price

1

SPEEDOMETER ASSY

34100-17KB1-999

$965.18

2

.CASE ASSY,LOWER | LOWER

34111-17K00

$68.72

3

.CASE ASSY,UPPER | UPPER

34150-17K10-999

$103.71

4

SCREW

34183-10C00

$2.11

5

CUSHION,SPEEDOMETER

34189-08J01

$3.59

6

SENSOR,AIR TEMP

95643-58J00

$50.50

7

WASHER (4.5X16X1.2)

09160-04026

$2.05

8

SCREW

03541-0416A

$1.49
