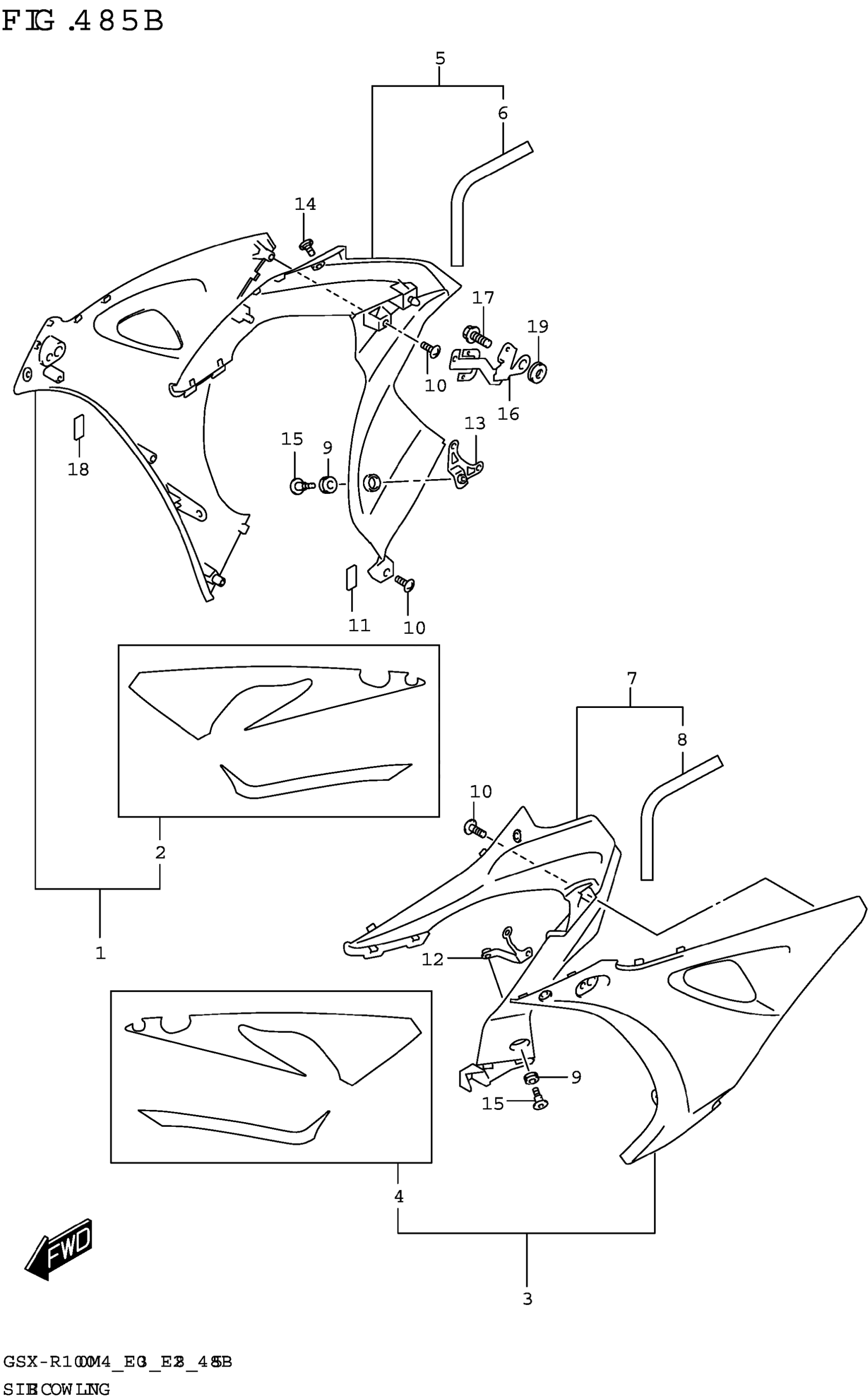

Suzuki GSX-R1000AM4 (2024) SIDE COWLING (GSX-R1000RA) Diagram

#

Description
Price

1-1

COWLING,SIDE FRONT,R (GRAY) | BODY COLOR:QT7

94470-17KA0-QT7

$219.53

1-2

COWLING,SIDE FRONT,R (BLACK) | BODY COLOR:KGL

94470-17KA0-4TX

$219.53

2-1

.TAPE SET,SIDE COWLING,R (BLA | K,RED) BODY COLOR:QT7

68680-17KA0-AV4

$66.50

2-2

.TAPE SET,SIDE COWLING,R | BODY COLOR:KGL

68680-17KA0-B1Y

$66.50

3-1

COWLING,SIDE FRONT,L (GRAY) | BODY COLOR:QT7

94480-17KA0-QT7

$219.53

3-2

COWLING,SIDE FRONT,L (BLACK) | BODY COLOR:KGL

94480-17KA0-4TX

$219.53

4-1

.TAPE SET,SIDE COWLING,L (BLA | K,RED) BODY COLOR:QT7

68690-17KA0-AV4

$66.50

4-2

.TAPE SET,SIDE COWLING,L | BODY COLOR:KGL

68690-17KA0-B1Y

$66.50

5

COWLING,SIDE REAR,R (BLACK)

94450-17K00-YVB

$186.56

6

.CUSHION,SIDE REAR,R NO.1

94477-17K00

$4.91

7

COWLING,SIDE REAR,L (BLACK)

94460-17K00-YVB

$186.56

8

.CUSHION,SIDE REAR,L NO.1

94487-17K00

$2.07

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

SCREW

03541-0516A

$1.49

11

CUSHION,SIDE REAR,R NO.3

94477-17K20

$1.84

12

BRACKET,UNDER COWL,L

94520-17K00

$10.92

13

BRACKET,UNDER COWL,R

94540-17K00

$3.92

14

SCREW (5X13)

09139-05091

$2.03

15

SCREW (6X20)

09139-06206

$3.32

16

BRACKET,SIDE COWL,R

94530-17K00

$27.10

17

BOLT

01550-0616A

$1.97

18

.COVER (30X45X2)

36930-60A10

$2.92

19

CUSHION

94478-14J00

$5.92
