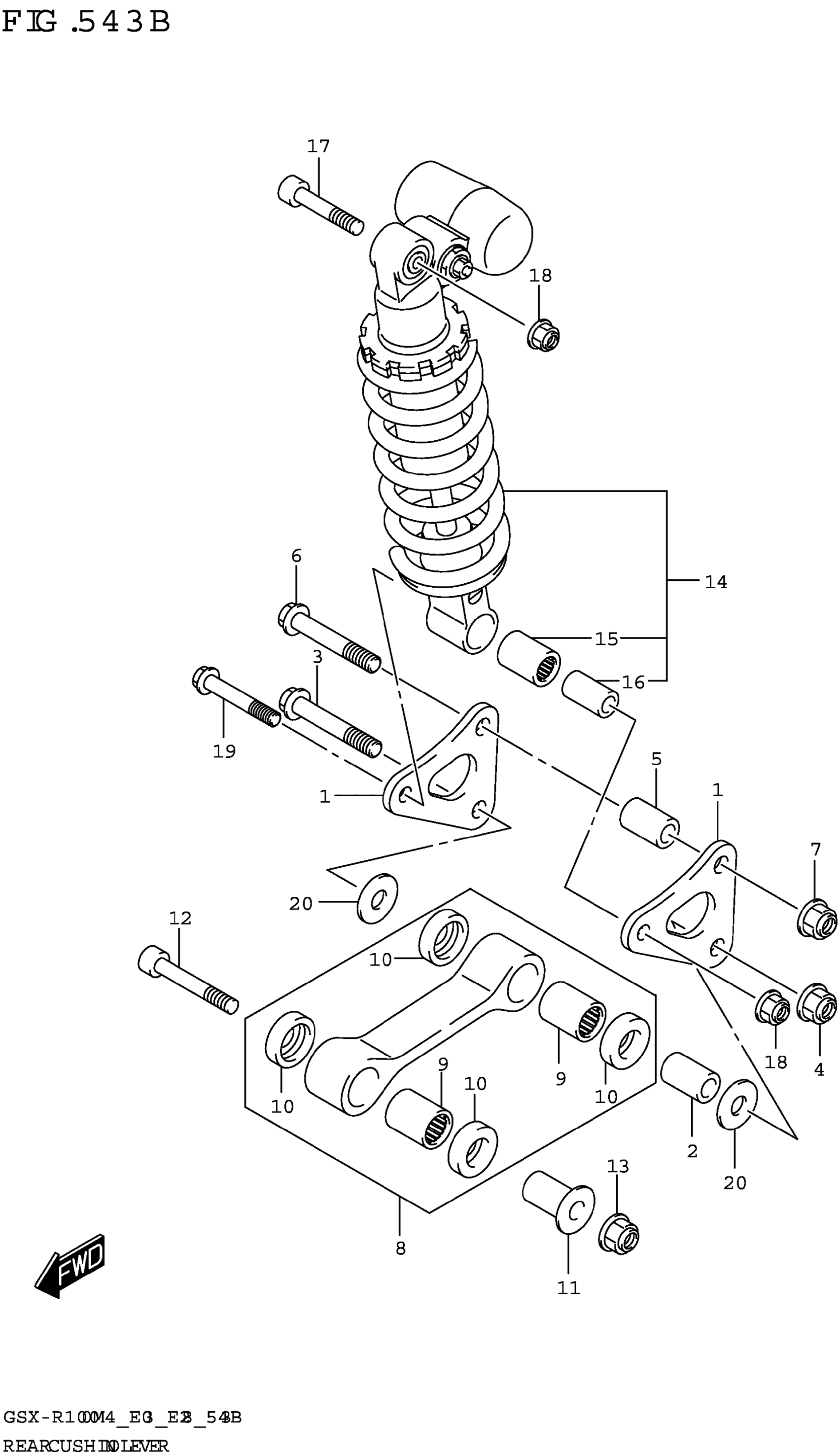

Suzuki GSX-R1000AM4 (2024) REAR CUSHION LEVER (GSX-R1000A) Diagram

#

Description
Price

1

LEVER,REAR CUSHION

62611-17K00

$27.67

2

SPACER, LOWER This part replaces 62317-00B20.

62317-27C10

$15.78

3

BOLT,RR CUSHION LEVER

62658-47H00

$12.13

4

NUT

09159-12056

$6.65

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$23.73

6

BOLT,RR CUSHION LEVER

62658-47H00

$12.13

7

NUT

09159-12056

$6.65

8

ROD SET,RR CUSHION

62600-47820

$116.73

9

.BEARING (20X27X20)

09263-20063

Unavailable

10

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$4.73

11

SPACER,RR CUSHION ROD FR

62647-47H00

$39.83

12

BOLT,RR CUSHION ROD

62658-04K00

$16.23

13

NUT

09159-12056

$6.65

14

ABSORBER ASSY,REAR SHOCK (BLA | K)

62100-17821-019

$806.12

15

BEARING (17X24X32)

09263-17046

$45.05

16

SPACER,RR SHOCK ABS LWR

62317-47H00

$23.08

17

BOLT,RR SHOCK ABS UPPER

62658-04K10

$16.23

18

NUT (M10)

09159-10115

$3.21

19

BOLT,RR SHOCK ABSORBER LWR (1 | X55)

62313-47H00

$13.50

20

WASHER (12X34X1.0)

09160-12037

$3.52
