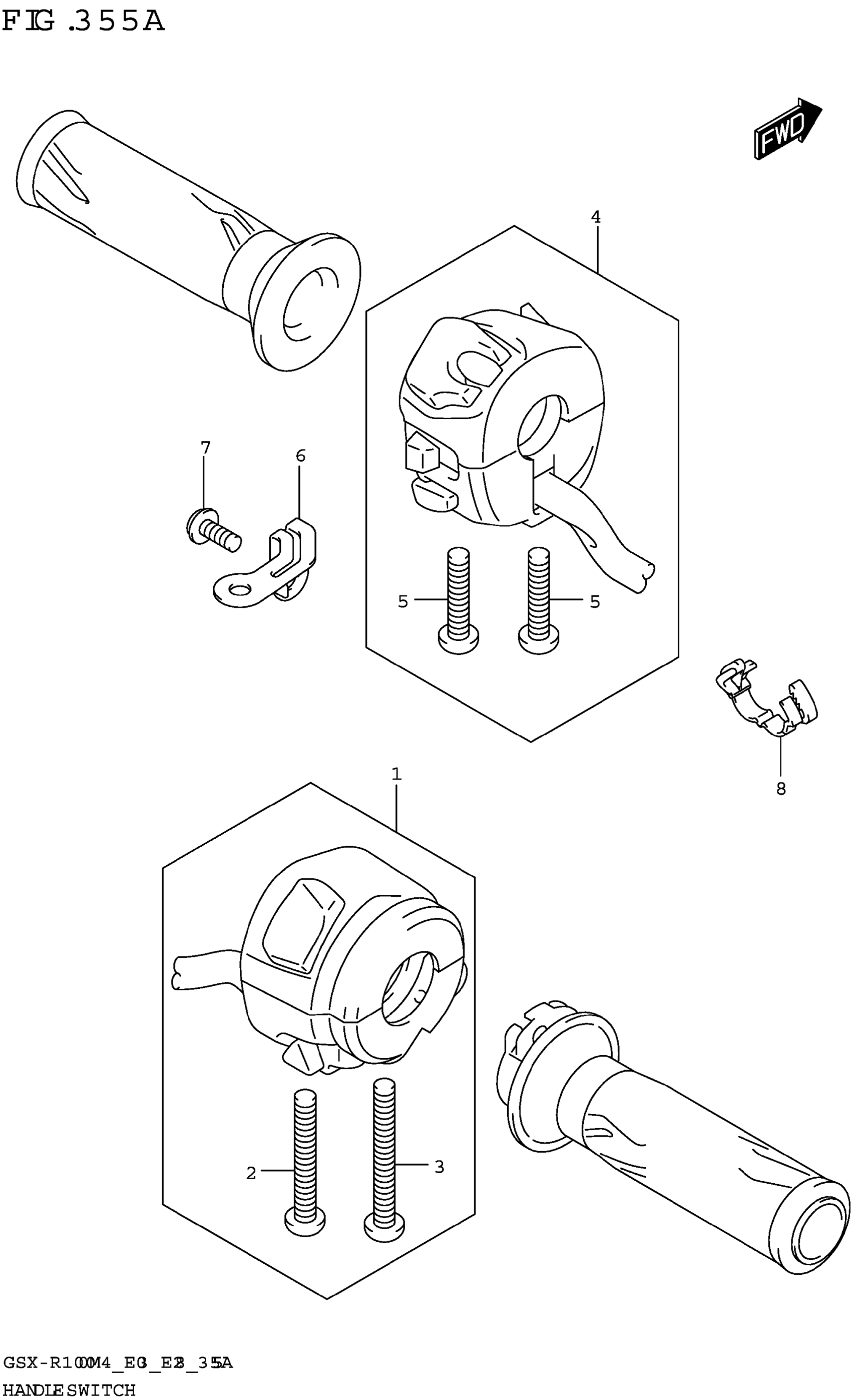

Suzuki GSX-R1000AM4 (2024) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HANDLE,R

37200-17KA0

$168.47

2

.SCREW

02112-0535B

$2.23

3

.SCREW

02112-0540B

$2.70

4

SWITCH ASSY,HANDLE LH

37400-17K02

$154.34

5

.SCREW

02112-0525B

$1.84

6

BRACKET,LEAD WIRE

36617-17K00

Unavailable

7

SCREW (6X16)

09139-06214

$2.60

8

CLAMP

09408-00184

$2.92
