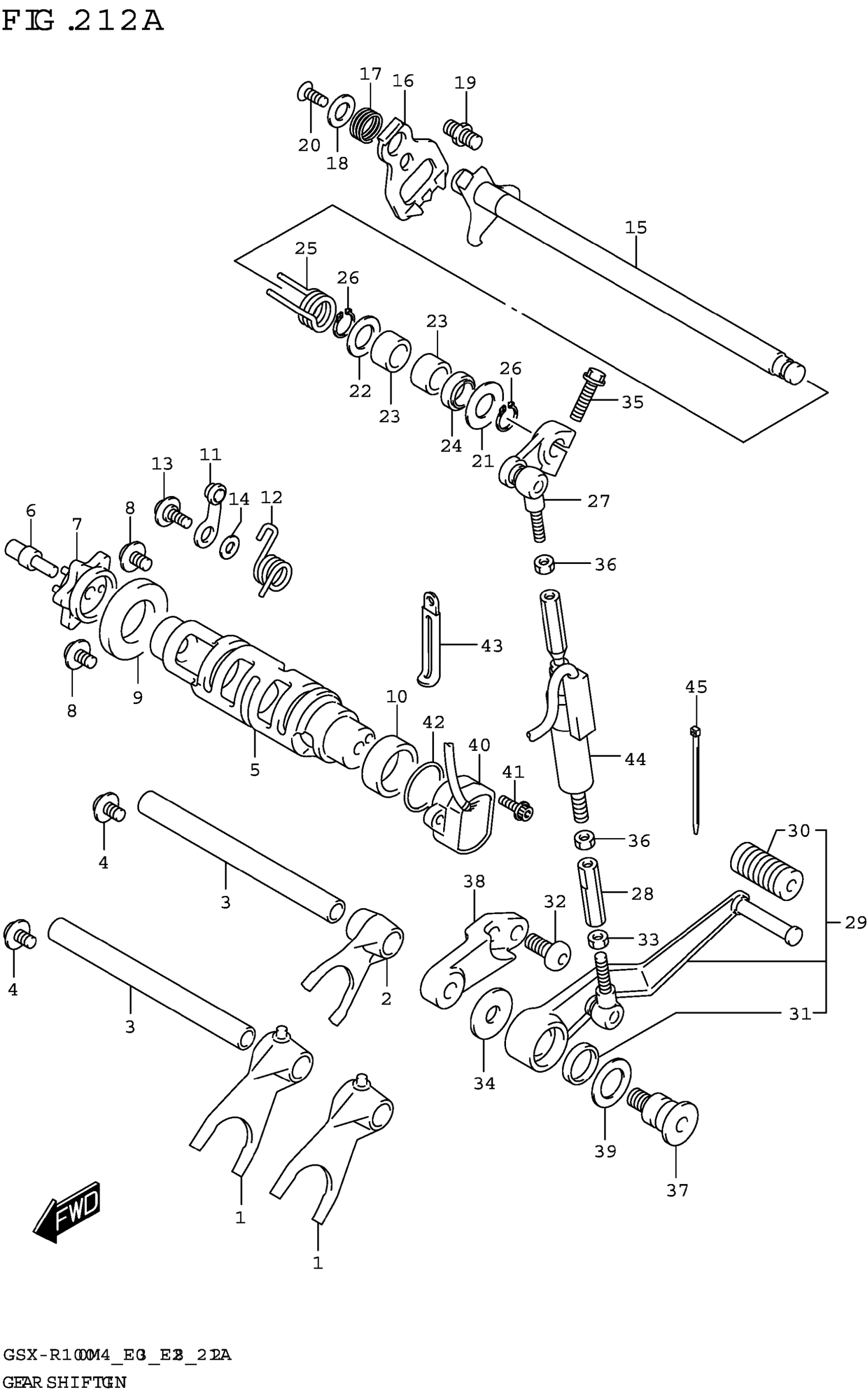

Suzuki GSX-R1000AM4 (2024) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-01H11

$87.97

2

FORK,GEAR SHIFT NO.3

25231-01H02

$86.33

3

SHAFT,GEAR SHIFT FORK (L:152)

25411-38B01

$32.65

4

SCREW (6X12)

09136-06147

$3.48

5

CAM,GEAR SHIFT

25310-17K00

$217.75

6

BOLT,GEAR SHIFT CAM PLATE

25312-17K00

$26.05

7

PLATE,GEAR SHIFT CAM

25381-17K00

$49.37

8

SCREW (6X12)

09136-06147

$3.48

9

BEARING (25X47X8)

09262-25006

$23.05

10

BEARING (25X32X12)

09263-25018

$19.30

11

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

12

SPRING,GEAR SHIFT CAM STOPPER

25355-17K00

$4.43

13

BOLT (6X14.3)

09111-06041

$2.63

14

WASHER

08211-06141

$1.61

15

SHAFT,GEAR SHIFT

25510-17K00

Unavailable

16

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$22.32

17

SPRING,GEAR SHIFT PLATE RETUR

25518-01H00

Unavailable

18

WASHER,GEAR SHIFT SHAFT END

25519-01H00

$6.75

19

STOPPER,GEAR SHIFT ARM

25671-01011

$4.09

20

SCREW (6X16)

09126-06014

$2.07

21

WASHER (14X29X0.8)

09160-14016

$1.91

22

SHIM (14X24X1)

09181-14195

$3.30

23

BEARING (14X20X12)

09263-14027

$12.21

24

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

25

SPRING

09444-20001

$4.80

26

CIRCLIP

08331-3114A

$1.89

27

ARM,GEAR SHIFT LINK

25520-17K10

$75.87

28

ROD,GEAR SHIFT LINK

25525-17K10

$32.83

29

LEVER ASSY,GEAR SHIFT

25600-17K00

$133.77

30

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$4.98

31

.SEAL (18X24X3.5)

09284-18005

$7.03

32

BOLT (8X20)

09106-08167

$3.15

33

NUT

09140-06025

$1.84

34

WASHER (10X30X2.5)

09160-10144

$5.75

35

BOLT

07120-0625B

$3.92

36

NUT

09140-06020

$1.67

37

SHAFT,GEAR SHIFT LEVER

25617-17K00

Unavailable

38

BRACKET,GEAR SHIFT LEVER

25681-17K00

$75.38

39

WASHER,GEAR SHIFT LEVER LH

25619-17K00

$5.13

40

SENSOR ASSY,GEAR POSITION

37730-17K00

$142.62

41

BOLT (5X16)

09106-05023

$2.80

42

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31

43

CLAMP (L:45)

09404-06429

$1.82

44

SENSOR & ROD SET

25501-17830

Unavailable

45

CLAMP (L:145)

09407-14407

$2.80
