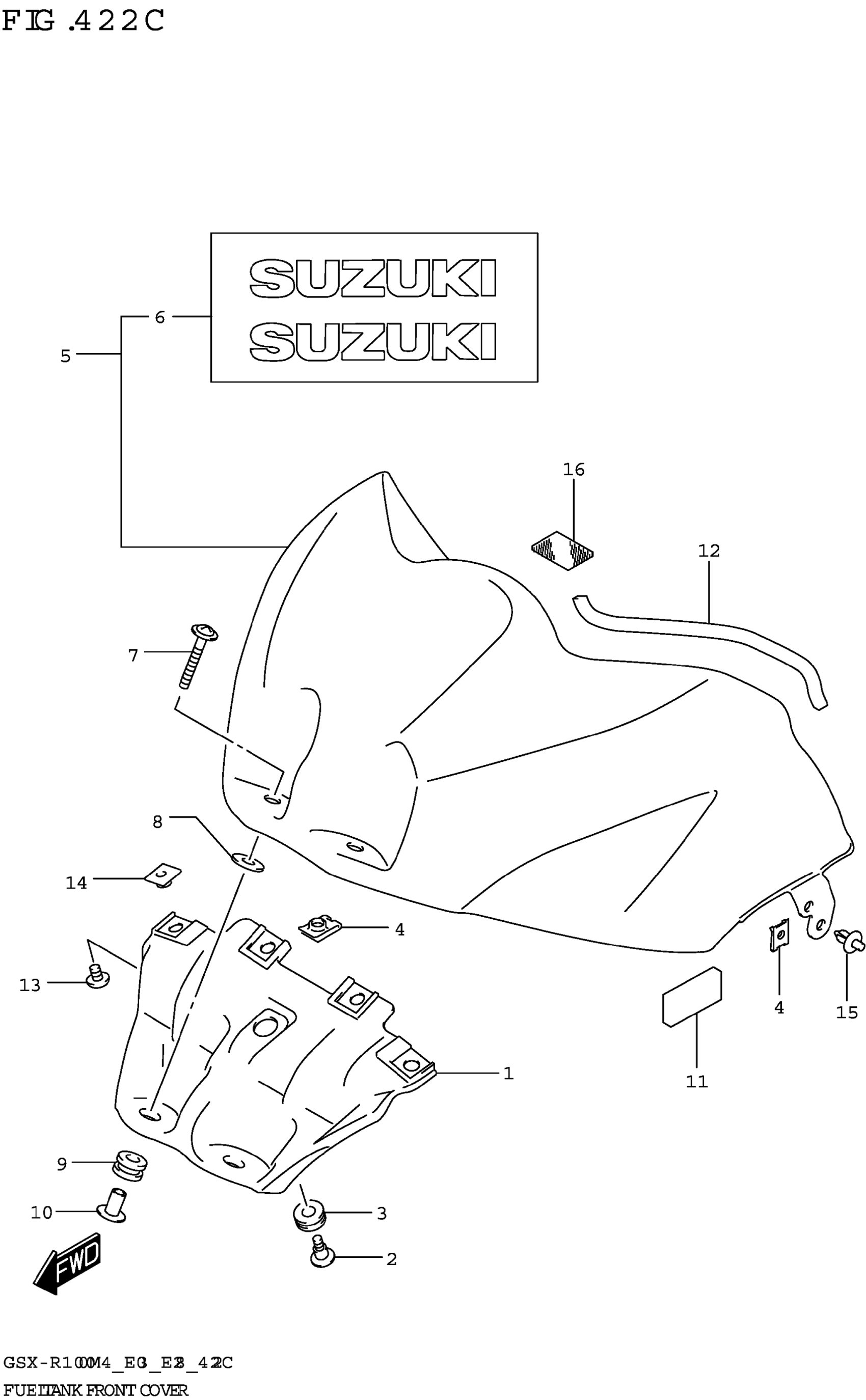

Suzuki GSX-R1000AM4 (2024) FUEL TANK FRONT COVER ((GSX-R1000A,GSX-R1000RA):E33) Diagram

BRACKET,FUEL TANK FRONT

44521-17K00

$86.32

SCREW (5X16.4)

09139-05078

$3.49

CUSHION (8.5X20X8)

09320-08510

$1.97

NUT (M5)

09148-05052

$3.37

COVER,FUEL TANK FR (GRAY) | BODY COLOR:QT7

44290-17KF0-QT7

$196.57

COVER,FUEL TANK FRONT (BLACK) | BODY COLOR:KGL

44290-17KF0-YVB

$179.08

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:QT7

68111-17K00-019

$24.11

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:KGL

68111-17K00-YES

$28.35

SCREW (6X40)

09139-06210

$4.82

WASHER This part replaces 09160-06012.

09160-06054

$1.62

CUSHION (10X22X13)

09320-10050

$3.35

SPACER,FUEL TANK FRONT

44512-17K00

$5.98

PROTECTOR (50X50X5) This part replaces 33652-21G00.

33652-20C00

$2.99

CUSHION,FUEL TANK COVER (L:38 | )

44277-17K00

$4.37

SCREW (6X10)

09139-06181

$3.83

NUT (M6)

44523-47H00

$10.02

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

FASTENER (20X15X2.6)

44572-44G00

$10.18
