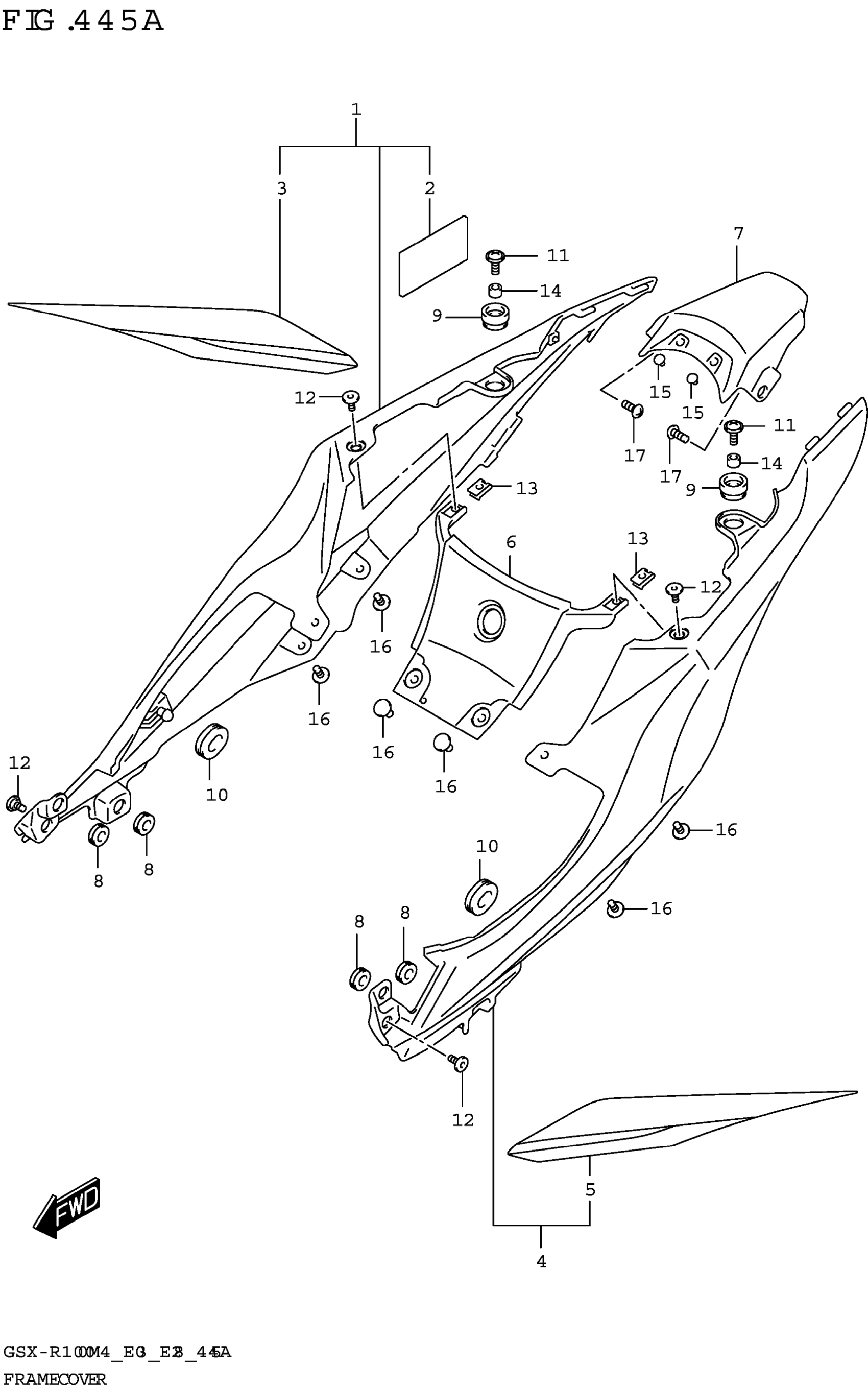

Suzuki GSX-R1000AM4 (2024) FRAME COVER (GSX-R1000A) Diagram

#

Description
Price

1-1

COVER,FRAME,R (GRAY) | BODY COLOR:QT7

47110-17KF0-QT7

$119.28

1-2

COVER,FRAME,R (BLACK) | BODY COLOR:KGL

47110-17KF0-4TX

$119.28

2

CUSHION (45X100X3)

33652-17K10

$3.88

3-1

.TAPE,FRAME COVER,R | BODY COLOR:QT7

68135-17K80-CGV

$28.52

3-2

.TAPE,FRAME COVER,R | BODY COLOR:KGL

68135-17K80-CQ1

$28.52

4-1

COVER,FRAME,L (GRAY) | BODY COLOR:QT7

47210-17KF0-QT7

$119.28

4-2

COVER,FRAME,L (BLACK) | BODY COLOR:KGL

47210-17KF0-4TX

$119.28

5-1

.TAPE,FRAME COVER,L | BODY COLOR:QT7

68145-17K80-CGV

$28.52

5-2

.TAPE,FRAME COVER,L | BODY COLOR:KGL

68145-17K80-CQ1

$28.52

6

COVER,FRAME CENTER FRONT

47311-17K00

$30.67

7-1

COVER,FRAME CTR RR (GRAY) | BODY COLOR:QT7

47411-17K00-QT7

$57.38

7-2

COVER,FRAME CTR RR (BLACK) | BODY COLOR:KGL

47411-17K00-YKV

$70.33

8

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$4.16

9

CUSHION (10X24X13)

47312-37H10

$2.91

10

CUSHION

94478-14J00

$5.92

11

SCREW (6X16)

09139-06139

$3.23

12

SCREW (5X13)

09139-05092

$2.25

13

NUT (M5)

09148-05052

$3.37

14

SPACER (6.5X10X7)

09180-06283

$1.91

15

PLUG (OD:10)

09250-06017

$2.71

16

CLIP

09409-06328

$3.23

17

SCREW

03541-0516A

$1.49
