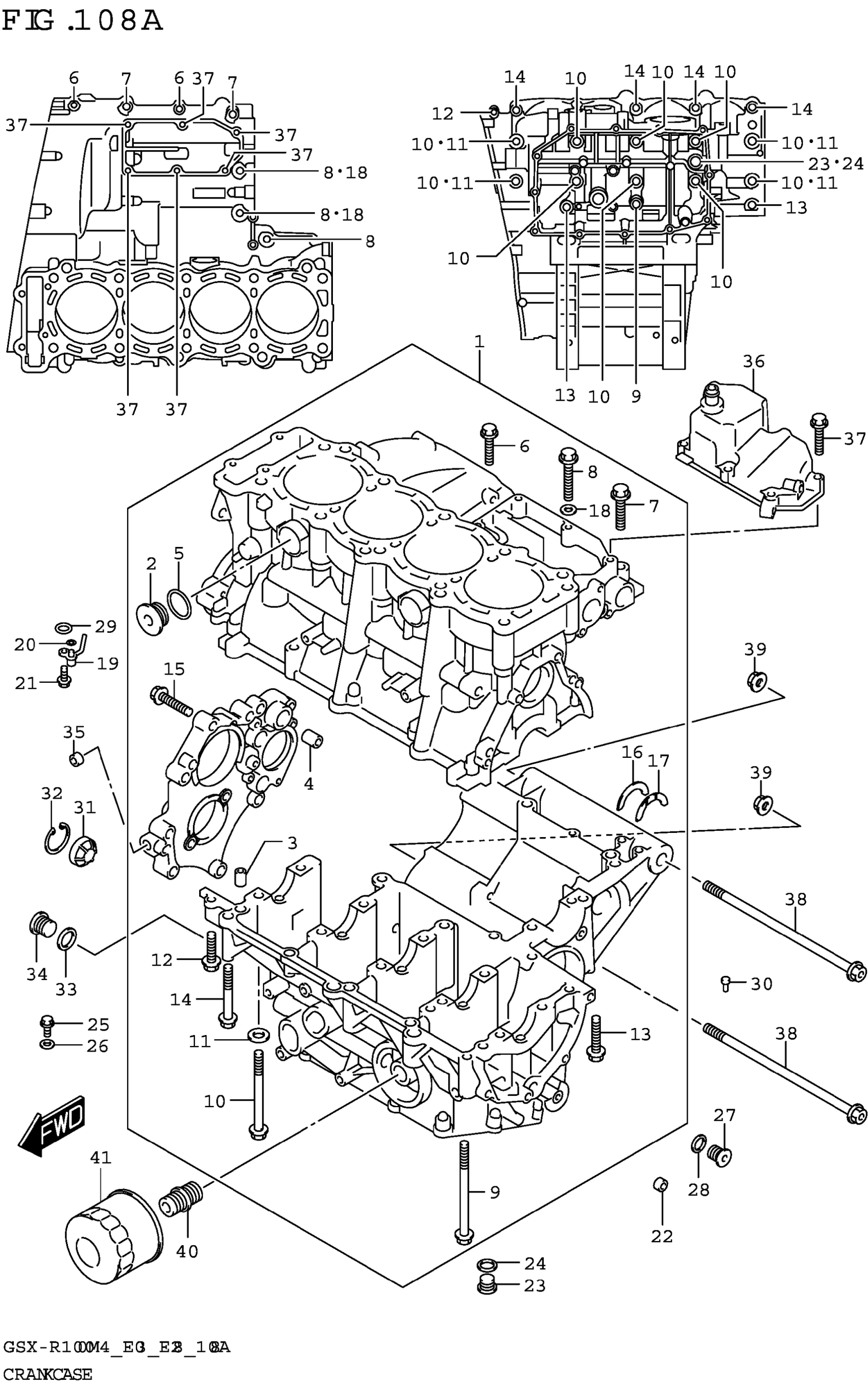

Suzuki GSX-R1000AM4 (2024) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-17810

$4,021.03

2

.PLUG,WATER JACKET

11318-35F00

$16.78

3

PIN,CRANKCASE

11319-33E50

$5.32

4

PIN,CRANKCASE

11319-33E50

$5.32

5

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.93

6

BOLT

01547-0635A

$2.30

7

BOLT

01550-0840A

$3.05

8

.BOLT

01550-0850A

$3.67

9

.BOLT (8X110)

09103-08134

$3.40

10

.BOLT (9X95)

09103-09012

$8.76

11

.GASKET (10.2X20X2.3)

09168-10031

$2.03

12

BOLT

01547-0635A

$2.30

13

BOLT

01550-0840A

$3.05

14

.BOLT

01550-0865A

$3.51

15

BOLT

07120-0835A

$3.55

16

.BEARING,CRANK THRUST

12228-48B00-0E0

$9.34

17-1

.BEARING,CRANK THRUST

12228-48B00-0B0

$11.57

17-2

.BEARING,CRANK THRUST

12228-48B00-0C0

$11.35

17-3

.BEARING,CRANK THRUST

12228-48B00-0D0

$11.78

17-4

.BEARING,CRANK THRUST

12228-48B00-0E0

$9.34

17-5

.BEARING,CRANK THRUST

12228-48B00-0F0

$11.78

17-6

.BEARING,CRANK THRUST

12228-48B00-0G0

$11.78

17-7

.BEARING,CRANK THRUST

12228-48B00-0H0

$9.66

18

GASKET (8.2X14X1)

09168-08016

$1.65

19

JET,PISTON COOLING

11390-17K00

$50.23

20

O-RING (D:1.2,ID:4)

09280-04004

$1.91

21

BOLT (6X12)

09106-06075

$2.48

22

PLUG This part replaces 09246-05006.

09246-04009

$4.25

23

PLUG (L:12)

09248-12004

$7.95

24

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

25

BOLT

01547-0612A

$2.03

26

GASKET (6.2X13X1.2)

09168-06018

$1.77

27

PLUG (10X10)

09248-10010

$4.17

28

GASKET (10X14X3.6)

09168-10002

$2.13

29

O-RING (D:1.9,ID:7.8)

09280-08012

$3.68

30

JET (#140)

09493-28012

$16.87

31

.LENS,OIL LEVEL CHECK

11971-33210

$18.20

32

.CIRCLIP

08331-4130A

$2.70

33

GASKET (16X22X2)

09168-16002

$1.91

34

PLUG (16X12)

09248-16013

$4.82

35

PLUG This part replaces 09246-05006.

09246-04009

$4.25

36

COVER,BREATHER

11380-17K00

$151.00

37

BOLT

01547-0630A

$2.32

38

BOLT (12X275)

09103-12078

$19.20

39

NUT

09159-12081

$7.22

40

UNION,OIL STAND

16591-06B01

$7.05

41

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$13.10
