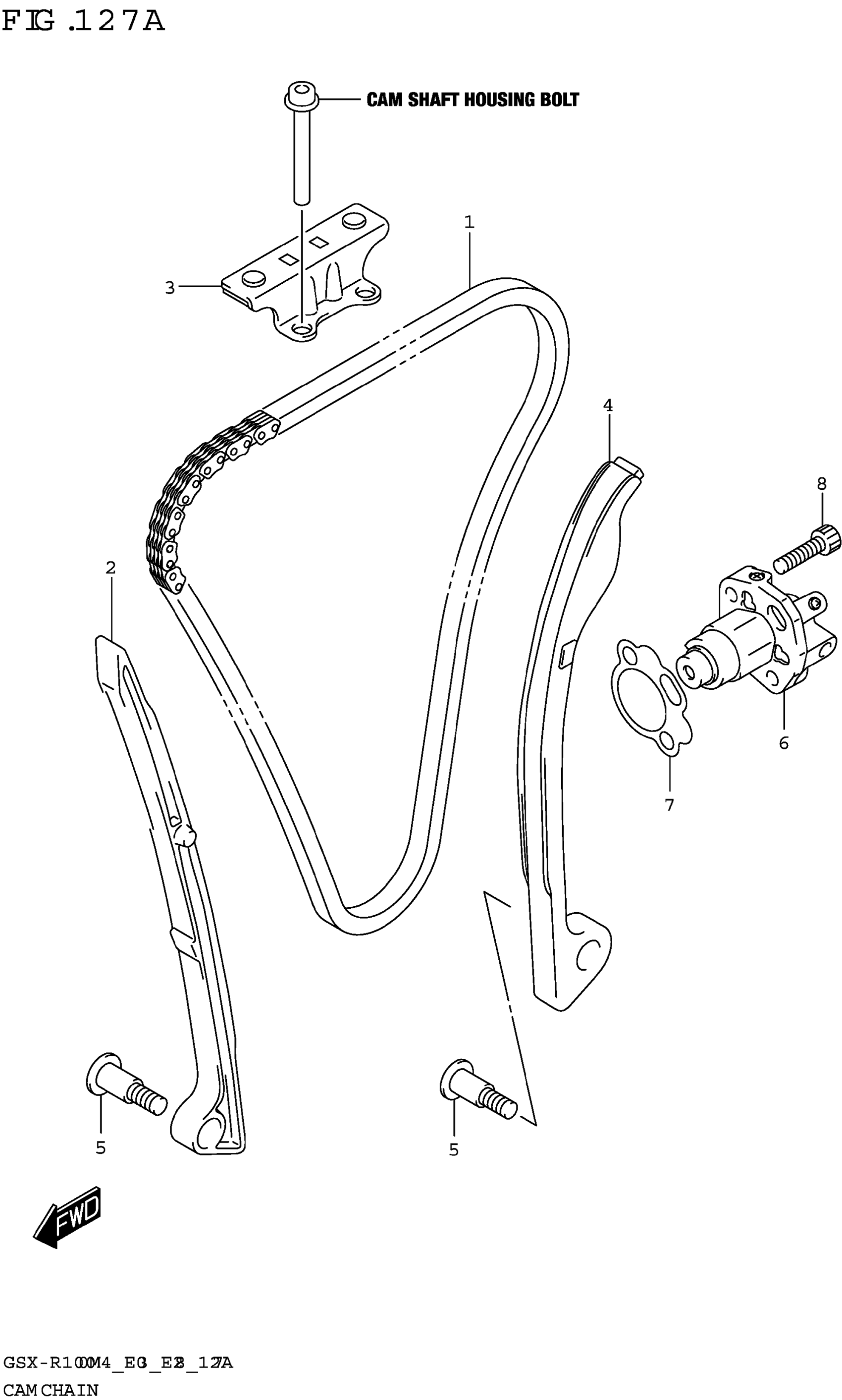

Suzuki GSX-R1000AM4 (2024) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAMSHAFT DRIVE

12760-40F01

$140.75

2

GUIDE,CAM CHAIN NO.1

12771-17K00

$36.50

3

GUIDE,CAM CHAIN NO.2

12782-35F11

$21.47

4

TENSIONER,CAM CHAIN

12811-17K01

$91.37

5

BOLT,CAM CHAIN TENSIONER

12812-31G00

$4.19

6

ADJUSTER ASSY,TENSIONER

12830-15H10

$254.80

7

.GASKET,TENSIONER ADJUSTER

12837-02H00

$5.91

8

BOLT (6X25)

07130-0625A

$2.64
