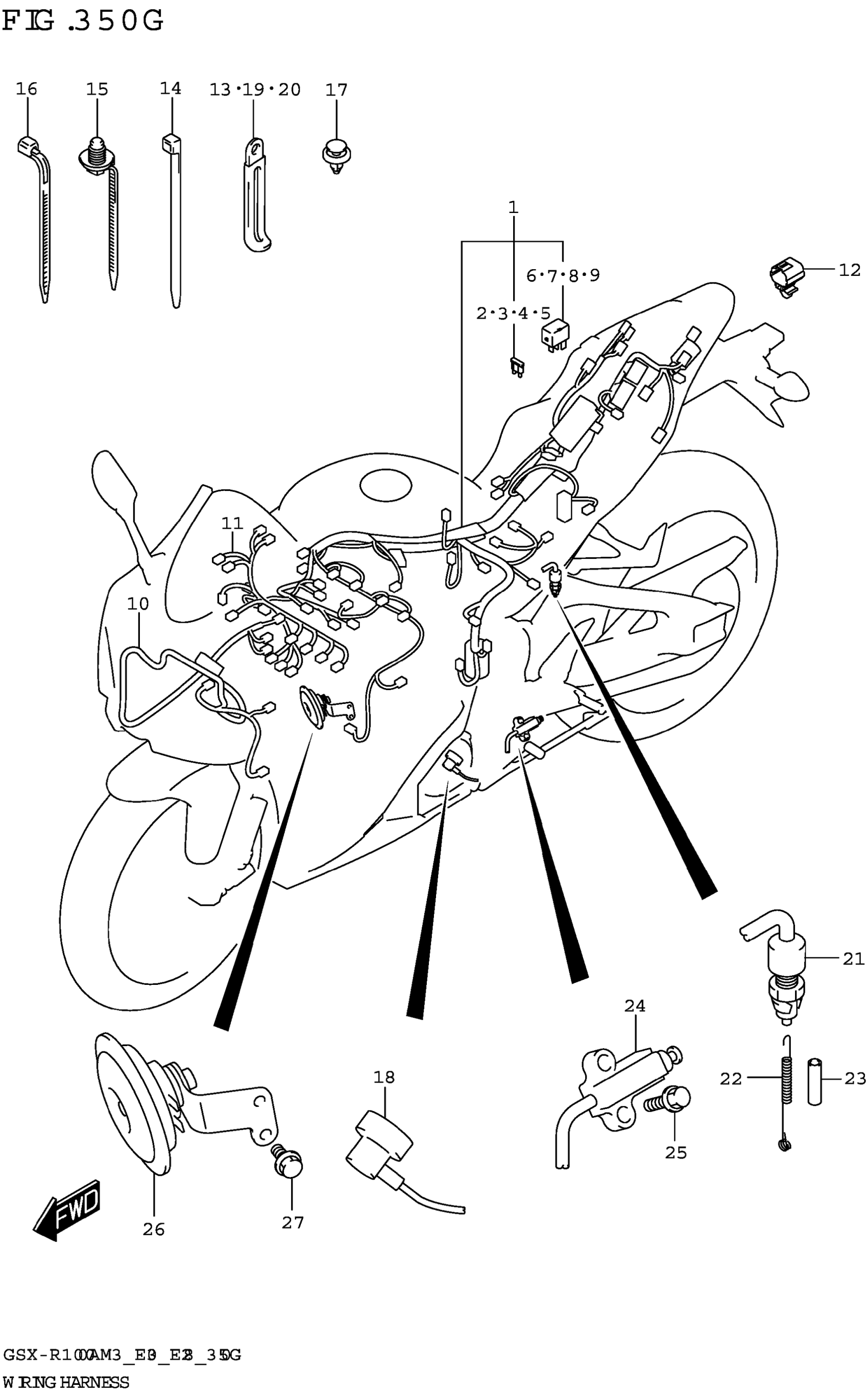

Suzuki GSX-R1000AM3 (2023) WIRING HARNESS (GSX-R1000A:E03,E28) Diagram

#

Description
Price

1

HARNESS,WIRING NO.1

36610-17KH0

$822.68

2

.FUSE (7.5A)

09481-07504

$1.49

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (30A)

09481-30504

$2.00

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$34.37

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$34.37

8

.RELAY ASSY | SIDE STAND

38860-76F01

$34.37

9

.RELAY ASSY | HEADLAMP

38860-76F01

$34.37

10

HARNESS,WIRING NO.2

36620-17K20

$238.68

11

HARNESS,WIRING NO.3

36630-17K00

$201.25

12

CAP,TS

36654-06J31

$14.53

13

CLAMP (L:45)

09404-06429

$1.83

14

CLAMP (L:145)

09407-14407

$3.57

15

CLAMP (L:170)

09407-17403

$4.91

16

CLAMP (L:125)

09407-14403

$2.26

17

CLIP

09409-06328

$3.23

18

WIRE,OIL PRESSURE SWITCH LEAD

36851-17K00

Unavailable

19

CLAMP (L:45)

09404-06429

$1.83

20

CLAMP (L:80)

09404-06030

Unavailable

21

SWITCH ASSY,STOP LAMP

37740-17K00

$25.37

22

SPRING

43232-17K00

$4.77

23

HOSE (5X8.2X60)

09352-50005-060

Unavailable

24

SWITCH ASSY,SIDE STAND This part replaces 37840-35F01.

37840-35F02

$56.65

25

BOLT (6X20)

01550-0620A

$1.97

26

HORN ASSY

38500-17K00

$66.93

27

BOLT

01550-0612A

$1.97
