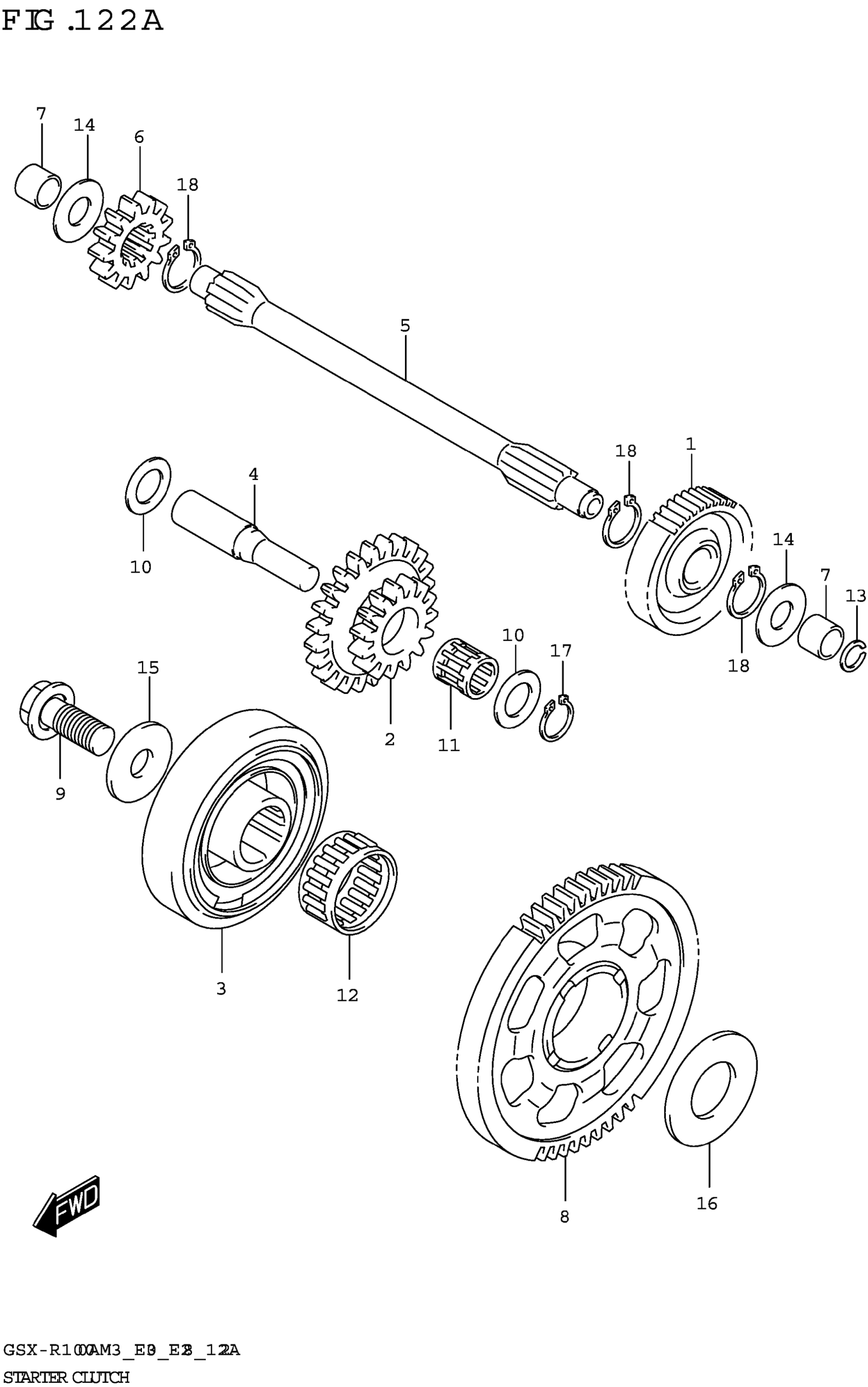

Suzuki GSX-R1000AM3 (2023) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR,STARTER IDLE NO.1 (NT:45

12611-17K00

$69.03

2

GEAR,STARTER IDLE NO.2 (NT:15 | 24)

12612-47H00

$102.17

3

CLUTCH,STARTER ONE WAY

12614-17K00

$271.72

4

PIN,STARTER IDLE GEAR NO.2

12615-17K00

$22.02

5

SHAFT,STARTER IDLE GEAR NO.1

12616-17K00

$86.88

6

GEAR,LIMITER DRIVEN (NT:13)

12617-47H00

$51.82

7

BUSH,LIMITER GEAR SHAFT

12618-31G00

$4.03

8

GEAR,STARTER CLUTCH (NT:49)

12622-17K00

$127.50

9

BOLT (10X23)

09103-10189

$4.04

10

SHIM (12X20X1)

09181-12167

$2.26

11

BEARING (12X16X16)

09263-12023

$10.19

12

BEARING (26X31X16)

09263-26035

$71.72

13

CIRCLIP

09380-09003

$1.67

14

WASHER

08211-10221

$2.28

15

WASHER

08211-10285

$3.49

16

WASHER

08211-20403

$4.32

17

CIRCLIP

08331-3112A

$1.78

18

CIRCLIP

08331-3115A

$2.25
