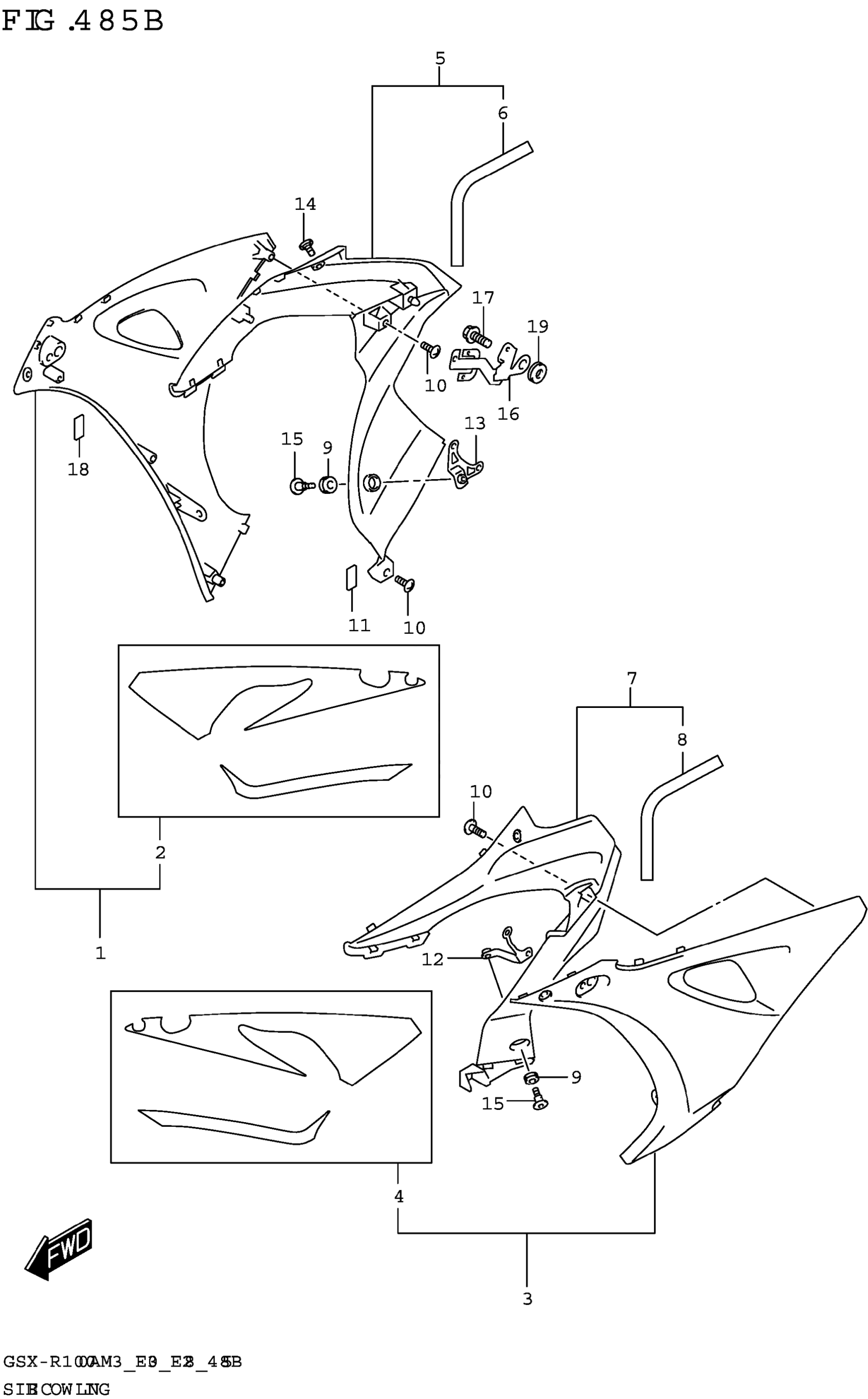

Suzuki GSX-R1000AM3 (2023) SIDE COWLING (GSX-R1000RA) Diagram

#

Description
Price

1-1

COWLING,SIDE FRONT,R (WHITE) | BODY COLOR:B5N

94470-17KA0-YUH

$261.53

1-2

COWLING,SIDE FRONT,R (BLACK) | BODY COLOR:KGL

94470-17KA0-YKV

$261.53

2-1

.TAPE SET,SIDE COWLING,R | BODY COLOR:B5N

68680-17KA0-CNG

$79.63

2-2

.TAPE SET,SIDE COWLING,R (YEL | OW,BLACK) BODY COLOR:KGL

68680-17KA0-BNV

$79.63

3-1

COWLING,SIDE FRONT,L (WHITE) | BODY COLOR:B5N

94480-17KA0-YUH

$261.53

3-2

COWLING,SIDE FRONT,L (BLACK) | BODY COLOR:KGL

94480-17KA0-YKV

$261.53

4-1

.TAPE SET,SIDE COWLING,L | BODY COLOR:B5N

68690-17KA0-CNG

$79.63

4-2

.TAPE SET,SIDE COWLING,L (YEL | OW,BLACK) BODY COLOR:KGL

68690-17KA0-BNV

$79.63

5-1

COWLING,SIDE REAR,R (BLUE) | BODY COLOR:B5N

94450-17K00-YUA

$190.22

5-2

COWLING,SIDE REAR,R (BLACK) | BODY COLOR:KGL

94450-17K00-YVB

$168.32

6

.CUSHION,SIDE REAR,R NO.1

94477-17K00

$4.63

7-1

COWLING,SIDE REAR,L (BLUE) | BODY COLOR:B5N

94460-17K00-YUA

$190.22

7-2

COWLING,SIDE REAR,L (BLACK) | BODY COLOR:KGL

94460-17K00-YVB

$168.32

8

.CUSHION,SIDE REAR,L NO.1

94487-17K00

$2.33

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

SCREW

03541-0516A

$1.37

11

CUSHION,SIDE REAR,R NO.3

94477-17K20

$2.22

12

BRACKET,UNDER COWL,L

94520-17K00

$12.32

13

BRACKET,UNDER COWL,R

94540-17K00

$3.59

14

SCREW (5X13)

09139-05091

$2.01

15

SCREW (6X20)

09139-06206

$2.99

16

BRACKET,SIDE COWL,R

94530-17K00

$30.58

17

BOLT

01550-0616A

$1.97

18

.COVER (30X45X2)

36930-60A10

$2.80

19

CUSHION

94478-14J00

$5.42
