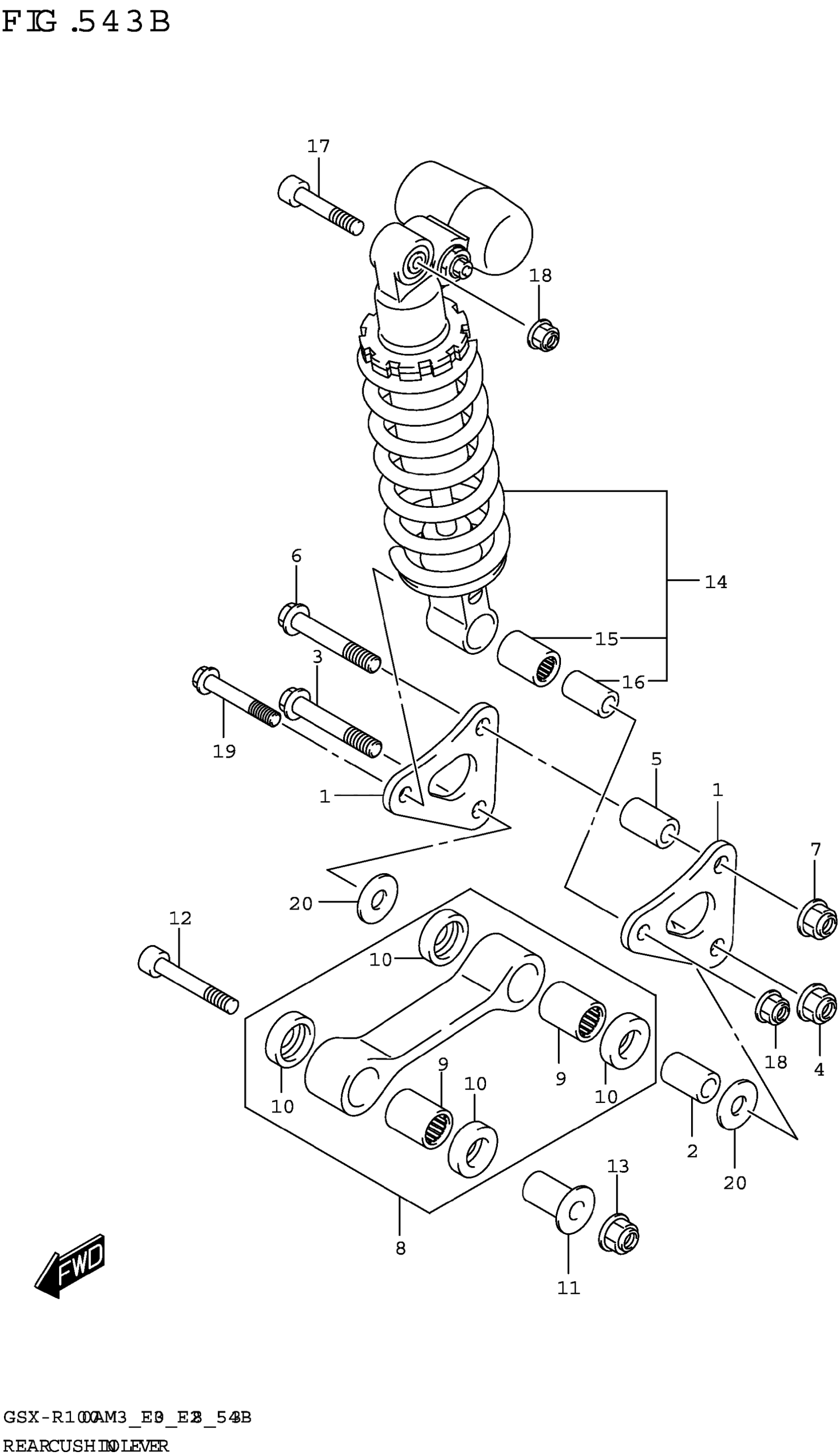

Suzuki GSX-R1000AM3 (2023) REAR CUSHION LEVER (GSX-R1000A) Diagram

LEVER,REAR CUSHION

62611-17K00

$24.52

SPACER, LOWER This part replaces 62317-00B20.

62317-27C10

$16.76

BOLT,RR CUSHION LEVER

62658-47H00

$10.75

NUT

09159-12056

$7.37

SPACER,RR CUSHION LEVER FR

62317-44B00

$21.03

BOLT,RR CUSHION LEVER

62658-47H00

$10.75

NUT

09159-12056

$7.37

ROD SET,RR CUSHION

62600-47820

$104.90

.BEARING (20X27X20)

09263-20063

Unavailable

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

SPACER,RR CUSHION ROD FR

62647-47H00

$35.28

BOLT,RR CUSHION ROD

62658-04K00

$14.37

NUT

09159-12056

$7.37

ABSORBER ASSY,REAR SHOCK (BLA | K)

62100-17820-019

$1,058.25

BEARING (17X24X32)

09263-17046

$41.45

SPACER,RR SHOCK ABS LWR

62317-47H00

$20.45

BOLT,RR SHOCK ABS UPPER

62658-04K10

$14.37

NUT (M10)

09159-10115

$3.55

BOLT,RR SHOCK ABSORBER LWR (1 | X55)

62313-47H00

$11.95

WASHER (12X34X1.0)

09160-12037

$3.83
