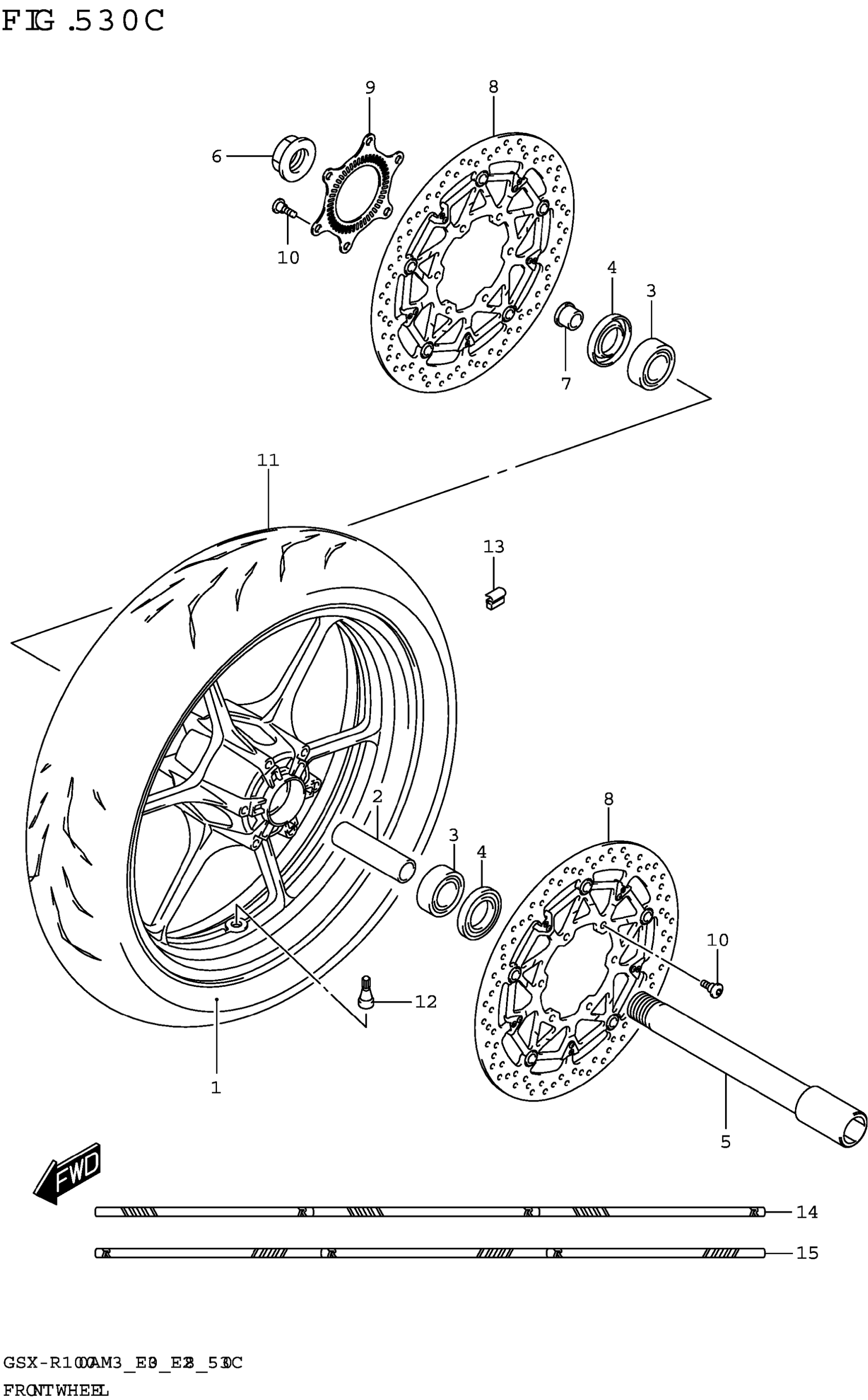

Suzuki GSX-R1000AM3 (2023) FRONT WHEEL (GSX-R1000RZA) Diagram

WHEEL,FRONT (17M/CXMT3.50,BLA | K)

54111-17K00-019

$761.93

SPACER,FR HUB BEARING

54731-35F10

$37.45

BEARING (25X52X15)

09262-25191

$24.28

.SEAL,OIL (32X52X7)

09285-32004

$7.98

AXLE,FR

54711-47H00

$155.15

NUT,FR AXLE

54712-47H00

$41.53

SPACER,FR AXLE,R

54751-41G10

$19.66

DISC,FRONT BRAKE

59210-17K01

$468.45

RING,SPEED SENSOR FR (48T)

54162-47H00

$114.17

BOLT (6X23)

09106-06134

$3.18

TIRE,FRONT (120/70ZR17M/C 58W This part replaces 55110-17K20.

55110-17K21

$181.32

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER,WHEEL (10G)

55411-22H00

$8.60

BALANCER,WHEEL (20G)

55412-22H00

$10.07

BALANCER,WHEEL (30G)

55413-22H00

$11.47

TAPE,WHEEL,R (YELLOW,BLACK)

68251-17K20-G7Z

$66.38

TAPE,WHEEL,L (YELLOW,BLACK)

68252-17K20-G7Z

$66.38
