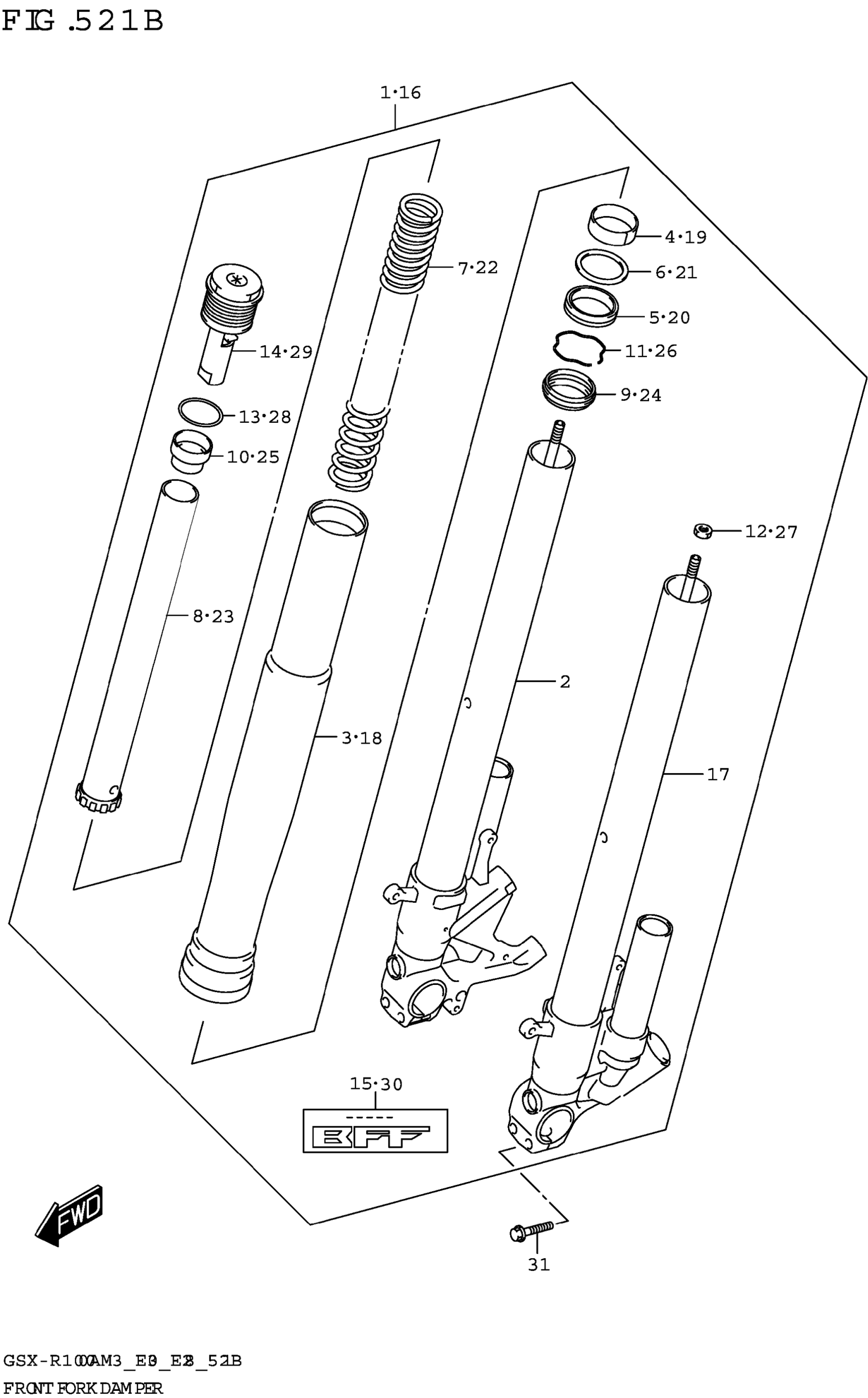

Suzuki GSX-R1000AM3 (2023) FRONT FORK DAMPER (GSX-R1000RA,GSX-R1000RZA) Diagram

#

Description
Price

1

DAMPER ASSY,FR,R

51103-17K31

$3,871.90

2

.TUBE,INNER,R

51110-17K30

$3,538.42

3

.TUBE,OUTER

51131-17K10

$682.77

4

.BUSH, GUIDE

51152-47H00

$13.01

5

.SEAL,OIL

51153-27G00

$21.12

6

.SPACER,SEAL

51168-29G00

$8.65

7

.SPRING

51171-17K10

$145.17

8

.SPRING COLLAR

51198-17K10

$138.20

9

.SEAL, DUST

51173-27G00

$24.34

10

.SPRING COLLAR

51175-17K10

$71.43

11

.RING,STOPPER

51556-38B00

$6.61

12

..NUT

51827-29G00

Unavailable

13

..O-RING

51187-47H00

$6.52

14

.BOLT

51189-17K30

$266.80

15

.LABEL

68281-17K10

$8.48

16

DAMPER ASSY,FR,L

51104-17K31

$3,871.90

17

.TUBE,INNER,LH

51120-17K30

$3,452.12

18

.TUBE,OUTER

51131-17K10

$682.77

19

.BUSH, GUIDE

51152-47H00

$13.01

20

.SEAL,OIL

51153-27G00

$21.12

21

.SPACER,SEAL

51168-29G00

$8.65

22

.SPRING

51171-17K10

$145.17

23

.SPRING COLLAR

51198-17K10

$138.20

24

.SEAL, DUST

51173-27G00

$24.34

25

.SPRING COLLAR

51175-17K10

$71.43

26

.RING,STOPPER

51556-38B00

$6.61

27

..NUT

51827-29G00

Unavailable

28

..O-RING

51187-47H00

$6.52

29

.BOLT

51189-17K30

$266.80

30

.LABEL

68281-17K10

$8.48

31

BOLT

51321-36F00

$5.44
