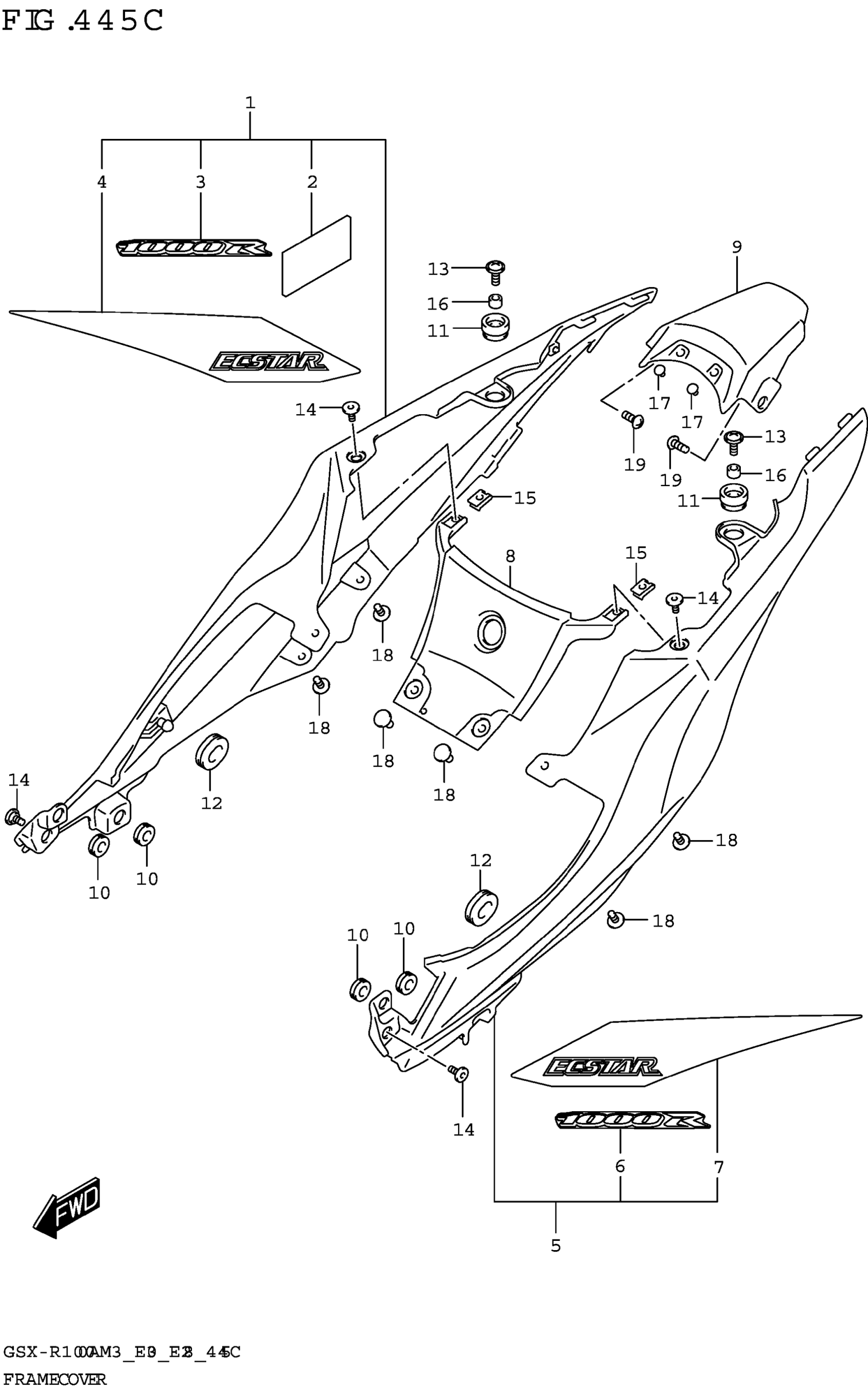

Suzuki GSX-R1000AM3 (2023) FRAME COVER (GSX-R1000RZA) Diagram

#

Description
Price

1

COVER,FRAME,R (SILVER)

47110-17KE0-YMD

$127.02

2

CUSHION (45X100X3)

33652-17K10

$3.88

3

.EMBLEM,FRAME COVER

68131-17K00-CNJ

$13.60

4

.TAPE,FRAME COVER,R

68135-17K90-CNH

$27.73

5

COVER,FRAME,L (SILVER)

47210-17KE0-YMD

$127.02

6

.EMBLEM,FRAME COVER

68131-17K00-CNJ

$13.60

7

.TAPE,FRAME COVER,L

68145-17K90-CNH

$27.73

8

COVER,FRAME CENTER FRONT

47311-17K00

$30.67

9

COVER,FRAME CTR RR (SILVER)

47411-17K00-YMD

$60.17

10

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$4.16

11

CUSHION (10X24X13)

47312-37H10

$2.91

12

CUSHION

94478-14J00

$5.92

13

SCREW (6X16)

09139-06139

$3.23

14

SCREW (5X13)

09139-05092

$2.25

15

NUT (M5)

09148-05052

$3.37

16

SPACER (6.5X10X7)

09180-06283

$1.91

17

PLUG (OD:10)

09250-06017

$2.71

18

CLIP

09409-06328

$3.23

19

SCREW

03541-0516A

$1.49
