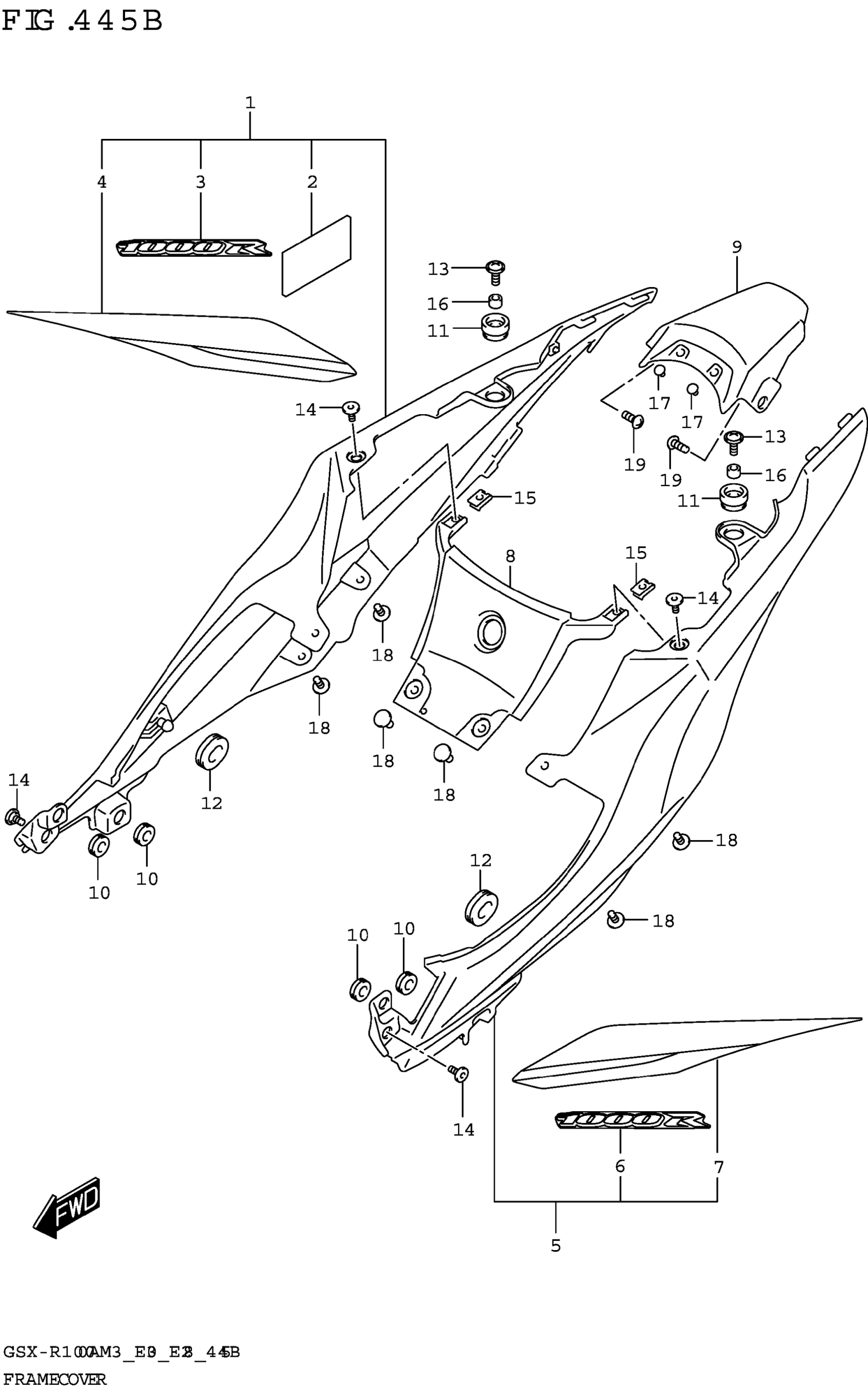

Suzuki GSX-R1000AM3 (2023) FRAME COVER (GSX-R1000RA) Diagram

#

Description
Price

1-1

COVER,FRAME,R (WHITE) | BODY COLOR:B5N

47110-17KD0-YUH

$127.02

1-2

COVER,FRAME,R (BLACK) | BODY COLOR:KGL

47110-17KD0-YKV

$127.02

2

CUSHION (45X100X3)

33652-17K10

$3.88

3-1

.EMBLEM,FRAME COVER | BODY COLOR:B5N

68131-17K00-CNA

$13.60

3-2

.EMBLEM,FRAME COVER | BODY COLOR:KGL

68131-17K00-CNB

$13.60

4-1

.TAPE,FRAME COVER,R | BODY COLOR:B5N

68135-17K80-CM8

$30.37

4-2

.TAPE,FRAME COVER,R | BODY COLOR:KGL

68135-17K80-CM9

$30.37

5-1

COVER,FRAME,L (WHITE) | BODY COLOR:B5N

47210-17KD0-YUH

$127.02

5-2

COVER,FRAME,L (BLACK) | BODY COLOR:KGL

47210-17KD0-YKV

$127.02

6-1

.EMBLEM,FRAME COVER | BODY COLOR:B5N

68131-17K00-CNA

$13.60

6-2

.EMBLEM,FRAME COVER | BODY COLOR:KGL

68131-17K00-CNB

$13.60

7-1

.TAPE,FRAME COVER,L | BODY COLOR:B5N

68145-17K80-CM8

$30.37

7-2

.TAPE,FRAME COVER,L | BODY COLOR:KGL

68145-17K80-CM9

$30.37

8

COVER,FRAME CENTER FRONT

47311-17K00

$30.67

9-1

COVER,FRAME CENTER REAR (WHIT | ) BODY COLOR:B5N

47411-17K00-YUH

$52.27

9-2

COVER,FRAME CTR RR (BLACK) | BODY COLOR:KGL

47411-17K00-YKV

$70.33

10

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$4.16

11

CUSHION (10X24X13)

47312-37H10

$2.91

12

CUSHION

94478-14J00

$5.92

13

SCREW (6X16)

09139-06139

$3.23

14

SCREW (5X13)

09139-05092

$2.25

15

NUT (M5)

09148-05052

$3.37

16

SPACER (6.5X10X7)

09180-06283

$1.91

17

PLUG (OD:10)

09250-06017

$2.71

18

CLIP

09409-06328

$3.23

19

SCREW

03541-0516A

$1.49
