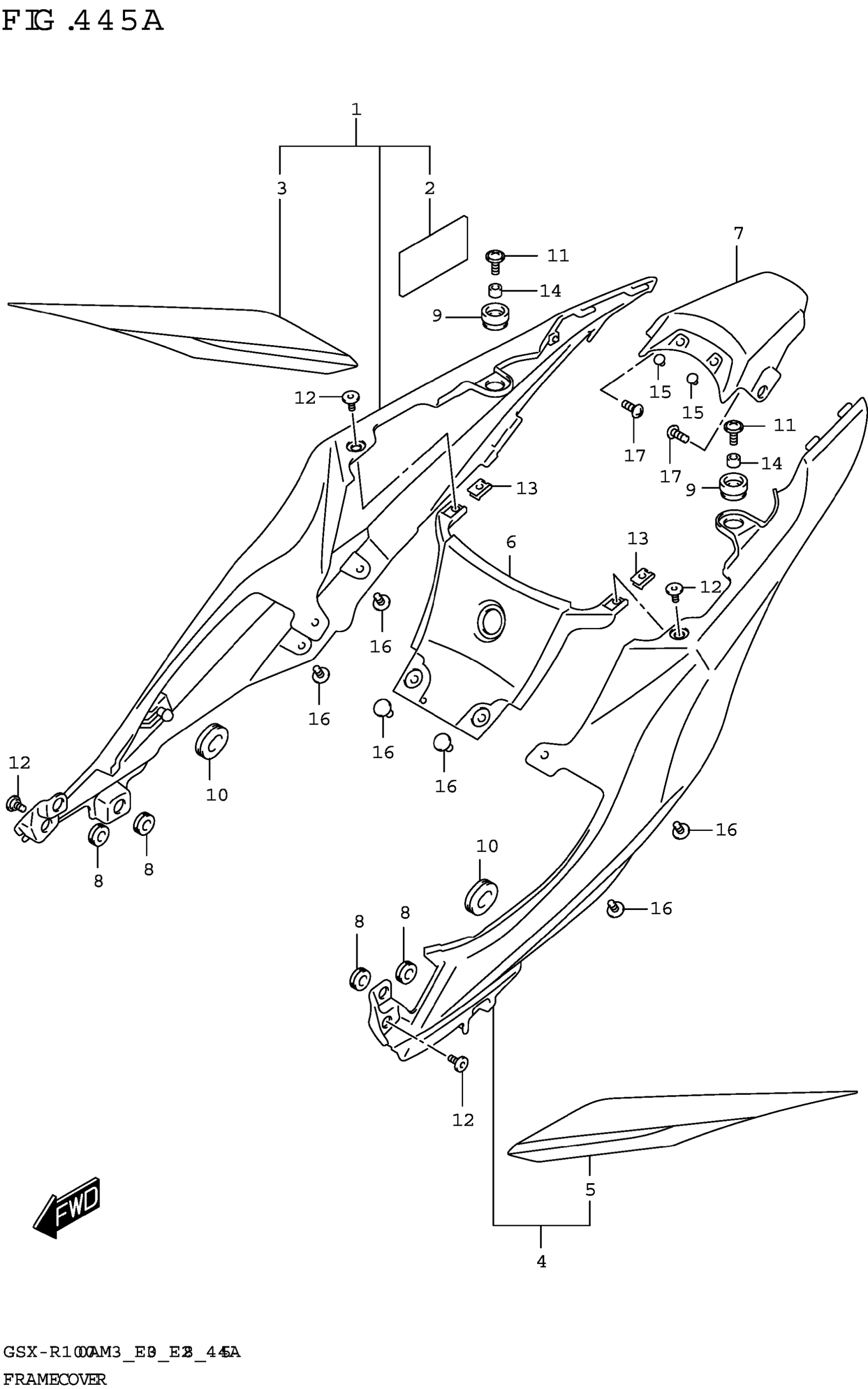

Suzuki GSX-R1000AM3 (2023) FRAME COVER (GSX-R1000A) Diagram

#

Description
Price

1-1

COVER,FRAME,R (WHITE) | BODY COLOR:B5N

47110-17KF0-YUH

$142.67

1-2

COVER,FRAME,R (BLACK) | BODY COLOR:KGL

47110-17KF0-YKV

$142.67

2

CUSHION (45X100X3)

33652-17K10

$4.38

3-1

.TAPE,FRAME COVER,R | BODY COLOR:B5N

68135-17K80-CM8

$34.27

3-2

.TAPE,FRAME COVER,R | BODY COLOR:KGL

68135-17K80-CM9

$34.27

4-1

COVER,FRAME,L (WHITE) | BODY COLOR:B5N

47210-17KF0-YUH

$142.67

4-2

COVER,FRAME,L (BLACK) | BODY COLOR:KGL

47210-17KF0-YKV

$142.67

5-1

.TAPE,FRAME COVER,L | BODY COLOR:B5N

68145-17K80-CM8

$34.27

5-2

.TAPE,FRAME COVER,L | BODY COLOR:KGL

68145-17K80-CM9

$34.27

6

COVER,FRAME CENTER FRONT

47311-17K00

$34.62

7-1

COVER,FRAME CENTER REAR (WHIT | ) BODY COLOR:B5N

47411-17K00-YUH

$58.98

7-2

COVER,FRAME CTR RR (BLACK) | BODY COLOR:KGL

47411-17K00-YKV

$79.38

8

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$3.92

9

CUSHION (10X24X13)

47312-37H10

$2.80

10

CUSHION

94478-14J00

$5.42

11

SCREW (6X16)

09139-06139

$2.92

12

SCREW (5X13)

09139-05092

$2.22

13

NUT (M5)

09148-05052

$3.04

14

SPACER (6.5X10X7)

09180-06283

$1.89

15

PLUG (OD:10)

09250-06017

$2.74

16

CLIP

09409-06328

$2.92

17

SCREW

03541-0516A

$1.37
