Description

Price

1

RELAY ASSY,STARTING MOTOR

31800-21E30

$61.62

2

.COVER

31861-47E00

$18.23

3

.FUSE (30A)

09481-30101

$2.28

4

PROTECTOR (30X60X3)

36920-08D00

Unavailable

5

SCREW (6X8)

09128-06013

$1.24

6

RECTIFIER ASSY

32800-26J02

$283.67

7

COIL ASSY,IGNITION

33410-17K01

$203.85

8

CONTROL UNIT,FI

32920-17KF3

$2,460.37

9

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.17

10

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

11

ACTUATOR ASSY This part replaces 33970-47H02.

33970-47H03

$465.78

12

BOLT (6X23)

09103-06066

Unavailable

13

CLAMP (L:100)

09407-10404

$2.71

14

WASHER

08322-0106A

$1.83

15

BRACKET,HARNESS

36670-17K00

Unavailable

16

BOLT

01547-0612A

$2.01

17

BRACKET,RECT FTG

32830-17K00

$63.22

18

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

19

CUSHION (8X18X10)

09320-08501

$2.95

20

SCREW

02142-0635A

$2.97

21

BOLT

07120-0620A

$2.80

22

BOLT

07120-0630B

$3.19

23

NUT (6X12)

08316-1006A

$2.19

24

SENSOR ASSY,CAM POSITION

33220-01H01

$98.86

25

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38

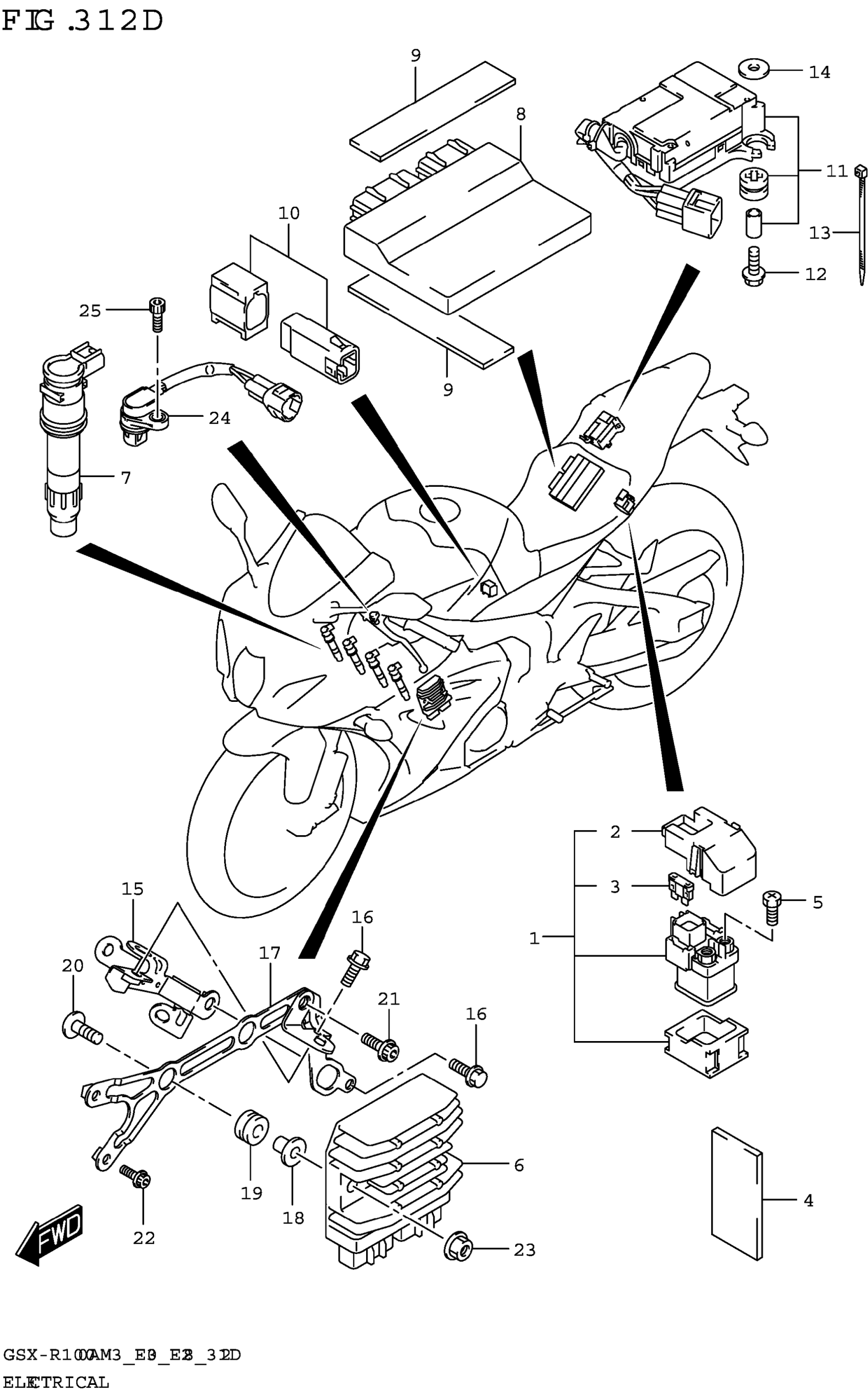

Suzuki GSX-R1000AM3 (2023) ELECTRICAL (GSX-R1000RA,GSX-R1000RZA:E03,E28) Diagram

RELAY ASSY,STARTING MOTOR

.COVER

.FUSE (30A)

PROTECTOR (30X60X3)

SCREW (6X8)

RECTIFIER ASSY

COIL ASSY,IGNITION

CONTROL UNIT,FI

PROTECTOR (80X80X2) This part replaces 33652-38A10.

SENSOR ASSY,FUEL CUT

ACTUATOR ASSY This part replaces 33970-47H02.

BOLT (6X23)

CLAMP (L:100)

WASHER

BRACKET,HARNESS

BOLT

BRACKET,RECT FTG

SPACER (6.2X8.4X10.9)

CUSHION (8X18X10)

SCREW

BOLT

BOLT

NUT (6X12)

SENSOR ASSY,CAM POSITION

BOLT This part replaces 07130-0616A.
