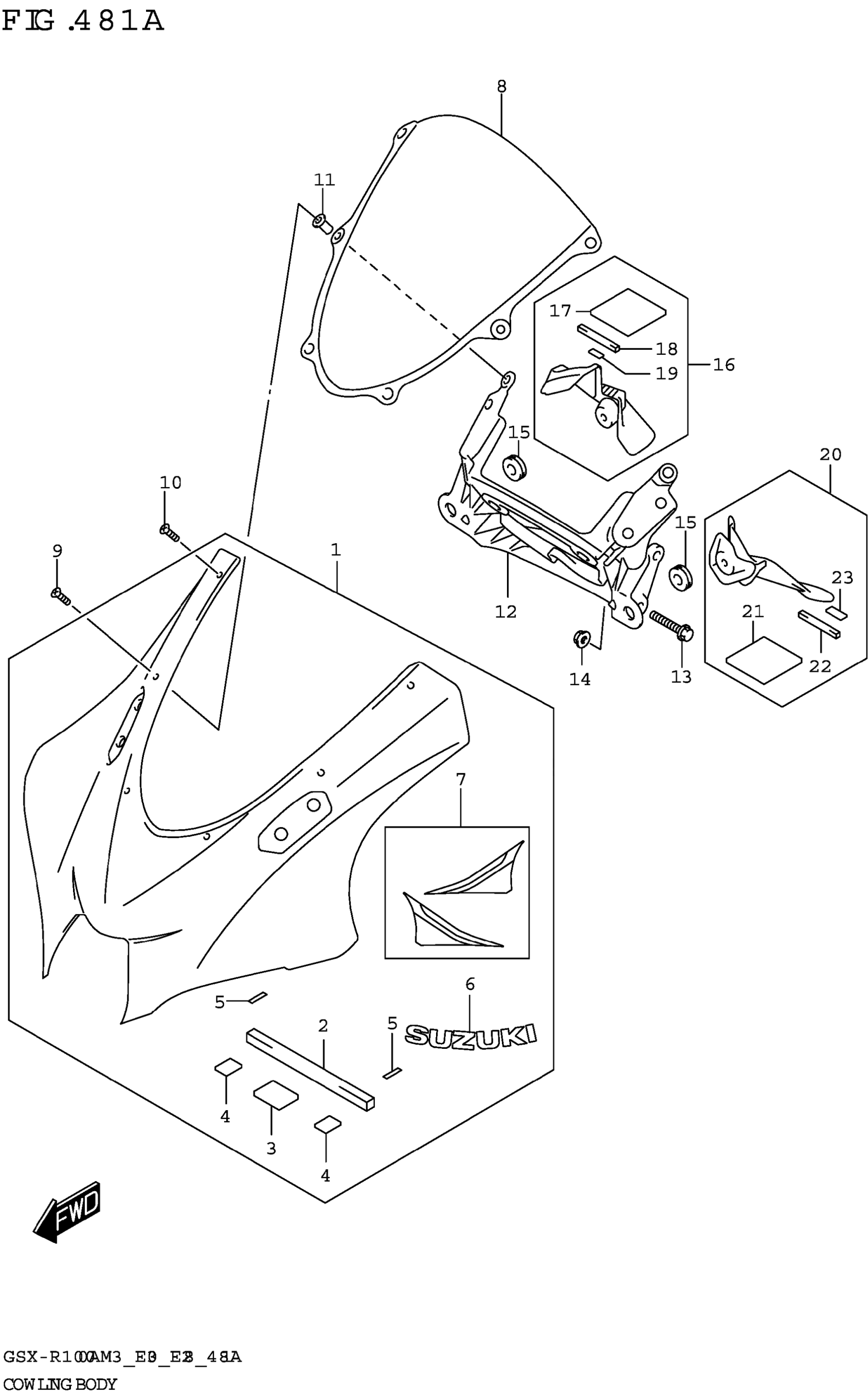

Suzuki GSX-R1000AM3 (2023) COWLING BODY (GSX-R1000A) Diagram

#

Description
Price

1-1

COWLING,BODY (BLUE) | BODY COLOR:B5N

94410-17K70-YUA

$270.57

1-2

COWLING,BODY (BLACK) | BODY COLOR:KGL

94410-17K70-YVB

$270.57

2

.CUSHION,FUEL TANK (L:160)

44192-44H00

$3.00

3

FASTENER (25X33X2.6)

44572-02F01

$11.07

4

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.83

5

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$3.95

6-1

.EMBLEM,SUZUKI (WHITE) | BODY COLOR:B5N

68275-17K30-YWW

$19.47

6-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:KGL

68275-17K30-YES

$15.88

7-1

.TAPE SET,COWLING BODY | BODY COLOR:B5N

68270-17K70-CNC

$41.55

7-2

.TAPE SET,COWLING BODY | BODY COLOR:KGL

68270-17K70-CND

$41.55

8

WINDSCREEN

94611-17K00

$99.22

9

SCREW,WINDSCREEN FRONT

94631-17K00

$4.93

10

SCREW,WINDSCREEN REAR

94621-17K00

$4.73

11

NUT (M5)

09159-05019

$7.14

12

BRACE,COWLING

94511-17K00

$171.97

13

BOLT (8X45)

09103-08207

$2.51

14

NUT

08313-2008A

$2.50

15

CUSHION (8X26X7)

09320-08028

$3.04

16

PANEL,METER,R

94630-17K00

$15.94

17

PROTECTOR (50X50X5) This part replaces 33652-21G00.

33652-20C00

$2.99

18

CUSHION (5X50X5)

44279-18K00

$4.53

19

PAD (8X20X2)

73415-70A00

$1.56

20

PANEL,METER,L

94640-17K00

$18.73

21

PROTECTOR (50X50X5) This part replaces 33652-21G00.

33652-20C00

$2.99

22

CUSHION (5X50X5)

44279-18K00

$4.53

23

PAD (8X20X2)

73415-70A00

$1.56
