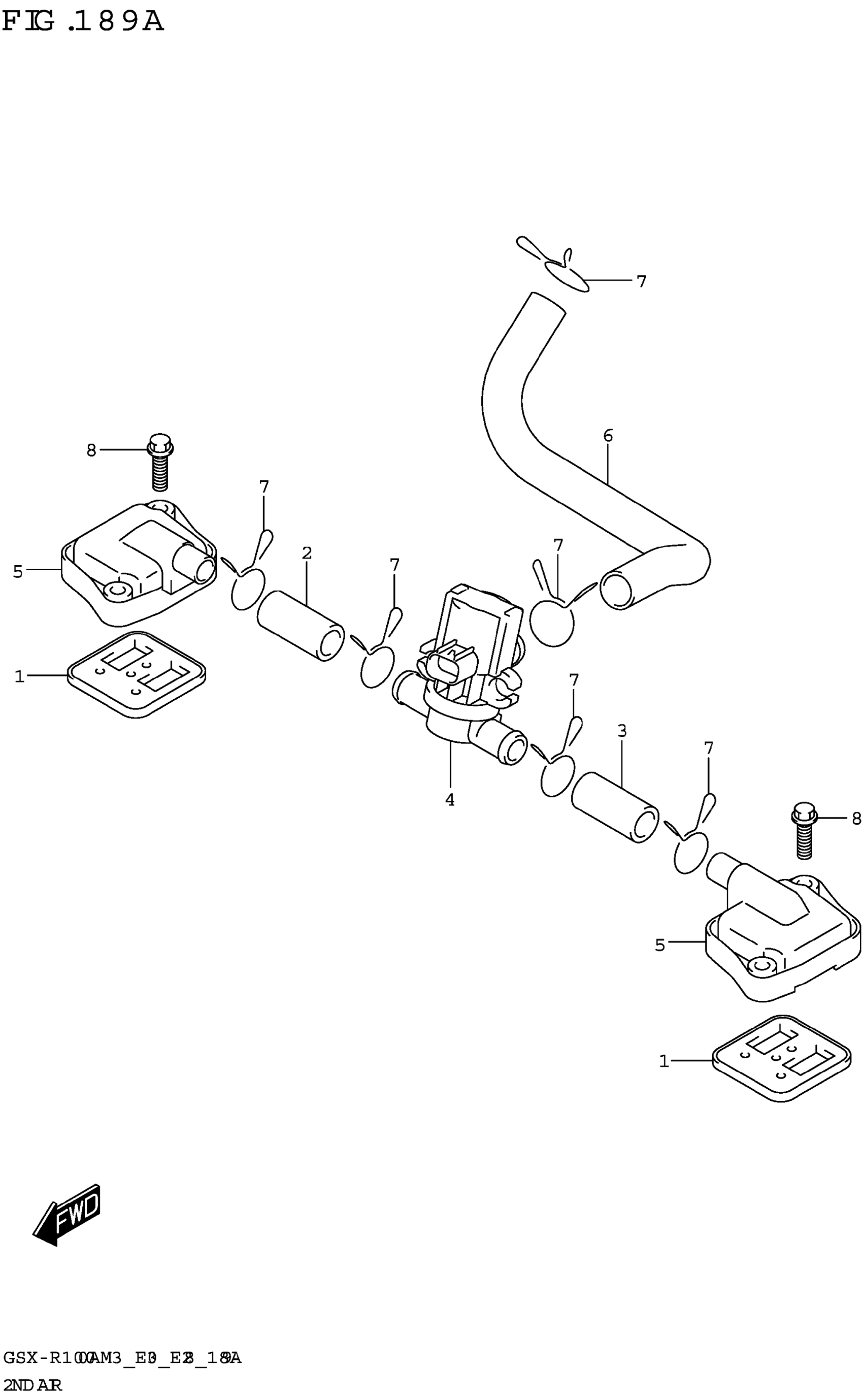

Suzuki GSX-R1000AM3 (2023) 2ND AIR Diagram

#

Description

Price

1

VALVE ASSY,2ND AIR REED

18450-35F60

$119.55

2

HOSE,2ND AIR VALVE,R

18461-47H00

Unavailable

3

HOSE,2ND AIR VALVE,L

18471-47H00

Unavailable

4

VALVE ASSY,AIR CUT

18510-29G70

$121.60

5

COVER,2ND AIR REED VALVE

18531-35F30

$15.07

6

HOSE,2ND AIR CLNR

18711-17K00

Unavailable

7

CLIP

09401-17201

$3.42

8

BOLT

01547-0620A

$2.01
