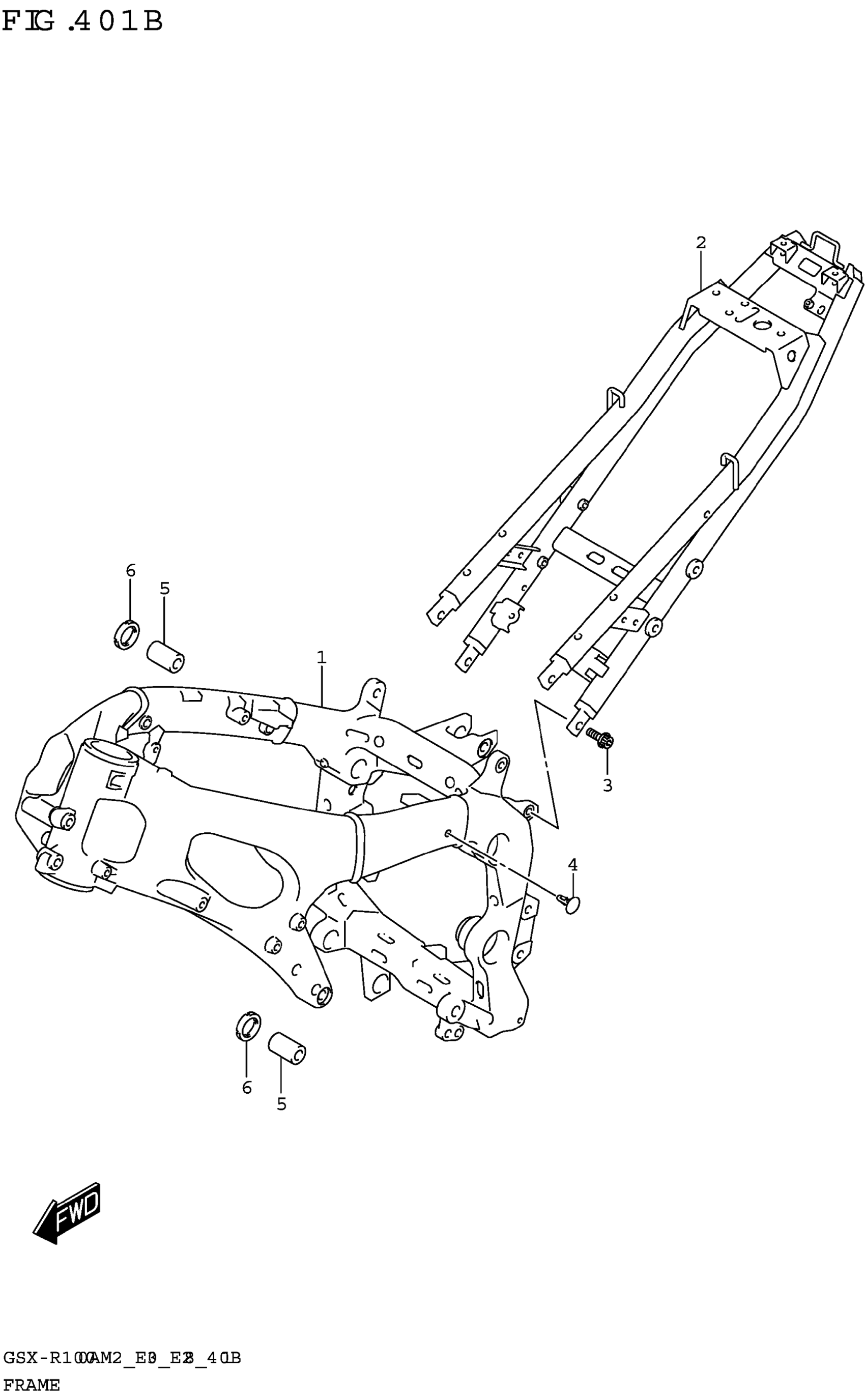

Suzuki GSX-R1000AM2 (2022) FRAME (GSX-R1000RA,GSX-R1000RZA) Diagram

#

Description

Price

1

FRAME

41100-17K20

$3,370.64

2

RAIL,SEAT

41200-17K10

$1,102.85

3

BOLT,SEAT RAIL

41233-18G30

$6.52

4

CLIP

09409-05303

$1.75

5

BOLT,CRANK CASE ADJUST

41921-47H00

$59.37

6

NUT,CRANK CASE ADJUST BOLT

41922-47H00

$42.23
