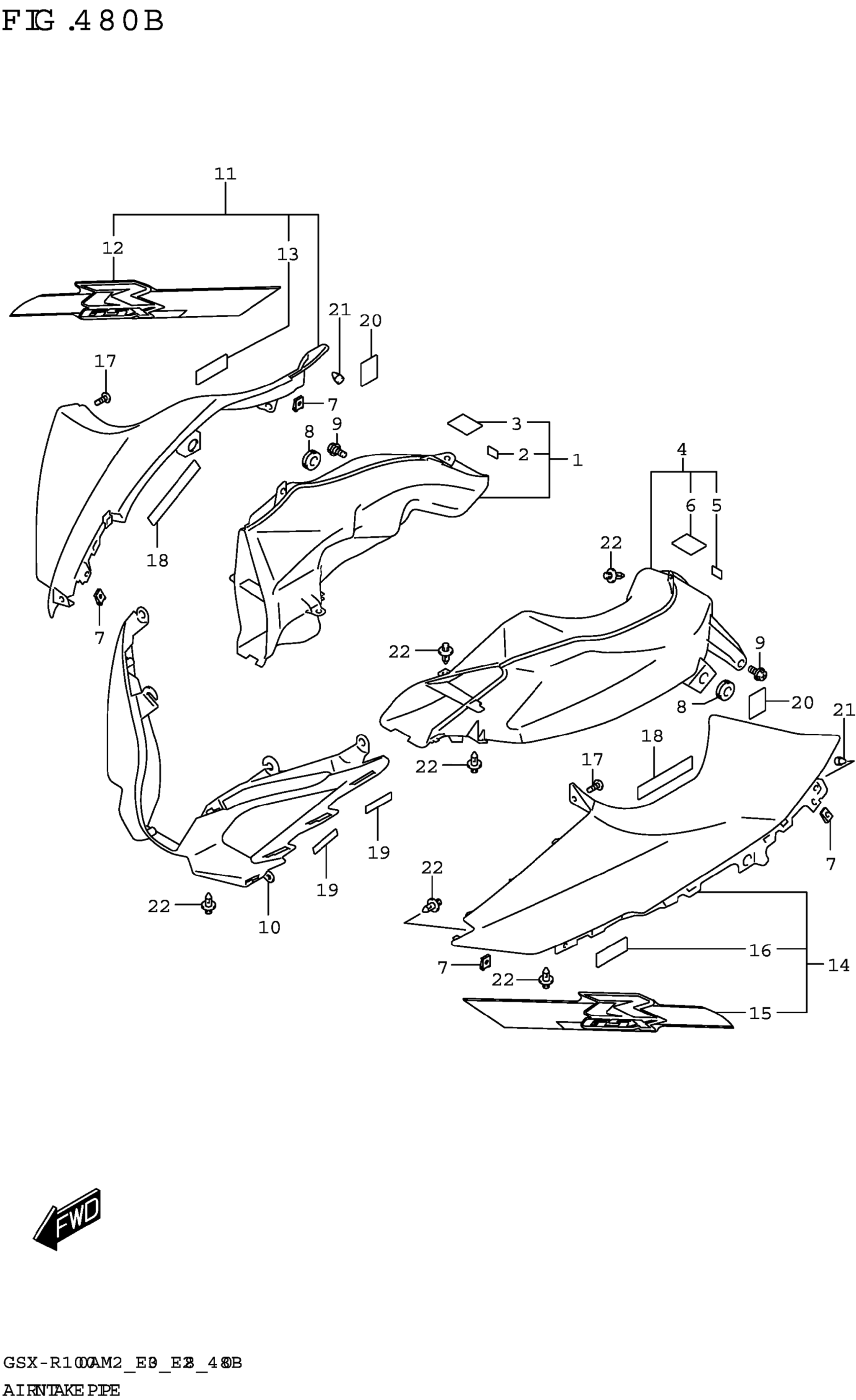

Suzuki GSX-R1000AM2 (2022) AIR INTAKE PIPE (GSX-R1000RA) Diagram

#

Description
Price

1

PIPE,AIR INTAKE,R

94420-17K00

$61.28

2

CUSHION (10X10X1)

63115-37H00

$3.64

3

.COVER (30X45X2)

36930-60A10

$2.92

4

PIPE,AIR INTAKE,L

94430-17K00

$72.08

5

CUSHION (10X10X1)

63115-37H00

$3.64

6

.COVER (30X45X2)

36930-60A10

$2.92

7

NUT (M5)

09148-05052

$3.37

8

CUSHION (8X26X7)

09320-08028

$3.04

9

BOLT (6X12)

09111-06106

$2.44

10-1

COVER,INTAKE (BLACK) | BODY COLOR:4TX

94671-17K00-YVB

$79.57

10-2

COVER,INTAKE (BLACK) | BODY COLOR:CB8

94671-17K00-YKV

$86.57

11-1

COVER,INTAKE,R (BLACK) | BODY COLOR:4TX

94670-17K70-4TX

$159.62

11-2

COVER,INTAKE,R (GRAY) | BODY COLOR:CB8

94670-17K70-QT7

$159.62

12-1

.TAPE,INTAKE COVER,R (SILVER, | RAY,BLACK,ORANG) BODY COLOR:4TX

68275-17K90-B92

$33.55

12-2

.TAPE,INTAKE COVER,R (GRAY,SI | VER,BLACK) BODY COLOR:CB8

68275-17K90-CGD

$33.55

13

PAD (8X20X2)

73415-70A00

$1.56

14-1

COVER,INTAKE,L (BLACK) | BODY COLOR:4TX

94680-17K70-4TX

$167.85

14-2

COVER,INTAKE,L (GRAY) | BODY COLOR:CB8

94680-17K70-QT7

$159.62

15-1

.TAPE,INTAKE COVER,L (SILVER, | RAY,BLACK,ORANG) BODY COLOR:4TX

68276-17K90-B92

$33.55

15-2

.TAPE,INTAKE COVER,L (GRAY,SI | VER,BLACK) BODY COLOR:CB8

68276-17K90-CGD

$33.55

16

PAD (8X20X2)

73415-70A00

$1.56

17

SCREW (5X12)

09132-05050

$1.92

18

COVER (30X100X2)

36930-82010

$3.05

19

CUSHION,SPOILER (6X25X2)

47161-40D10

$1.49

20

CUSHION (16X30X3.5)

94633-31J00

$2.44

21

CUSHION

09321-06036

$1.52

22

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78
