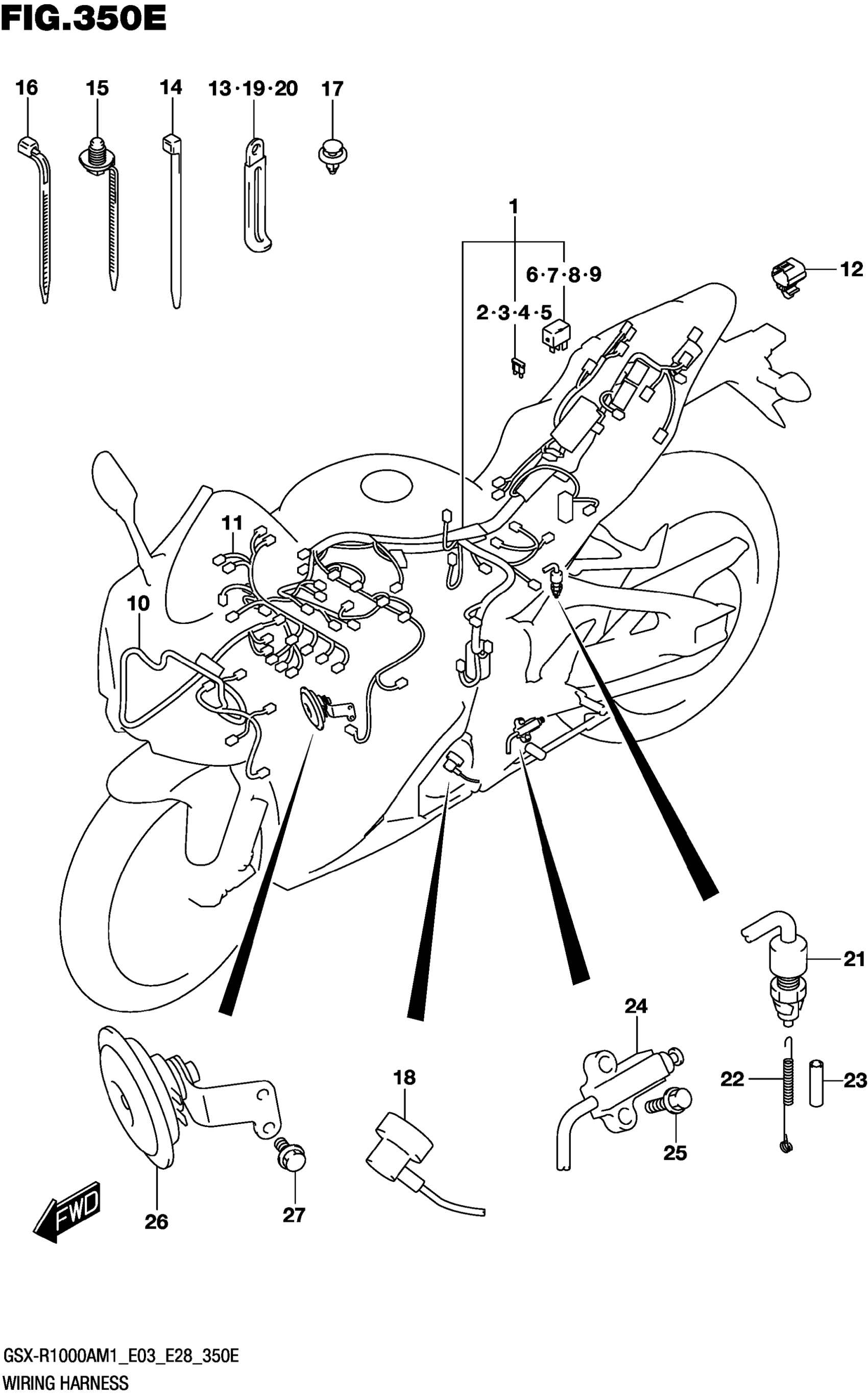

Suzuki GSX-R1000AM1 (2021) WIRING HARNESS (GSX-R1000RA,GSX-R1000RZA:E03,E28) Diagram

#

Description
Price

1

HARNESS,WIRING NO.1

36610-17KH0

$898.20

2

.FUSE (7.5A)

09481-07504

$1.28

3

.FUSE (10A)

09481-10504

$2.12

4

.FUSE (15A)

09481-15504

$2.57

5

.FUSE (30A)

09481-30504

$2.06

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$32.41

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$32.41

8

.RELAY ASSY | SIDE STAND

38860-76F01

$32.41

9

.RELAY ASSY | HEADLAMP

38860-76F01

$32.41

10

HARNESS,WIRING NO.2

36620-17K30

$280.00

11

HARNESS,WIRING NO.3

36630-17K00

$223.95

12

CAP,TS

36654-06J31

$16.40

13

CLAMP (L:45)

09404-06429

$1.88

14

CLAMP (L:145)

09407-14407

$2.84

15

CLAMP (L:170)

09407-17403

$4.79

16

CLAMP (L:125)

09407-14403

$2.31

17

CLIP

09409-06328

$3.00

18

WIRE,OIL PRESSURE SWITCH LEAD

36851-17K00

Unavailable

19

CLAMP (L:45)

09404-06429

$1.88

20

CLAMP (L:80)

09404-06030

Unavailable

21

SWITCH ASSY,STOP LAMP

37740-17K00

$28.63

22

SPRING

43232-17K00

$3.99

23

HOSE (5X8.2X60)

09352-50005-060

Unavailable

24

SWITCH ASSY,SIDE STAND This part replaces 37840-35F01.

37840-35F02

$47.38

25

BOLT (6X20)

01550-0620A

$2.01

26

HORN ASSY

38500-17K00

$75.55

27

BOLT

01550-0612A

$2.01
