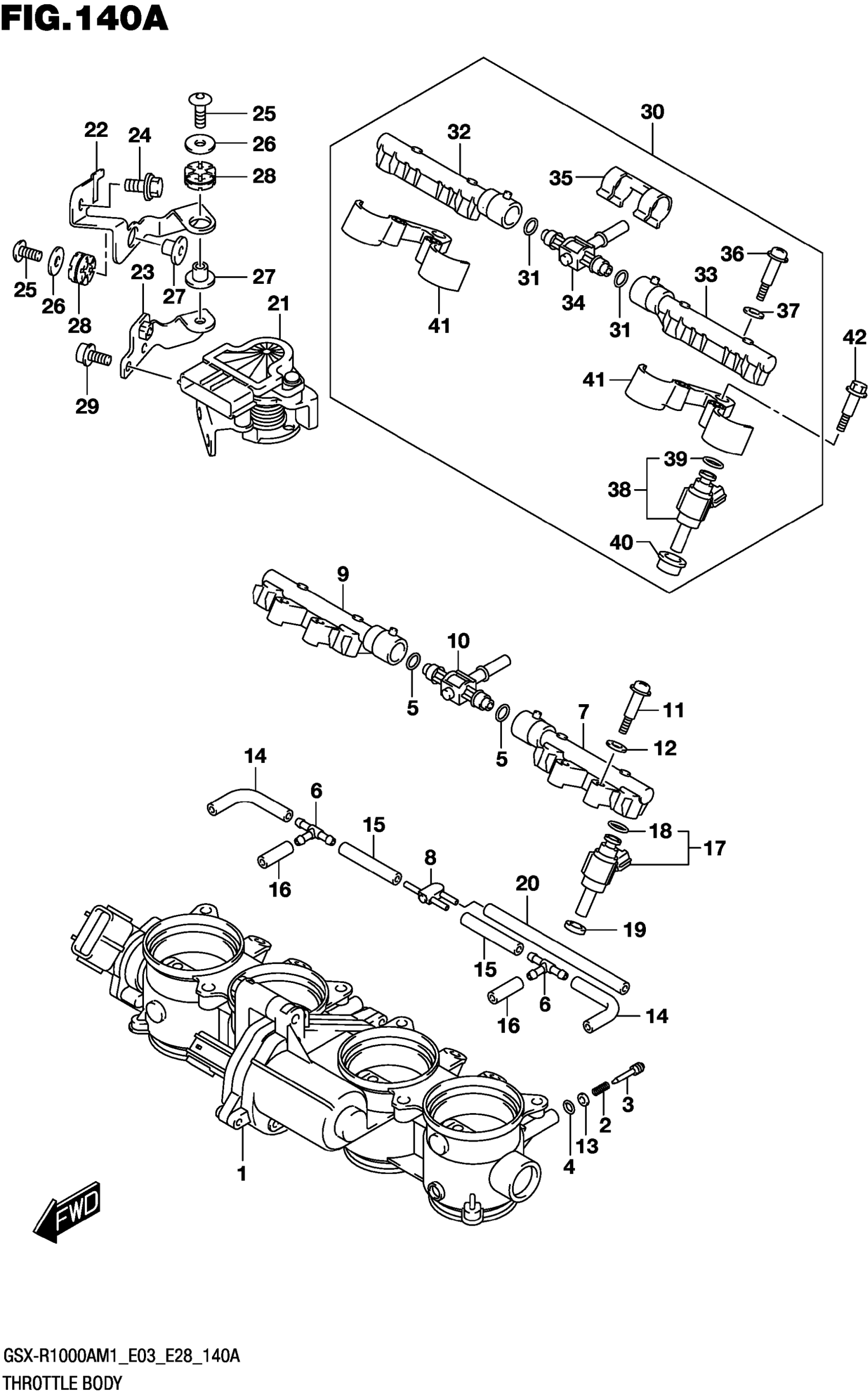

Suzuki GSX-R1000AM1 (2021) THROTTLE BODY (E03,E28) Diagram

#

Description
Price

1

BODY ASSY,THROTTLE This part replaces 13405-17K00.

13405-17K02

$1,424.25

2

SPRING,THROTTLE SCREW

13268-48700

$4.34

3

SCREW

13269-33E00

$11.10

4

O-RING

13295-29901

$4.34

5

O-RING

13374-32G00

$7.22

6

3WAY,VACUUM HOSE

13685-02FA0

$7.05

7

DELIVERY PIPE

13471-17K00

$70.80

8

JOINT

13471-18H00

$10.48

9

DELIVERY PIPE

13472-17K00

$70.80

10

NIPPLE ASSY

13473-17K00

$71.35

11

SCREW

13601-29G00

$3.43

12

PACKING

13602-29G01

$2.43

13

WASHER

13606-47A00

$3.28

14

HOSE (3.2X7.4X60)

13681-39F01-060

$3.90

15

HOSE (L:425)

13683-10F61

$17.10

16

HOSE (L:425)

13683-10F61

$17.10

17

INJECTOR ASSY

15710-04K00

$271.53

18

.O-RING

15717-58B00

$9.95

19

SEAL

15722-14J00

$11.36

20

.HOSE (3X7X600) This part replaces 09355-30705-600.

09355-30001-600

$8.56

21

BODY ASSY,ACCELERATOR

13500-17K00

$334.60

22

BRACKET,ACCEL SENSOR NO.1

13571-17K00

$13.47

23

BRACKET,ACCEL SENSOR NO.2

13572-17K00

$9.35

24

BOLT (6X12)

09116-06197

$2.71

25

BOLT

09139-06208

$3.25

26

.WASHER (6.5X20X1.6)

09160-06088

$1.65

27

SPACER (6.5X10X11.6)

09180-06319

$3.85

28

CUSHION

09320-10055

$4.50

29

BOLT

07120-0612B

$3.04

30

BODY ASSY,2ND INJECTOR

15900-17K00

$625.35

31

O-RING

13374-32G00

$7.22

32

DELIVERY PIPE

13471-17K00

$70.80

33

DELIVERY PIPE

13472-17K00

$70.80

34

NIPPLE ASSY

13473-17K00

$71.35

35

.CLIP

13474-17K00

$17.10

36

SCREW

13601-29G00

$3.43

37

PACKING

13602-29G01

$2.43

38

.INJECTOR ASSY

15710-17K10

$245.97

39

.O-RING

15717-58B00

$9.95

40

.INSULATOR

15722-17K00

$4.34

41

.BRACKET,2ND INJECTOR

15910-17K00

$51.42

42

BOLT

09111-06250

$8.90
