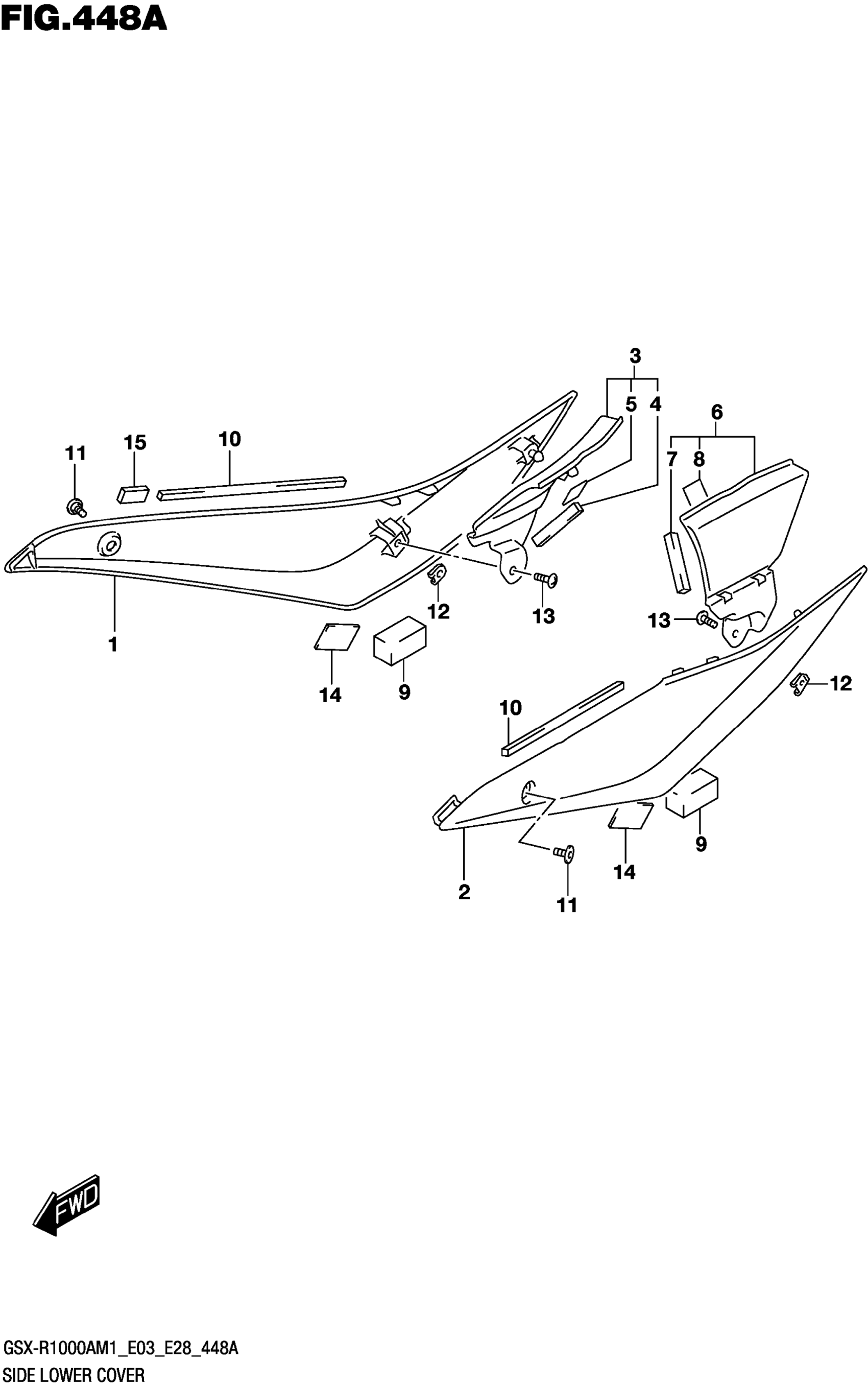

Suzuki GSX-R1000AM1 (2021) SIDE LOWER COVER (GSX-R1000A,GSX-R1000RA) Diagram

#

Description

Price

1

COVER,FRAME FRONT,R

47511-17K01

$34.65

2

COVER,FRAME FRONT,L

47611-17K01

$40.55

3

COVER,FRAME FR NO.2,R (BLACK)

47710-17K00-YKV

$82.03

4

CUSHION (8X50X8) | 0X8)

47122-17K00

$2.14

5

.CUSHION (20X20X1)

47123-17K00

$4.34

6

COVER,FRAME FR NO.2,L (BLACK)

47810-17K00-YKV

$82.03

7

CUSHION (8X50X8) | 0X8)

47122-17K00

$2.14

8

.CUSHION (20X20X1)

47123-17K00

$4.34

9

CUSHION,RR COMB (20X40X20)

33652-38F20

$2.61

10

CUSHION,FRAME COVER UPPER (L:

47121-17K00

$2.92

11

SCREW (5X13)

09139-05092

$2.25

12

NUT (M5)

09148-05045

$2.36

13

SCREW

03541-0516A

$1.49

14

FASTENER (33X25X2.6)

44572-13G00

$11.07

15

CUSHION (10X30X6) | )

33652-47F00

$3.70
