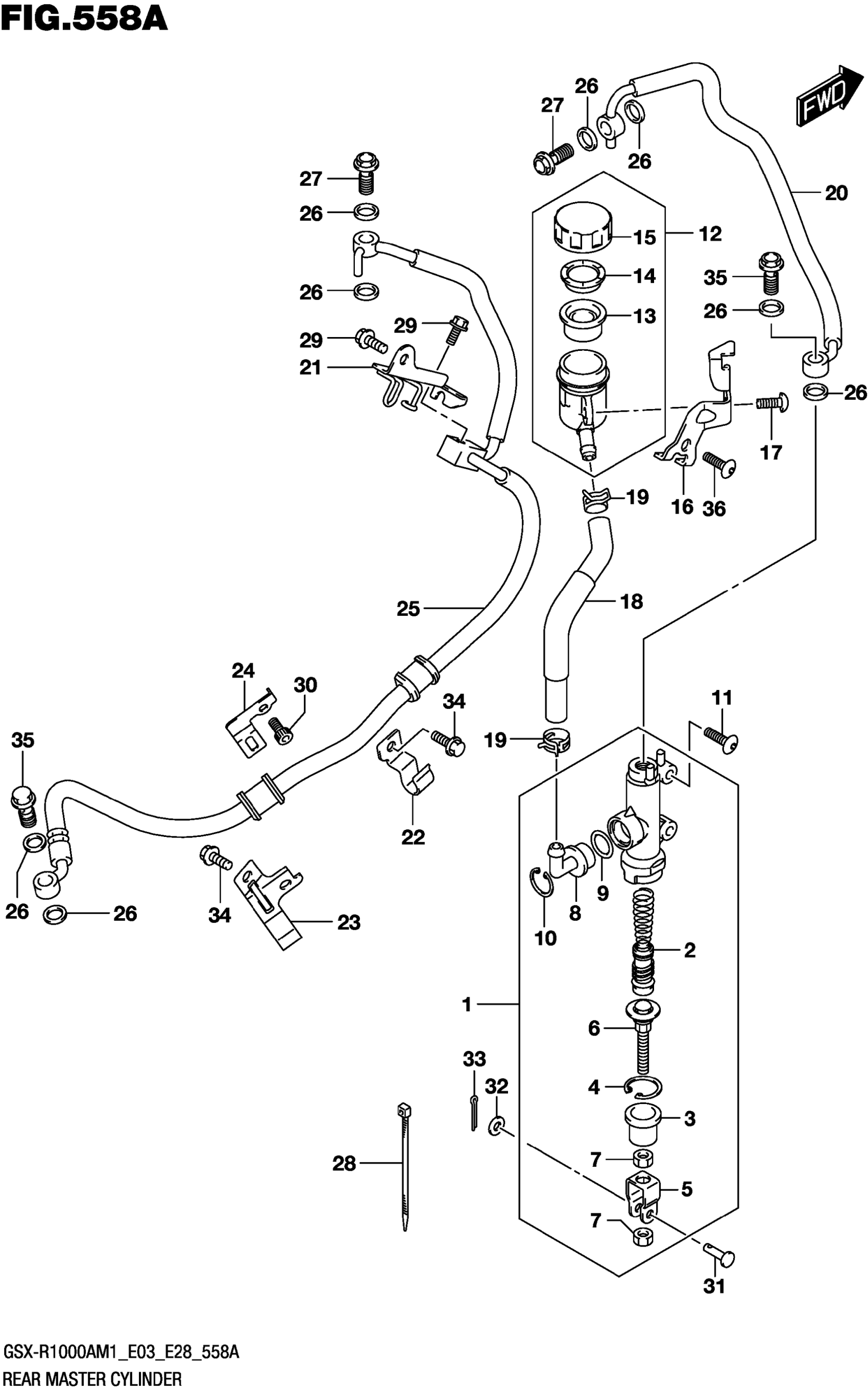

Suzuki GSX-R1000AM1 (2021) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-47H31

$247.57

2

.PISTON/CUP SET

69600-34810

$63.75

3

.BOOT

69691-04A00

$5.83

4

.CIRCLIP

69665-47H00

$5.65

5

.YOKE

69692-47H00

$15.75

6

.ROD,PUSH

69670-17K00

Unavailable

7

.NUT

69693-47H00

$2.80

8

.CONNECTOR

69672-00B20

$6.42

9

.O-RING

69686-34200

$2.80

10

.CIRCLIP

69674-00B20

$3.73

11

BOLT

09139-06224

$4.02

12

TANK ASSY,REAR RESERVOIR

69740-17K00

$35.85

13

.DIAPHRAGM

59667-33J00

$6.17

14

.PLATE

59668-33J00

$3.72

15

.CAP

69669-17K00

$8.25

16

BRACKET,RR RESERVOIR TANK

69750-17K00

$20.00

17

SCREW (6X16)

09139-06139

$2.92

18

HOSE,RR RESERVOIR TANK

69730-17K00

$17.33

19

CLIP

09401-12412

Unavailable

20

HOSE

69240-17K21

$65.42

21

CLAMP,RR BRAKE HOSE

69260-17K00

$22.65

22

CLAMP,RR BRAKE HOSE

69268-17K00

$9.07

23

CLAMP,RR BRAKE HOSE

69270-17K00

$12.80

24

CLAMP,RR BRAKE HOSE

69272-17K00

$5.13

25

HOSE

69480-17K31

$128.22

26

WASHER (10X15X1.5)

09161-10009

$1.83

27

UNION (10X1.25X22)

09360-10062

$5.81

28

CLAMP (L:145)

09407-14407

$2.80

29

BOLT

01547-0612A

$2.01

30

BOLT

01547-0612B

$1.22

31

PIN (6X18.2)

09200-06068

$3.71

32

WASHER

08322-0106A

$1.83

33

PIN

04111-2015A

$1.22

34

BOLT

01547-0612B

$1.22

35

UNION This part replaces 09360-10042.

09360-10062

$5.81

36

SCREW (6X16)

09139-06214

$2.62
