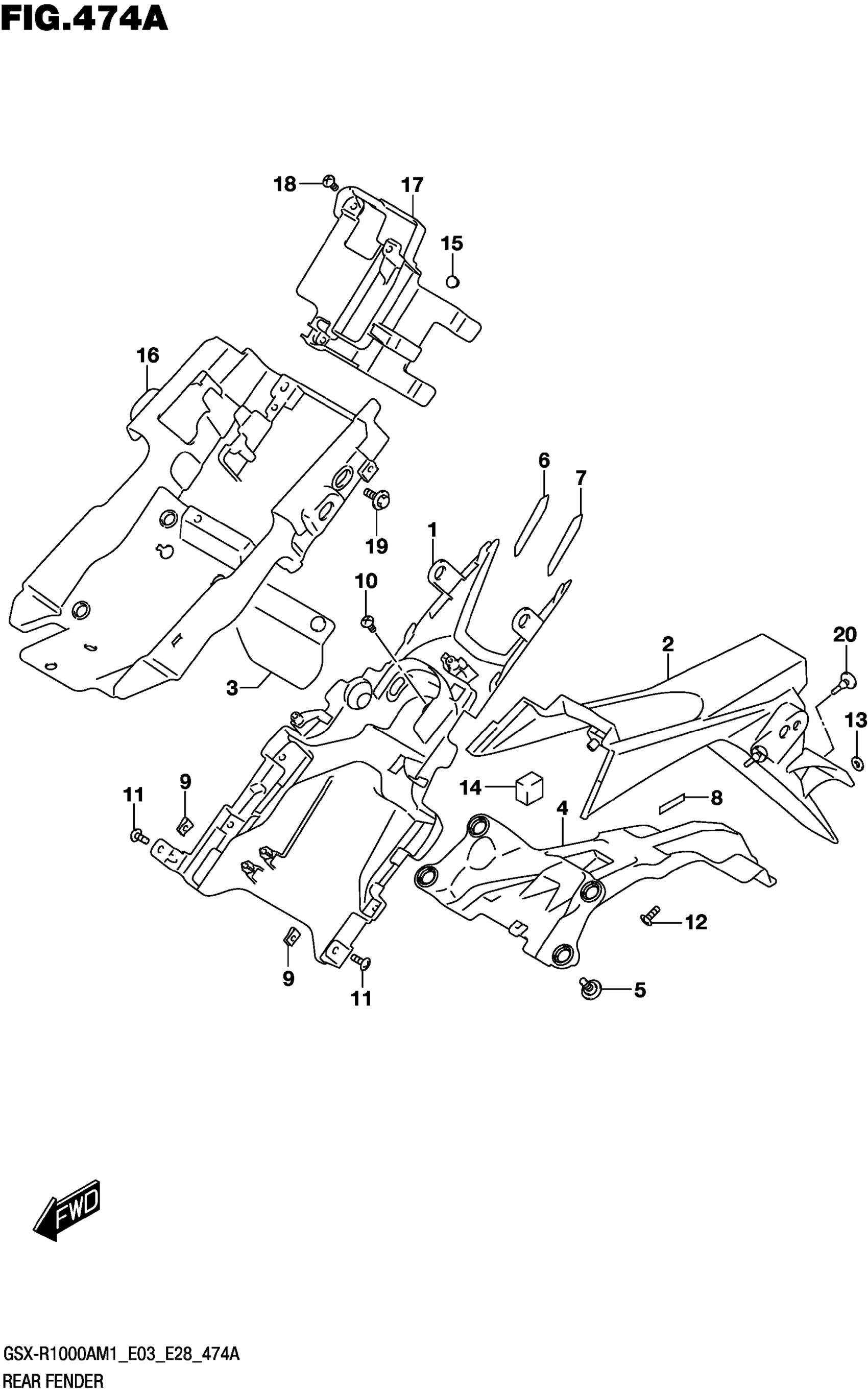

Suzuki GSX-R1000AM1 (2021) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR FRONT

63111-17K00

$30.67

2

FENDER,REAR REAR

63113-17K00

$35.92

3

MUDGUARD,REAR FENDER

63114-17K00

$9.73

4

FENDER,REAR REAR INNER

63116-17K00

$56.87

5

BOLT,REAR FENDER REAR

63117-17K00

$2.37

6

TAPE,REAR COMB,R

63121-17K00

$3.17

7

TAPE,REAR COMB,L

63122-17K00

$3.17

8

TAPE (6X25X0.13)

94443-06G00

$3.25

9

NUT (M5)

09148-05038

$1.97

10

SCREW

03541-0512A

$1.49

11

SCREW

03541-0516A

$1.49

12

SCREW

03541-0516B

$1.78

13

WASHER

08322-0106A

$1.84

14

CUSHION,RR LAMP (17X17X12)

33652-05G20

$2.53

15

CUSHION,SEAT MOUNT

45148-27J00

$17.72

16

HOLDER,BATTERY

47431-17K00

$28.28

17

HOLDER,ELECTRIC PARTS

47441-17K10

Unavailable

18

BOLT (6X18)

09111-06081

$4.09

19

SCREW

03541-0516A

$1.49

20

CUSHION

09321-06026

$2.92
